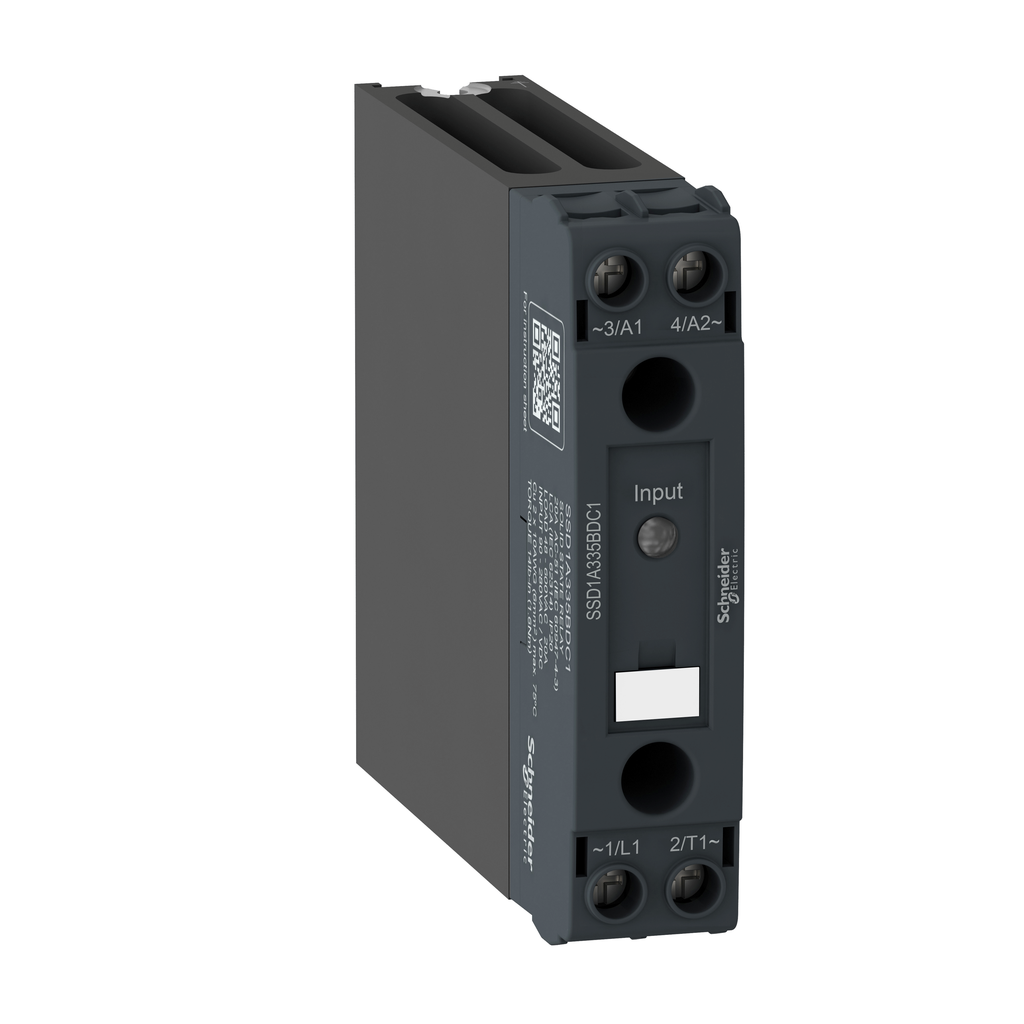

Schneider Electric SSD1A335BDC1 SQUARED 35A DIN rail mount relay

Product Description

The Schneider Electric SSD1A335BDC1 is a solid state DIN rail mount relay designed for efficient switching in various applications. This relay features a power rating of thirty-five amperes and operates with zero voltage switching for enhanced control. It mounts securely on a thirty-five millimeter DIN rail and includes a built-in heat sink for effective thermal management.

• Rated for input voltages from four to thirty-two VDC.
• Operates with load voltages ranging from forty-eight VAC to six hundred VAC.
• Compliance with international standards such as UL and CSA.

Product Highlights

The SSD1A335BDC1 is suitable for packaging, textile, and heating applications. It is equipped with transient overvoltage protection and an LED indicator for input voltage status.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: SSD1A335BDC1

Technical Specifications

• Input Control Voltage: 4VDC to 32VDC
• Output Voltage: 48VAC to 600VAC
• Rated Current: 35A
• Number of Phases: 1
• Dimensions: 22.5mm width, 116.6mm depth, 93.2mm height
• Weight: 0.298kg
• Heat Sink Rating: IP20
• Compliance Standards: EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13
