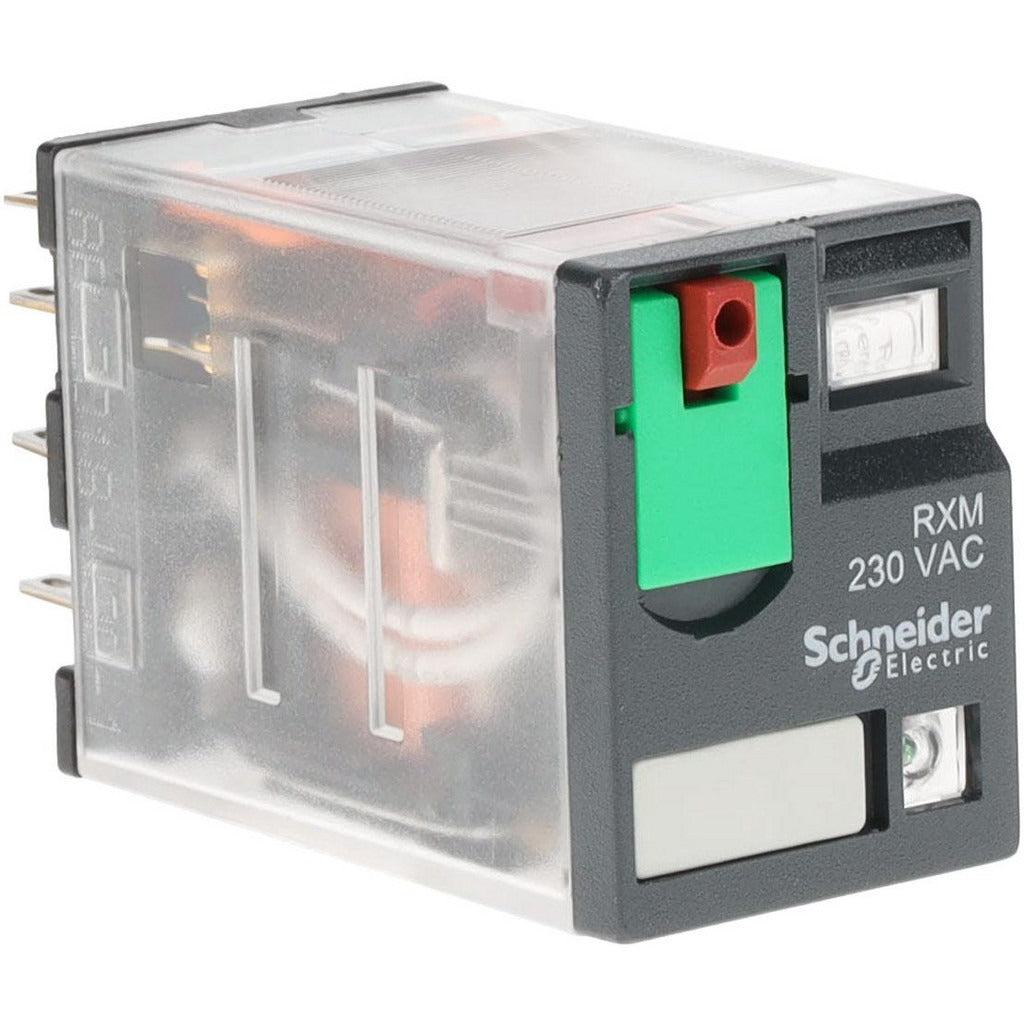

Schneider Electric RXM4AB2P7 Plug-in Relay 1500 Va 4CO

Product Description

The SCHNEIDER ELECTRIC RXM4AB2P7 is an electromechanical plug-in general purpose relay rated at 1,500 VA, designed for control panel and automation applications across HVAC, electrical, and industrial systems. It features a 4CO (4 changeover) contact configuration, making it suitable for switching multiple circuits from a single coil. The coil operates at 230 VAC at 50/60 Hz, and contact ratings include 3 amps at 250 VAC or 28 VDC, 6 amps at 250/277 VAC or 28 VDC, and 8 amps at 30 VDC. Its plug-in terminal type simplifies installation and replacement in relay sockets.

The RXM4AB2P7 is commonly used in commercial and residential control panels, HVAC equipment, building automation systems, and general electrical switchgear. Its compact footprint at 1.8 inches in length, 1.1 inches in width, and 0.8 inches in height allows it to fit in high-density control enclosures. Licensed electricians and HVAC controls technicians typically install this relay as part of larger control circuits where multiple isolated switching paths are required from a single coil signal.

Key Features

• 1,500 VA power rating for robust general purpose switching
• 4CO contact configuration enables four independent changeover switching paths
• Plug-in terminal type allows fast, tool-free relay replacement in compatible sockets
• 230 VAC coil at 50/60 Hz supports standard North American and international panel voltages
• Multiple contact current ratings: 3 A at 250 VAC, 6 A at 250/277 VAC, and 8 A at 30 VDC
• Meets CSA, UL 508, EN/IEC 61810-1, RoHS, REACH, and GOST certifications

Compatibility

Designed as an OEM-style plug-in general purpose relay for use in relay sockets compatible with the RXM series form factor. Consult panel documentation to confirm socket and coil voltage compatibility before ordering.

Installation Notes

Installation should be performed by a licensed electrician or qualified controls technician. De-energize and lock out the control panel before removing or inserting the relay. Verify the socket coil voltage matches the 230 VAC rating of this relay before energizing. Work should comply with applicable NEC requirements for control circuit wiring and panel construction.
