Schneider Electric RXM4AB2JD miniature plug in 6A (each)

Product Description

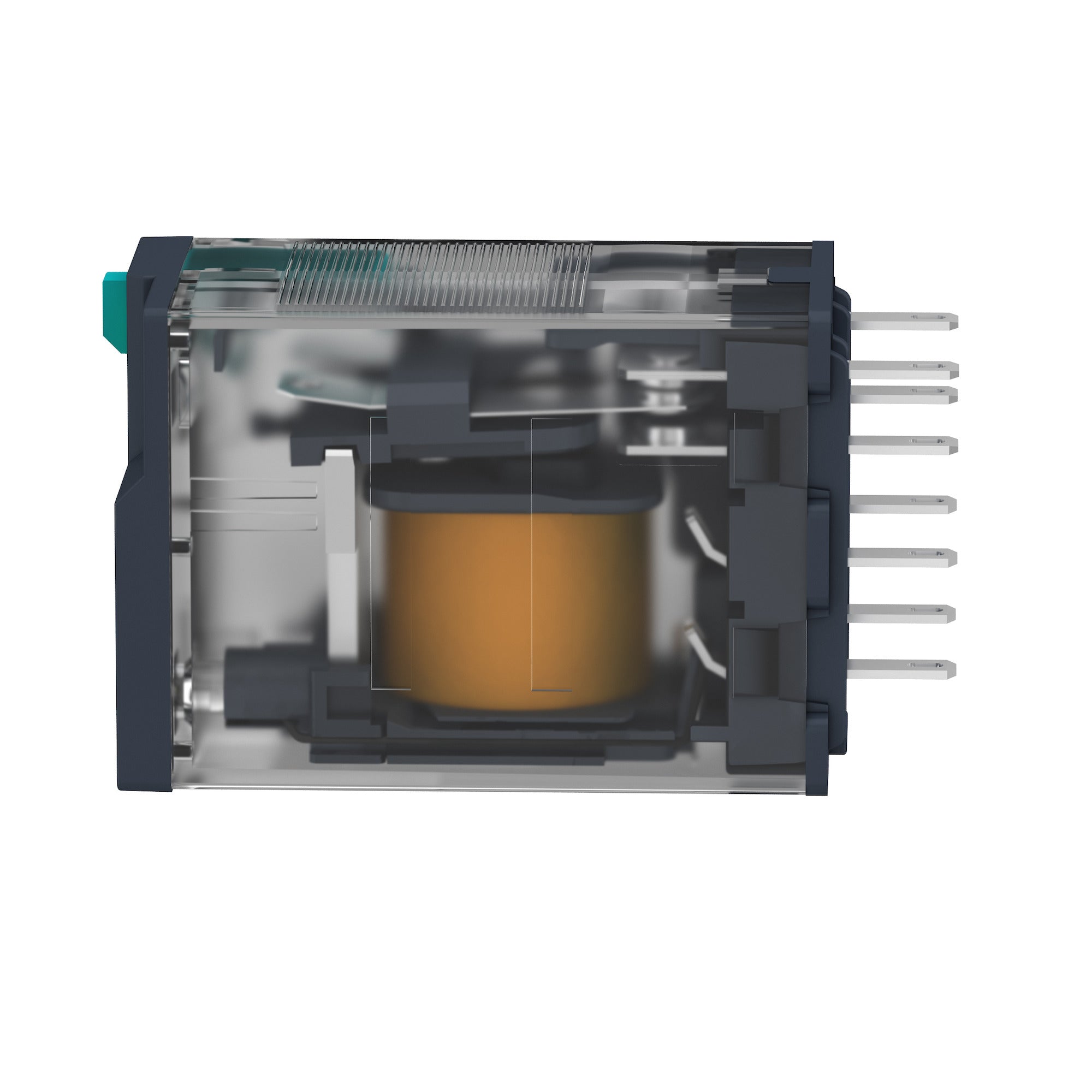

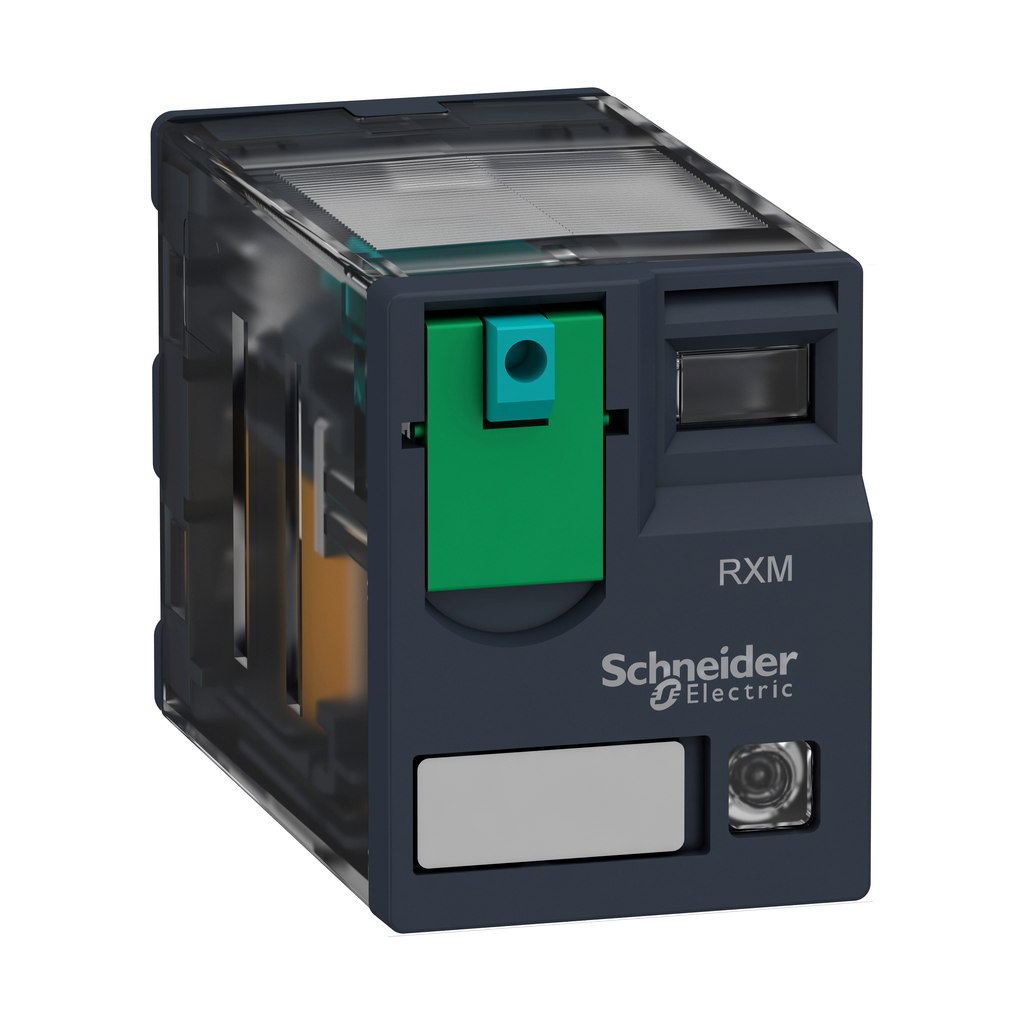

The Schneider Electric RXM4AB2JD is a miniature plug-in relay designed for use with RXZE sockets. This relay operates at a control circuit voltage of twelve volts DC and has a current rating of six amps. This model features a lockable test button and a mechanical indicator for the contact status. The test button can be activated briefly and locked for testing. An orange flag indicates the relay contact status, and a green LED illuminates when the relay is active. The RXM4AB2JD is suitable for applications in industrial machines, HVAC, automation control panels, and more.

• Control circuit voltage of twelve volts DC
• Six-amp current rating
• Lockable test button and mechanical indicator

Product Highlights

This relay is built for reliability and meets international standards such as IEC, CE, UL, and RoHS. It is designed for simple and complex automation systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RXM4AB2JD
• Operating Temperature: -40 to 55 degrees C
• Storage Temperature: -40 to 85 degrees C
• Contact Configuration: 4 C/O
• Line Rated Current: 6 A
• Weight: 0.08 lb
• Height: 79 mm
• Country of Origin: Indonesia
