Schneider Electric RXM4AB2FD SQUARED RXM4AB2FD miniature plug in 6A (Each)

Product Description

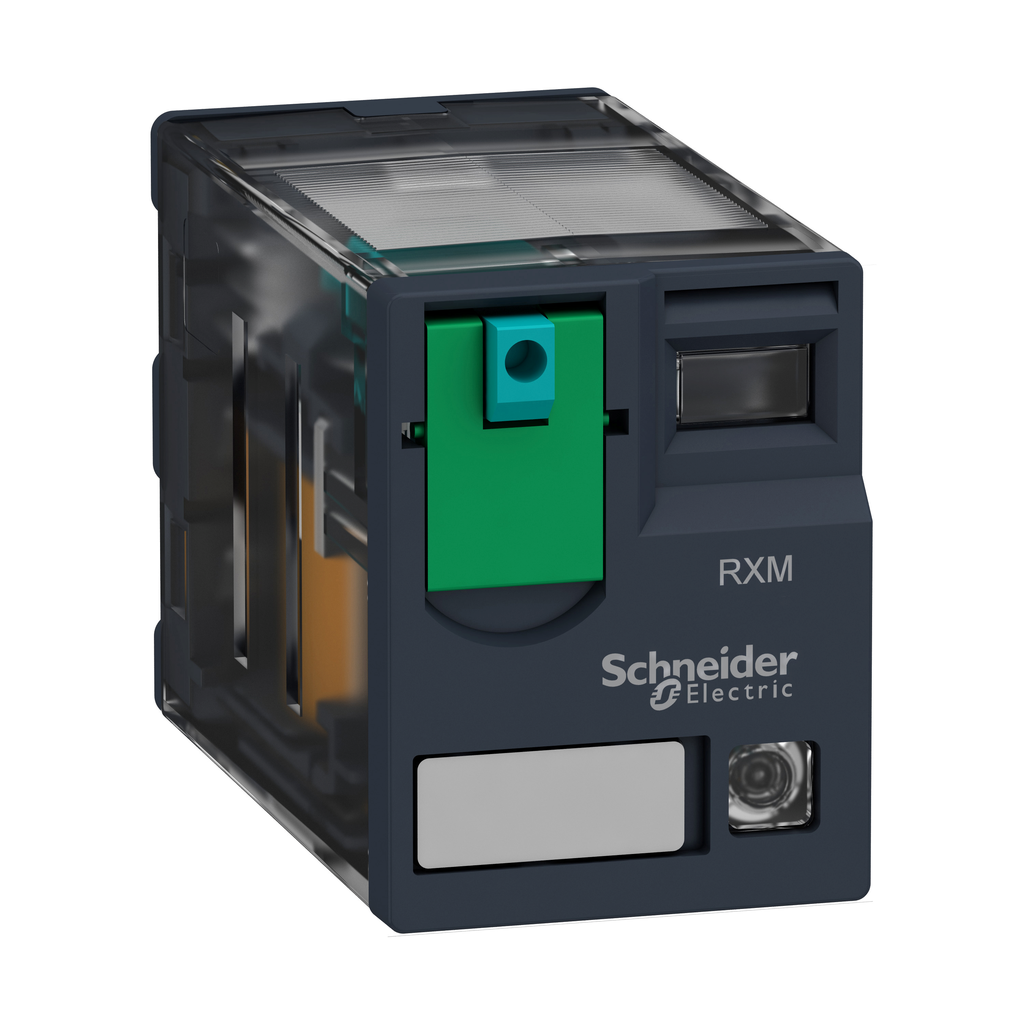

Schneider Electric offers the RXM4AB2FD, a miniature plug-in relay designed for use with RXZE sockets. This relay features a contact configuration of four changeover (C/O) contacts and operates at a rated current of six amperes with a control circuit voltage of one hundred ten volts direct current. It includes a lockable test button and mechanical indicator for showing contact status. The test button is activated by pressing the blue button and can be locked into place by flipping a green lever. An orange flag provides a visual indication of the contact status next to the test button, while a green LED signals when the relay is active. The LED visibility ensures clear status updates in various lighting conditions.

• Designed for industrial applications including HVAC, automation, and motor control.
• Compliant with multiple international standards, ensuring reliability and safety.
• Requires RXZE socket for installation, suitable for various mounting options.

Product Highlights

This product is versatile for use in machines, packaging, and medical equipment.

Product Information

Standard Information

• Catalog Number: RXM4AB2FD
• Manufacturer: Schneider Electric

Technical Specifications

• Control Type: Lockable test button
• Operating Temperature: -40 to 55 degrees Celsius
• Storage Temperature: -40 to 85 degrees Celsius
• Contact Rating: B300
• Weight: 0.08 lb
• Height: 79 mm
• Standard Compliance: IEC, CE, UL, CSA
• Country of Origin: Indonesia
