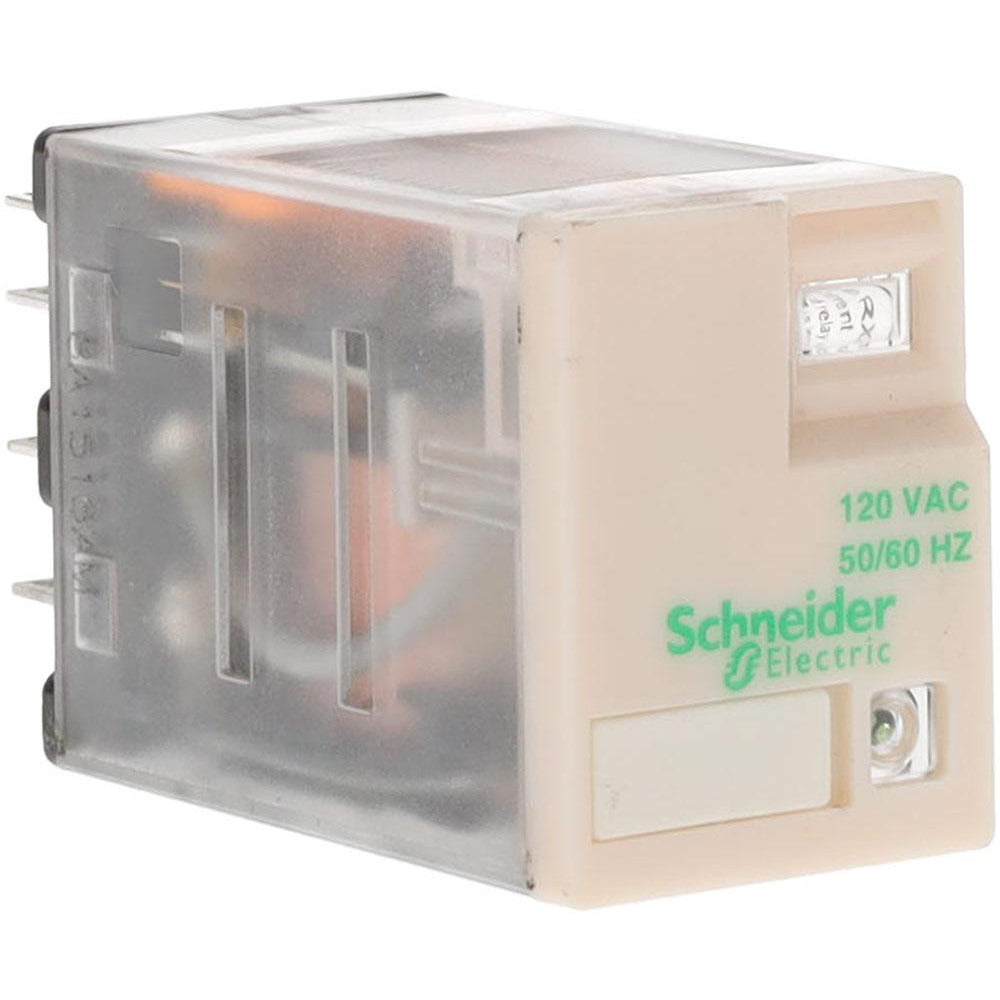

Schneider Electric RXM2AB3F7 Plug-in Relay 3000 Va

Product Description

The SCHNEIDER ELECTRIC RXM2AB3F7 is an electromechanical plug-in general purpose relay rated at 3,000 VA. It features a 2CO (double pole double throw) contact form and operates on a 120 VAC coil at 50/60 Hz. The relay is designed for switching loads up to 12 amps at 250/277 VAC or 28 VDC, and up to 6 amps at 250 VAC or 28 VDC. Its plug-in terminal type allows for quick installation and easy field replacement in control panels and relay sockets. Electricians and controls technicians install this relay in industrial and commercial control circuits, automation panels, and HVAC control applications.

The RXM2AB3F7 is suited for both commercial and light industrial environments where a compact, socketed relay is needed for switching control circuits. Its small footprint makes it a practical fit inside crowded control enclosures and panel boards. The plug-in design allows removal and replacement without rewiring the socket base, reducing downtime during service calls. This relay is commonly used in building automation, machine control, and HVAC sequencing circuits.

Key Features

• 3,000 VA power rating for reliable load switching
• 2CO contact form provides two independent switching circuits in one relay body
• 120 VAC coil at 50/60 Hz for standard North American and international control voltages
• 12-amp contact rating at 250/277 VAC and 28 VDC for versatile load handling
• Plug-in terminal type enables fast replacement without rewiring
• Meets CSA, UL 508, EN/IEC 61810-1, RoHS, and REACH standards

Compatibility

Designed as an OEM-style plug-in general purpose relay for use with compatible relay socket bases accepting 2CO plug-in relays rated for 120 VAC coil operation.

Installation Notes

Installation should be performed by a licensed electrician or qualified controls technician. De-energize and lock out the control panel before removing or inserting the relay. Verify the socket base contact and coil voltage ratings match this relay before installation. Follow applicable NEC requirements for control circuit wiring and enclosure ratings.
