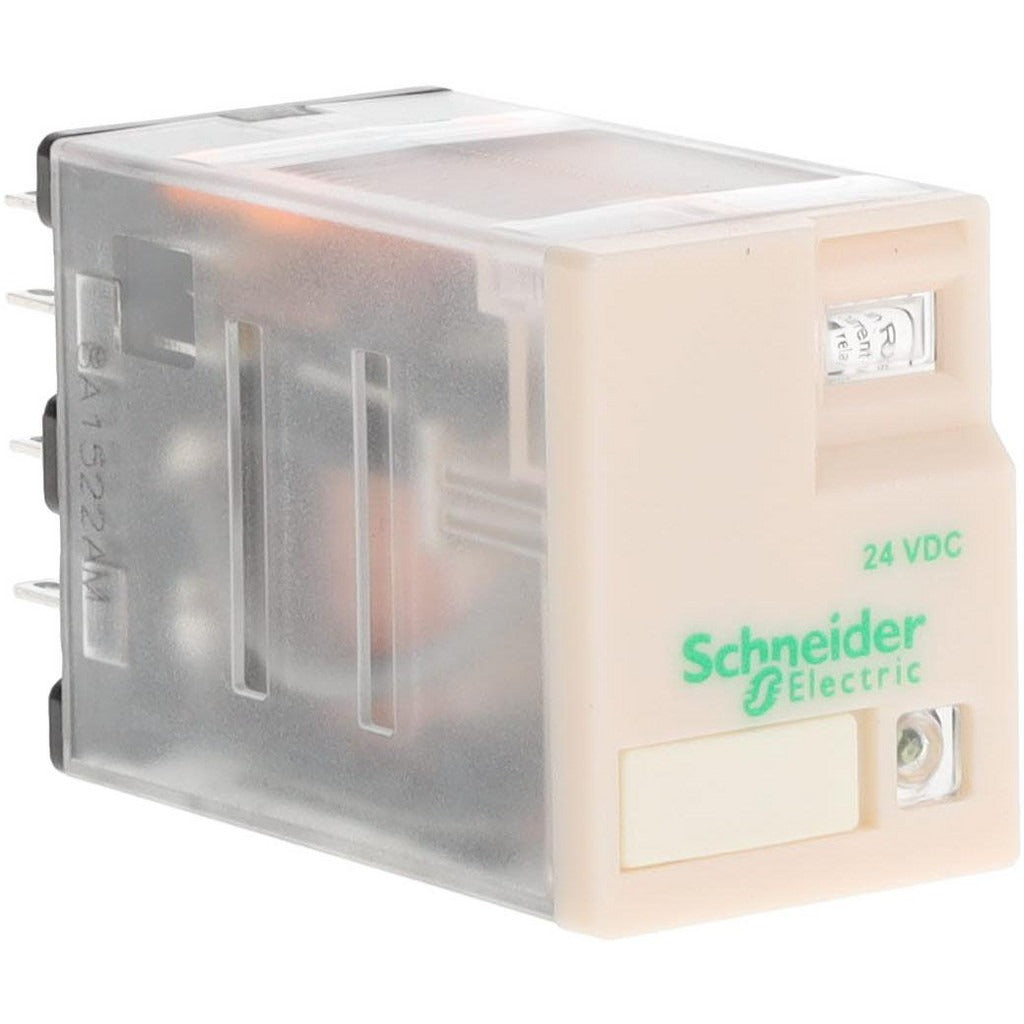

Schneider Electric RXM2AB3BD Plug-in Relay 3000 Va 24 Vdc

Product Description

The SCHNEIDER ELECTRIC RXM2AB3BD is an electromechanical plug-in general purpose relay rated at 3,000 VA, designed for control circuit switching in industrial and commercial electrical systems. It features a 2CO (double changeover) contact form and operates on a 24 VDC coil voltage. Switching capacity is 12 amps at 250/277 VAC and 28 VDC for standard load applications, and 6 amps at 250 VAC and 28 VDC for higher-frequency switching duty. Licensed electricians and industrial controls technicians install this relay in panel boards, control panels, and automation enclosures where reliable low-voltage signal switching is required.

This relay is suited for residential, commercial, and light industrial control applications where a compact plug-in form factor is needed. Typical install scenarios include HVAC control panels, motor control centers, machine automation circuits, and building automation systems. Its plug-in terminal interface allows quick replacement without rewiring the socket base, reducing service time during maintenance. The 2CO contact configuration supports both normally open and normally closed circuit paths within a single device, making it versatile for ladder-logic and relay-logic control schemes.

Key Features

• 3,000 VA power rating for reliable switching in demanding control circuits
• 24 VDC coil voltage compatible with standard low-voltage control systems
• 2CO double changeover contacts provide both NO and NC switching in one relay
• 12 A rating at 250/277 VAC and 28 VDC for general load switching
• Plug-in terminal design allows fast field replacement without rewiring
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 61810-1, RoHS, and REACH compliance standards

Compatibility

Designed as an OEM-style plug-in general purpose relay for use with compatible relay socket bases in commercial and industrial control panel applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and any applicable local codes. De-energize and lock out the control panel before inserting or removing the relay from its socket base. Verify coil voltage and contact rating match the circuit requirements before energizing. Do not exceed the rated switching current or voltage for the contact form in use.
