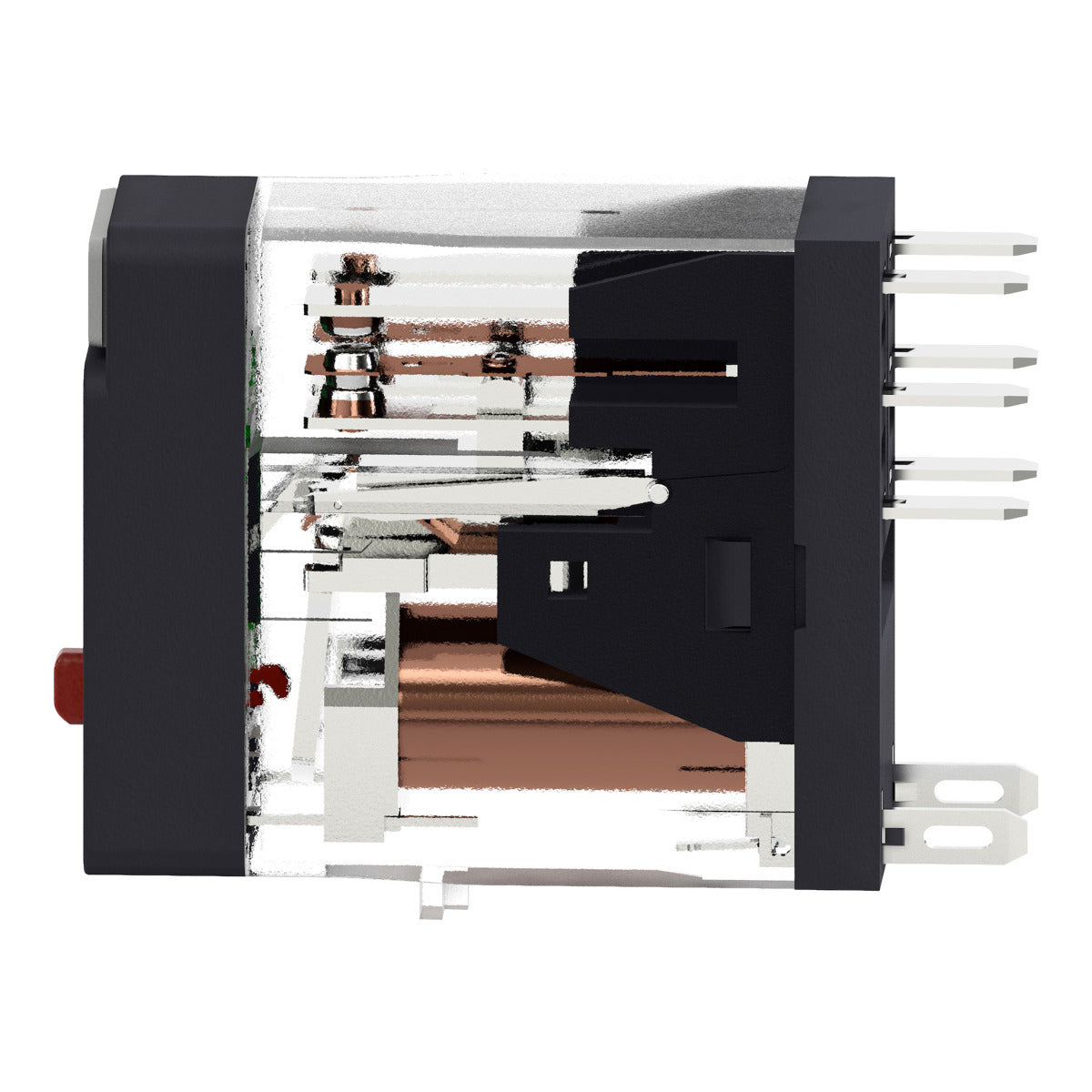

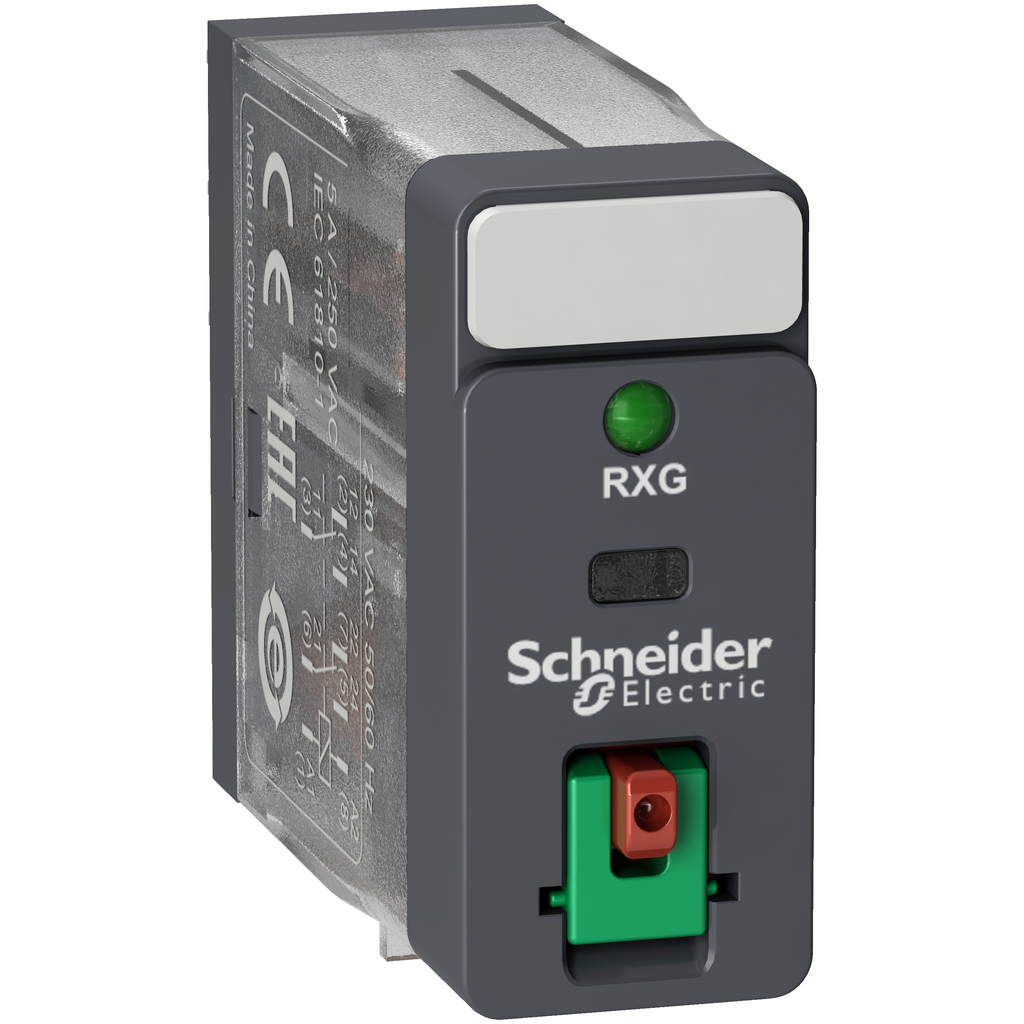

Schneider Electric RXG22F7 SQD RXG22F7 interface plug in relay 120V AC

Product Description

Schneider Electric RXG22F7 is a plug-in relay designed for control applications. It features a coil control voltage of 120V AC and includes 2 changeover contacts, which are double pole double throw with a current rating of 5 Amperes. The design allows for a high number of contacts suited for applications requiring higher current ratings, while maintaining a compact footprint.

• Coil control voltage of 120V AC
• DPDT contacts rated at 5A

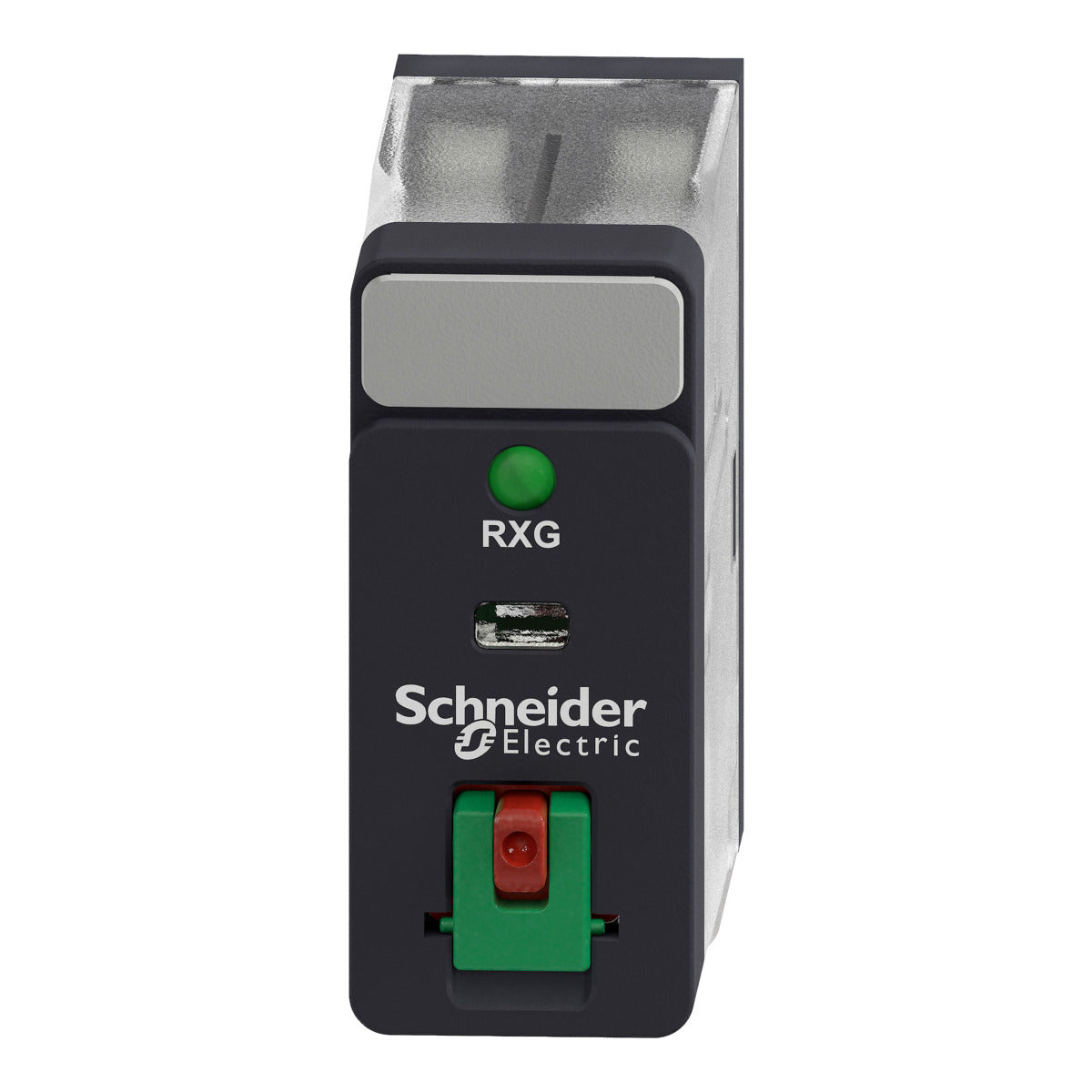

• Lockable test button with LED status indicator

Product Highlights

This relay provides easy installation using faston pin terminals, enhancing mounting flexibility and reliability in various environments. Its LED status display ensures visibility in different lighting conditions, making it suitable for hard-wired logic automated systems and industrial programmable logic controllers (PLCs).

Product Information

Standard Information

• Product ID: 1574534
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: RXG22F7
• Weight: 0.04 lb
• Amperage: 5 Amp (250V AC, 30V DC)
• Standard: CSA C22.2 No 14, IEC 61810-1, UL 508
• Resistance: 10%
• Contact Material: Silver Alloy
• Operating Cycles: <= 1800 Cycles/h under load, <= 18000 Cycles/h no-load
• Contact Configuration: 2 C/O
