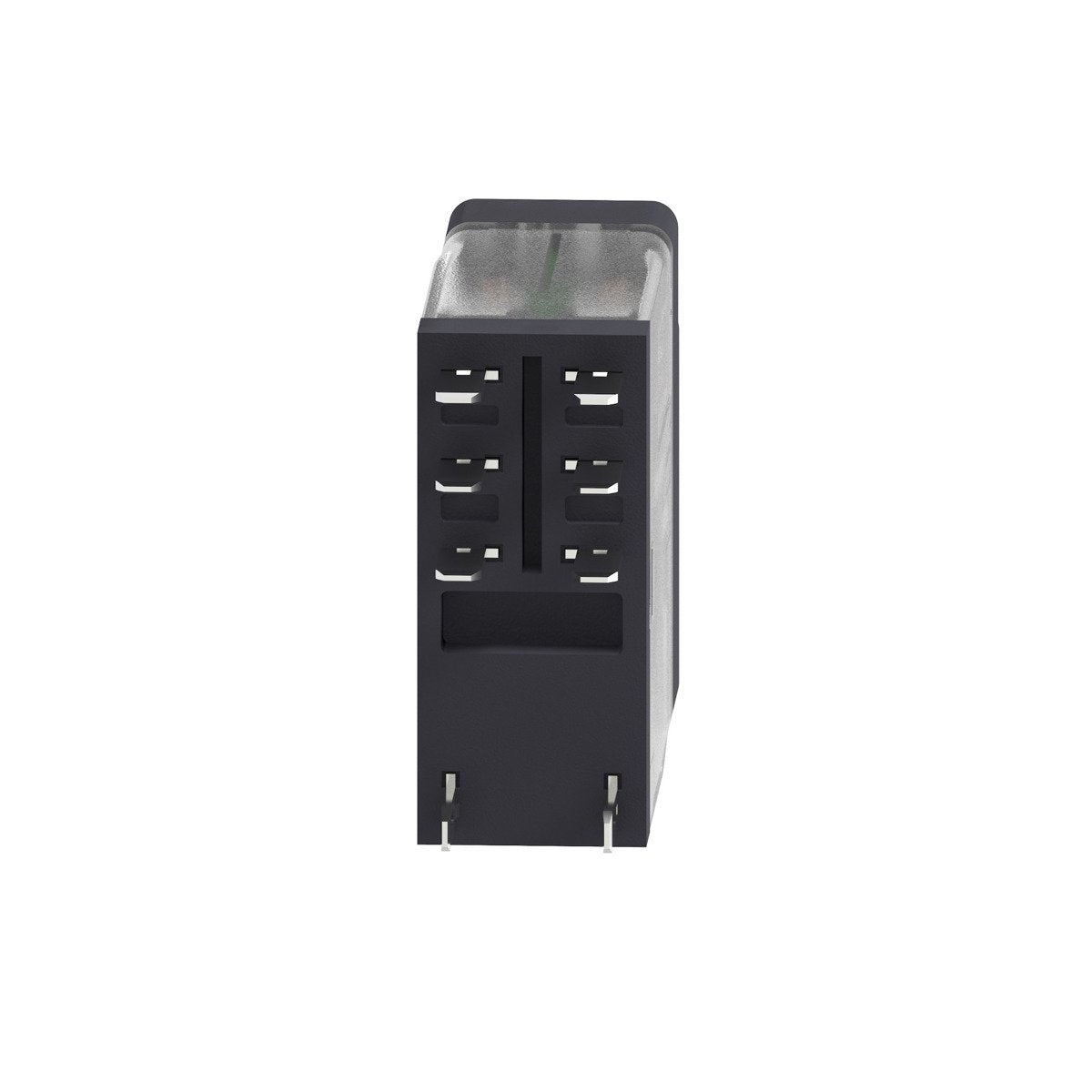

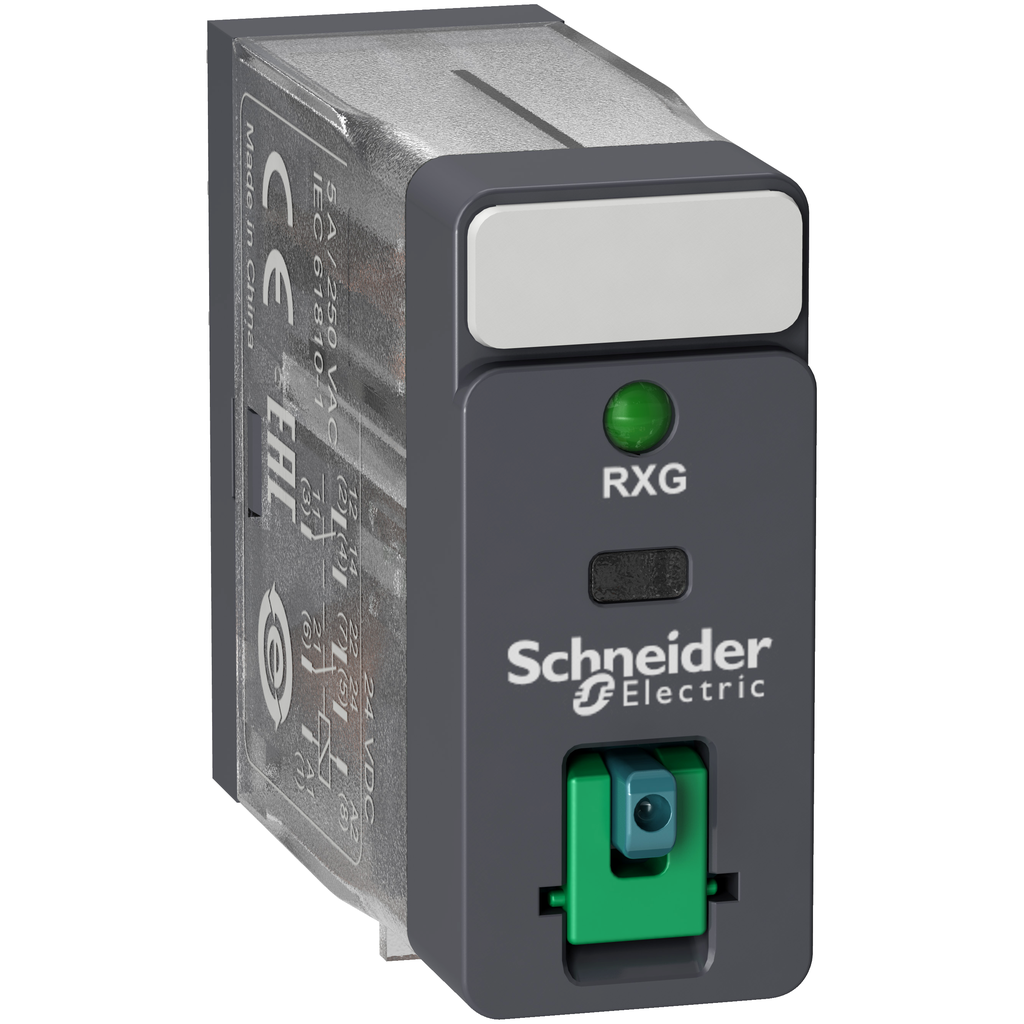

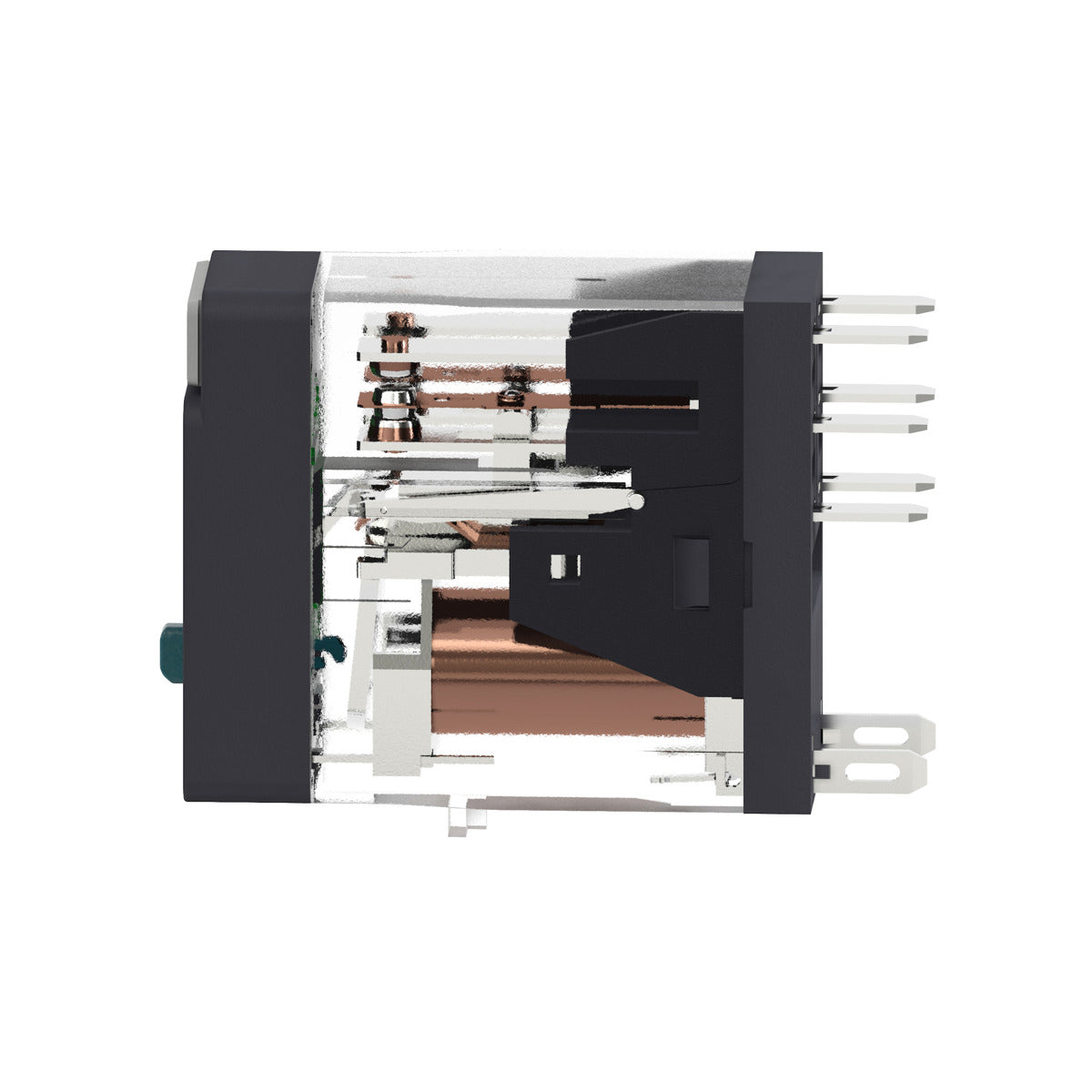

Schneider Electric RXG22BD SQD RXG22BD Interface Plug in Relay 24V DC

Product Description

This Schneider Electric RXG22BD plug-in relay socket operates at a coil control voltage of twenty-four volts DC. It features two changeover contacts with a double pole double throw configuration, rated at five amps. This relay supports a versatile range of contact configurations, catering to high current applications while maintaining a compact design.

• Designed for high reliability and efficient performance.
• Features a lockable test button and an LED indicator for clear status signaling.
• Faston pin terminal enables quick and secure mounting.

Product Highlights

The RXG22BD relay is suitable for use in automated systems where it complements the capabilities of industrial programmable logic controllers (PLCs). It is ideal for hard-wired logic setups and helps minimize enclosure sizes while ensuring system reliability.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: RXG22BD

Technical Specifications

• Weight: 0.04 lb
• Amperage: 5 Amp 250 V AC, 5 Amp 30 V DC
• Standard Compliance: CSA C22.2 No 14, IEC 61810-1, UL 508
• Contact Configuration: 2 C/O
• Operating Cycles: <= 1800 cycles/hour under load; <= 18000 cycles/hour no-load
• Country of Origin: United States
• Certifications: CE, CSA, DNV-GL, EAC, UL
