Schneider Electric RSB2A080U7 SQUARED interface plug-i 240V AC (1 each)

Product Description

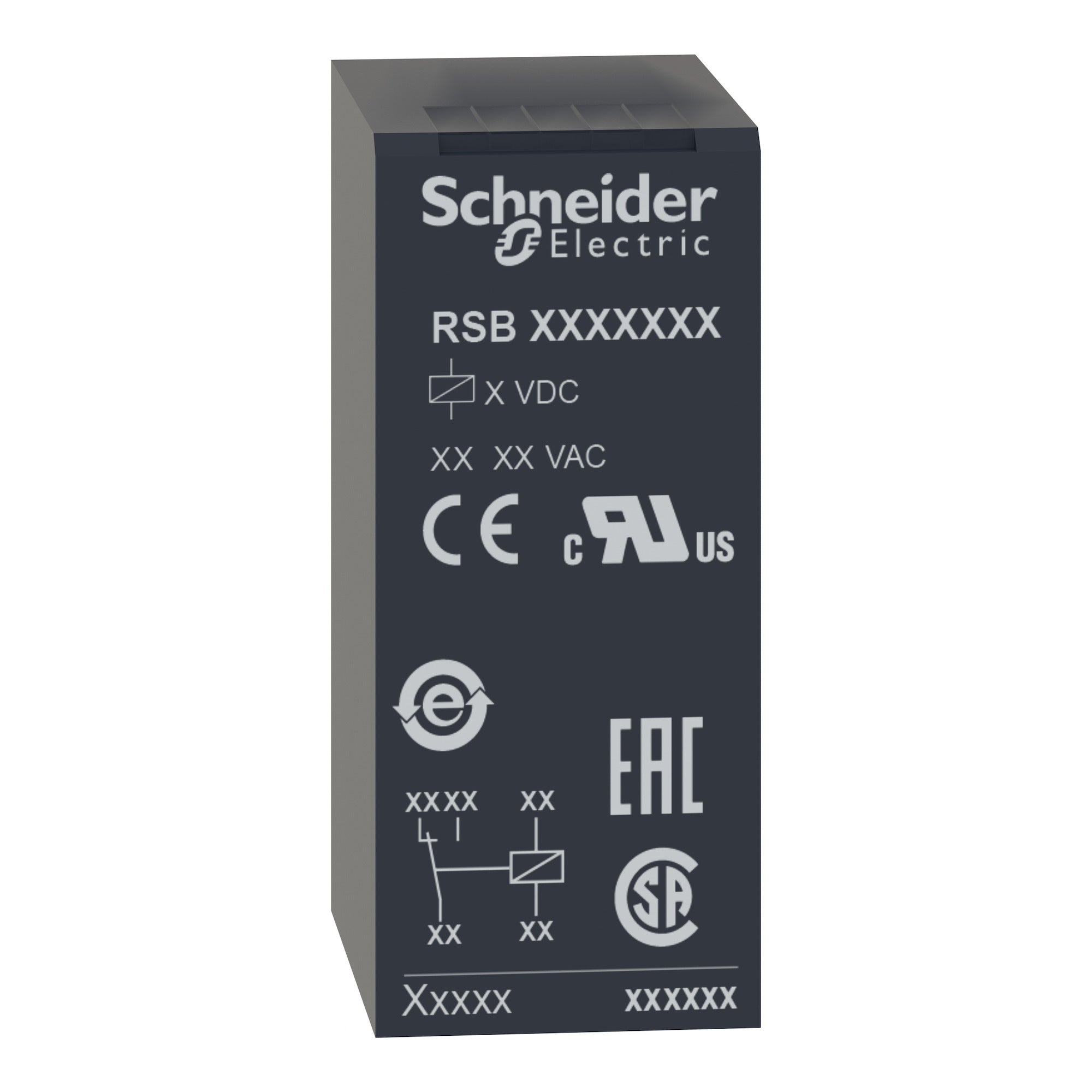

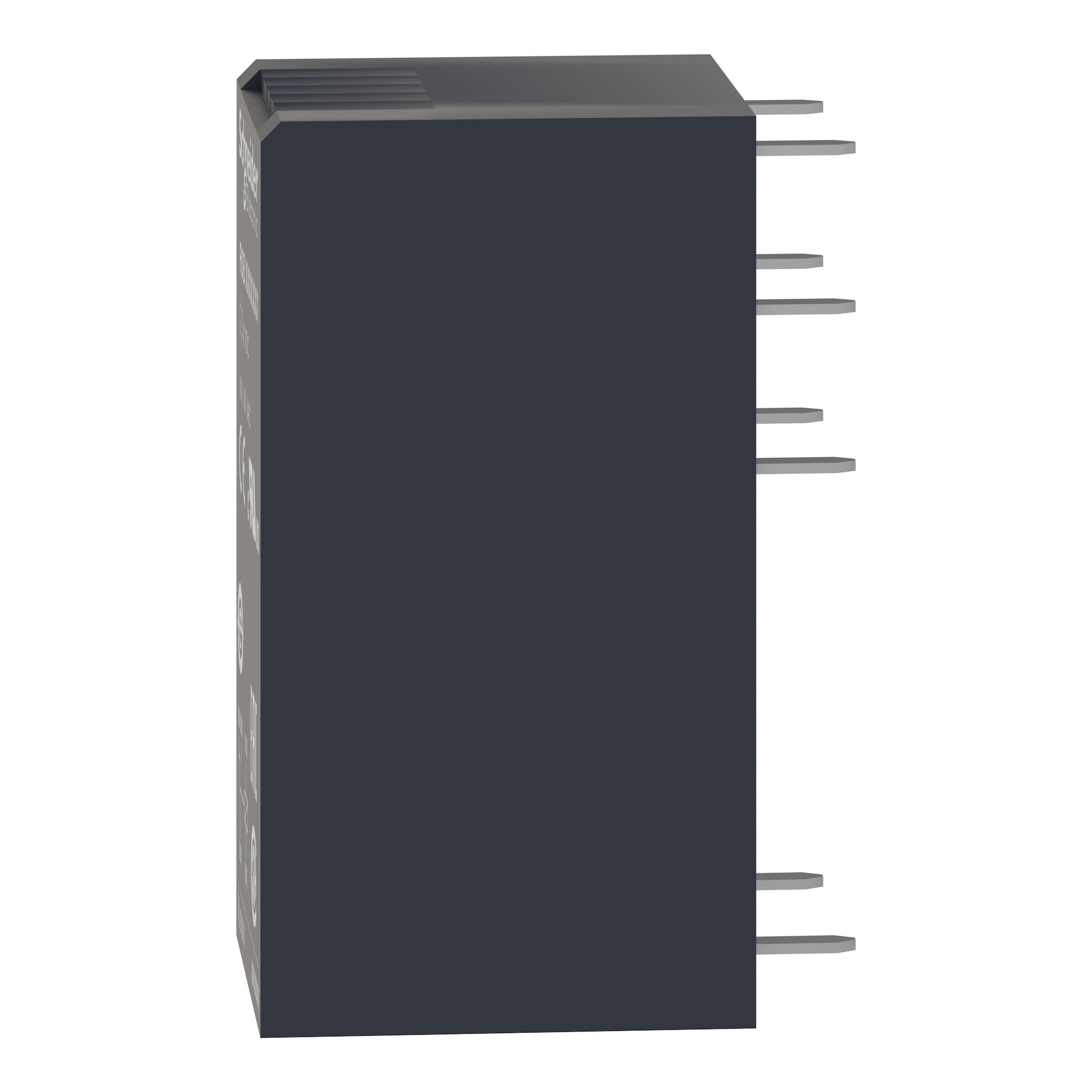

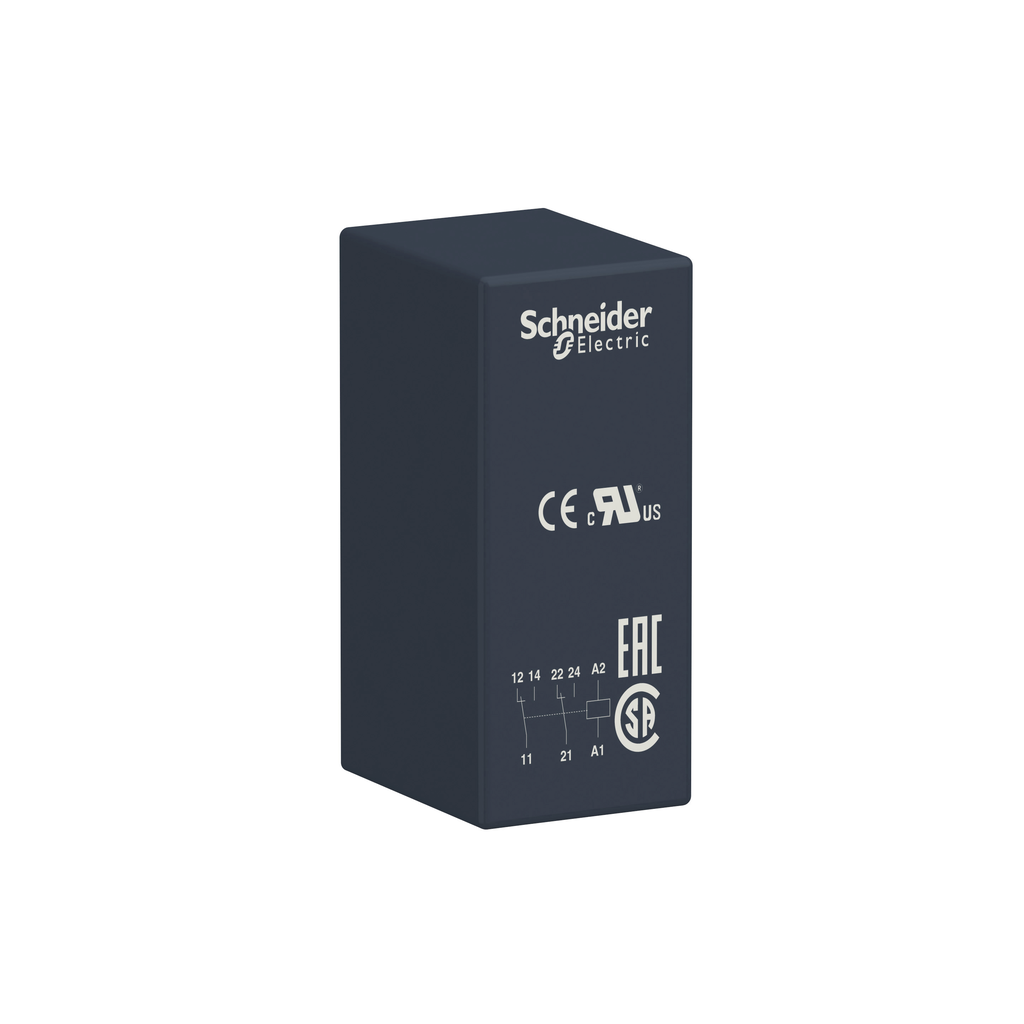

The Schneider Electric RSB2A080U7 is an interfacing plug-in relay with a control coil voltage of two hundred forty volts AC. This relay features two changeover contacts with a double pole, double throw configuration rated at eight amps. It is designed for easy installation and maintenance, fitting into various mounting locations, contributing to reduced enclosure sizes while enhancing machine reliability. The product conforms to IP40 rating and is equipped with a transparent cover, which allows operators to visually inspect contact statuses.

• Control coil voltage of 240V AC.
• Rated for 8A with double pole double throw contacts.
• IP40 rated with a transparent cover for status inspection.

Product Highlights

This product is ideal for industrial automation, providing reliable switching in relay applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: RSB2A080U7

Technical Specifications

• Voltage: 240V AC
• Amperage: 8A
• Contact Configuration: 2 C/O
• Enclosure Rating: IP40
• Operating Temperature: -40 to 158F
• Country of Origin: Austria
• Warranty Length: 18 months
• GTIN: 03389110256635
