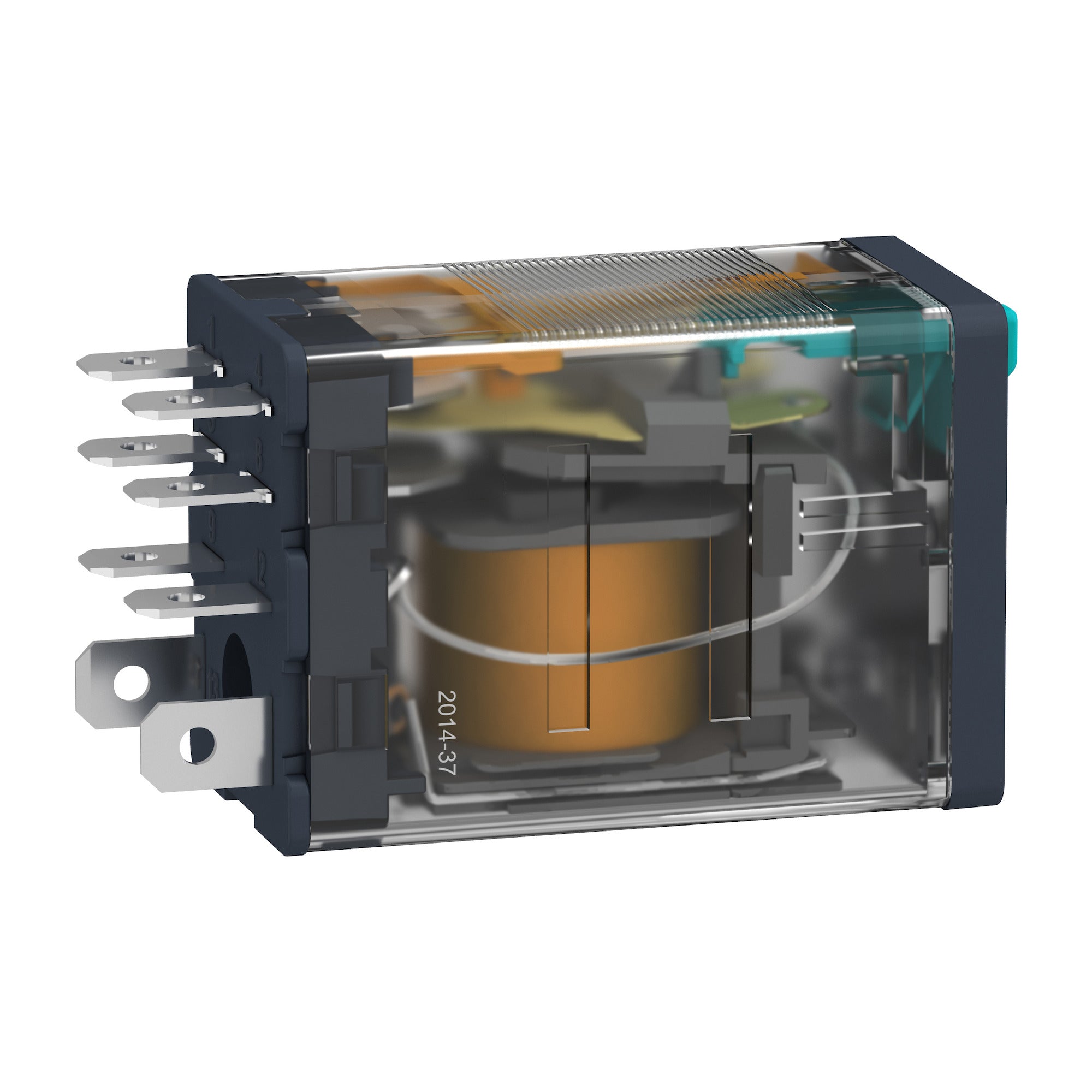

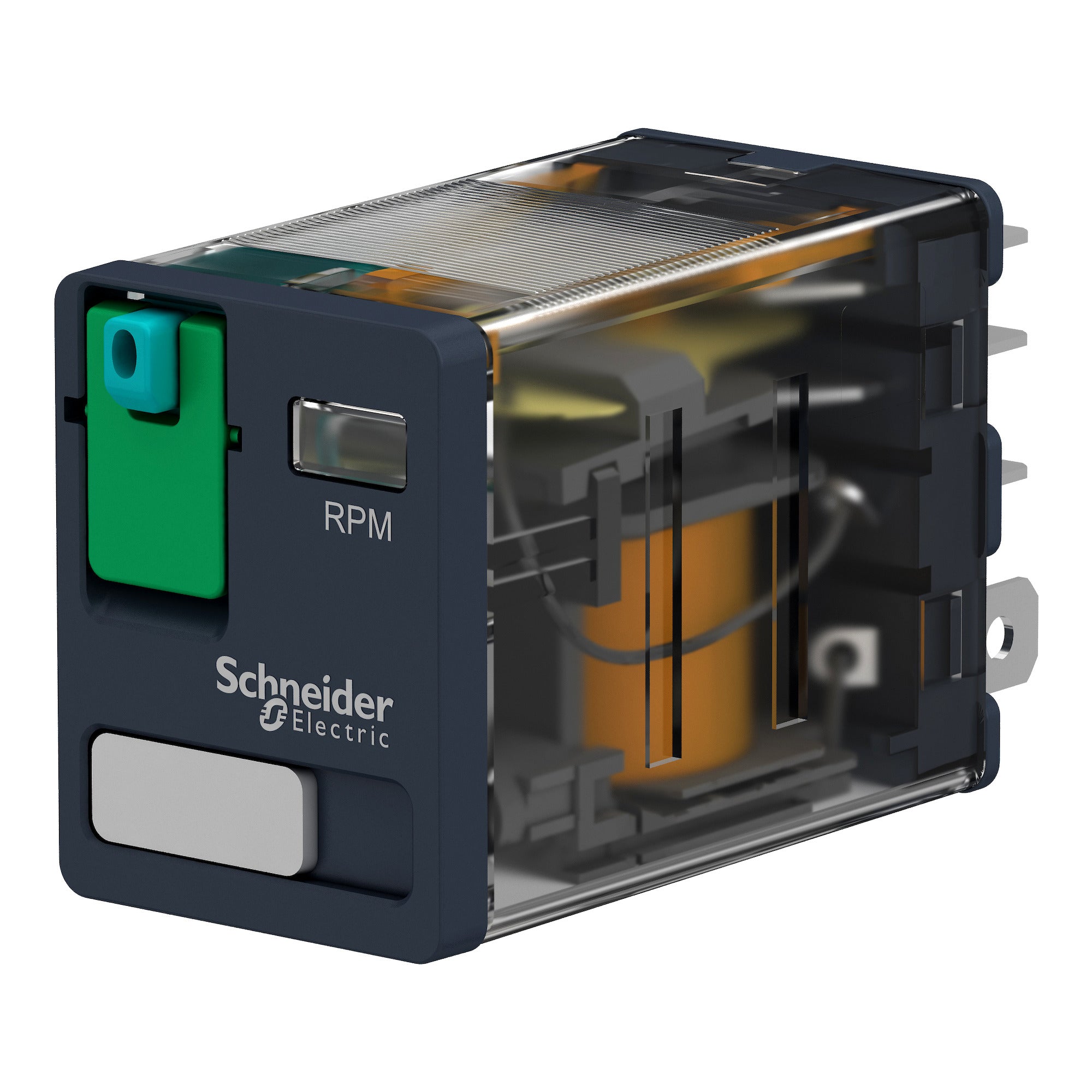

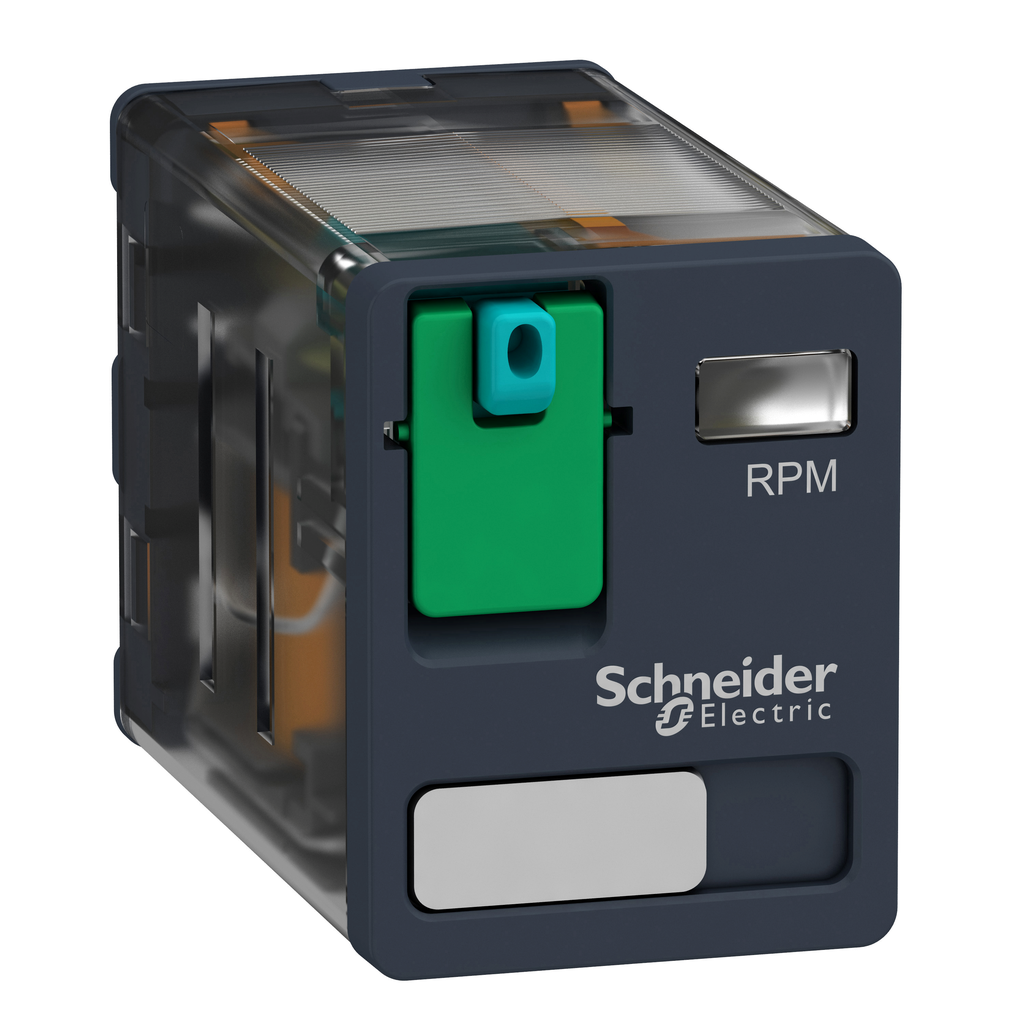

Schneider Electric RPM21JD SQUARED RPM21JD plug-in relay, Harm

Product Description

The Schneider Electric RPM21JD is a plug-in relay designed for various applications. This relay has a coil control voltage of twelve volts DC and features two changeover contacts with a rating of fifteen amps. It is suitable for use in tight spaces due to its compact design.

• Coil control voltage of twelve volts DC
• DPDT contacts rated at fifteen amps
• Compact plug-in design for easy installation

Product Highlights

This product helps to optimize space in control panels while ensuring reliable operation. The plug-in type allows for quick maintenance and replacement, making it ideal for automated systems.

Product Information

Standard Information

• Catalog Number: RPM21JD
• Manufacturer: Schneider Electric

Technical Specifications

• Operating Temperature: -40 to 55 degrees C
• Storage Temperature: -40 to 85 degrees C
• Weight: 0.08 lb
• Contact Configuration: 2 C/O
• Contact Material: Silver Alloy
• Standard Compliance: CSA C22.2 No 14, IEC 61810-1, UL 508
• Country of Origin: China
• Warranty: 18 months
