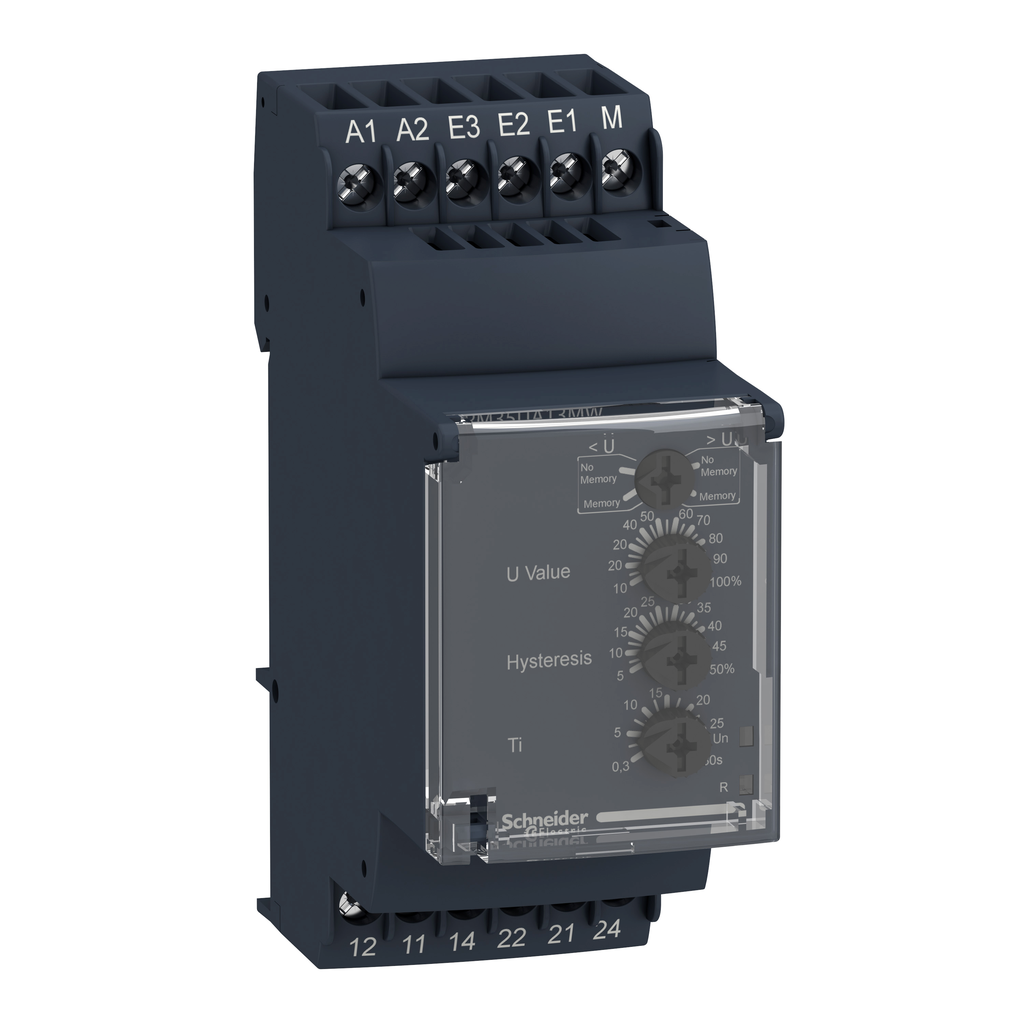

Schneider Electric RM35UA13MW Voltage Control Relay 24 to 240 VAC/VDC 5 Amp 2CO

Product Description

The Schneider Electric RM35UA13MW is a voltage control relay suitable for 24 to 240 VAC and VDC. This relay manages electrical values and monitors voltage variations. It is useful in industrial and building control applications including packaging, lifts, and water systems.

• Compatible with a wide range of industrial automation applications.
• Compact design, fitting in standard DIN rail installations.
• Features fault identification and shutdown management for safety.

Product Highlights

This multipurpose relay offers easy installation, reliable performance, and support for complex automated systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D
• Catalog Number: RM35UA13MW
• Country of Origin: France

Technical Specifications

• Voltage Range: 24 to 240 VAC/VDC
• Amperage: 5 A
• Weight: 0.18 lb
• Width: 35 mm
• Operating Temperature: -20 to 50 degrees C
• Resistance: 150 MOhm (E1-M)
• Contact Configuration: 2 C/O
• Warranty: 18 months
