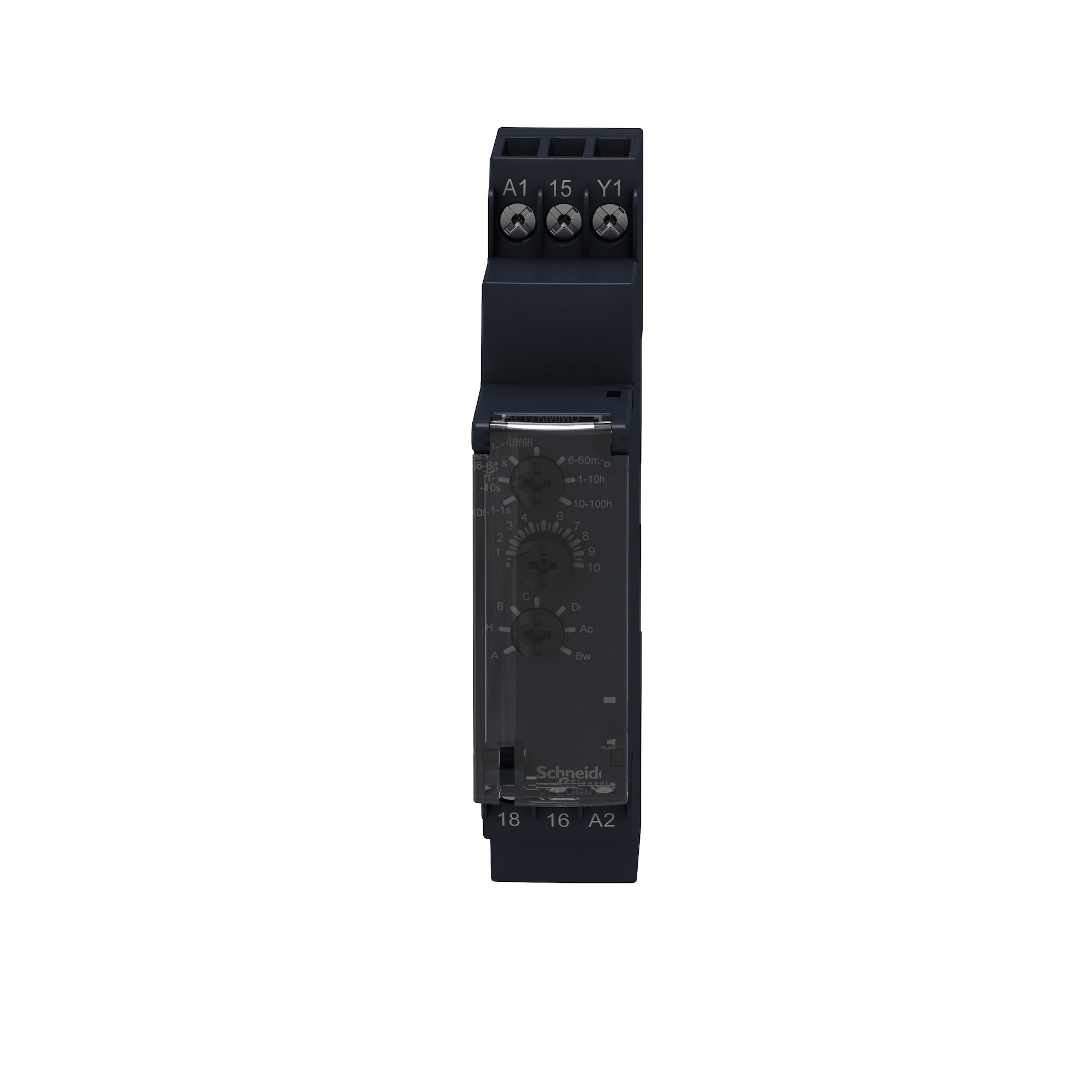

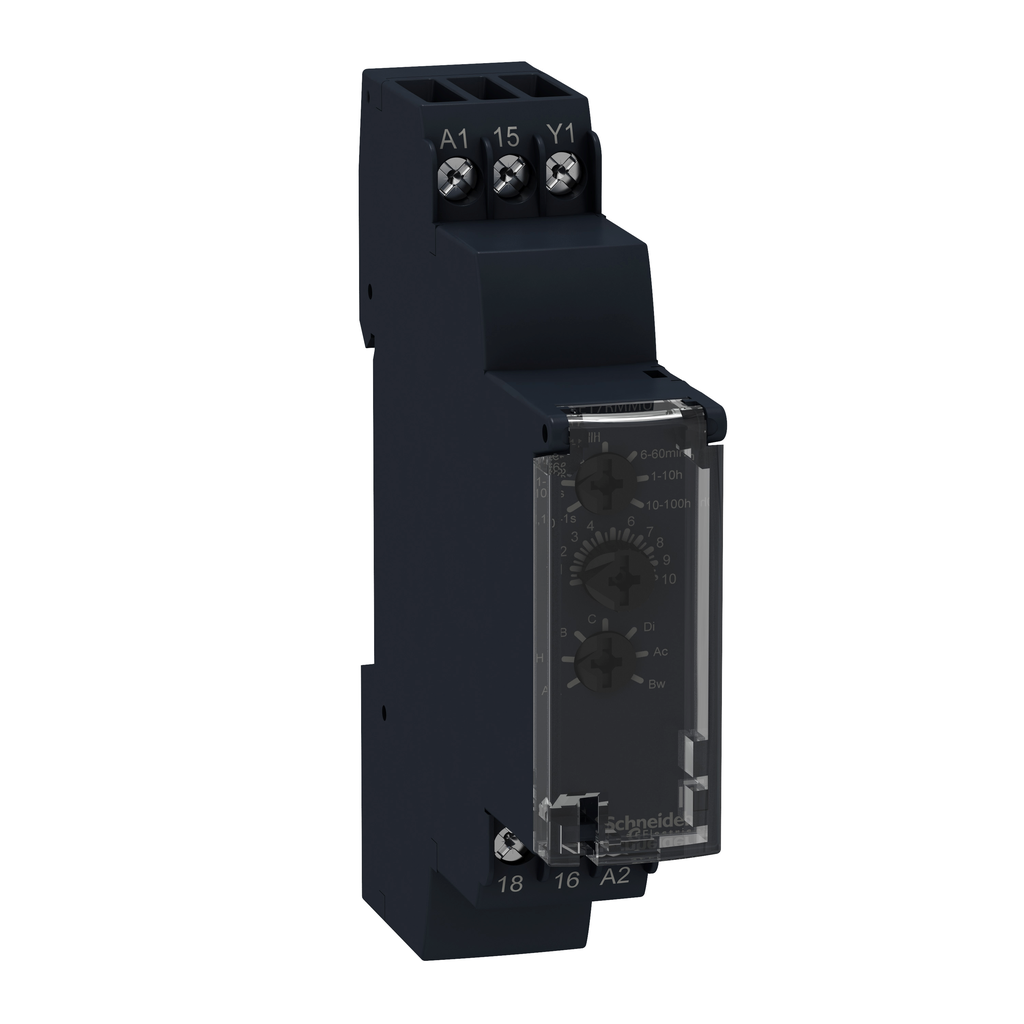

Schneider Electric RE17RMMU Multi-Function Timing Relay 24 to 240 VAC 24 VDC 8 Amp

Product Description

Schneider Electric RE17RMMU is a multi-function timing relay designed for versatile applications. This relay operates on input voltages of twenty-four to two hundred forty volts AC and twenty-four volts DC while supporting an output rating of eight amperes. The timer features precise timing adjustments from one-tenth of a second up to one hundred hours, making it suitable for various industrial uses.

• Multi-function timer with adjustable settings.
• Compact design for easy DIN rail mounting.
• One changeover contact configuration for flexible integration.

Product Highlights

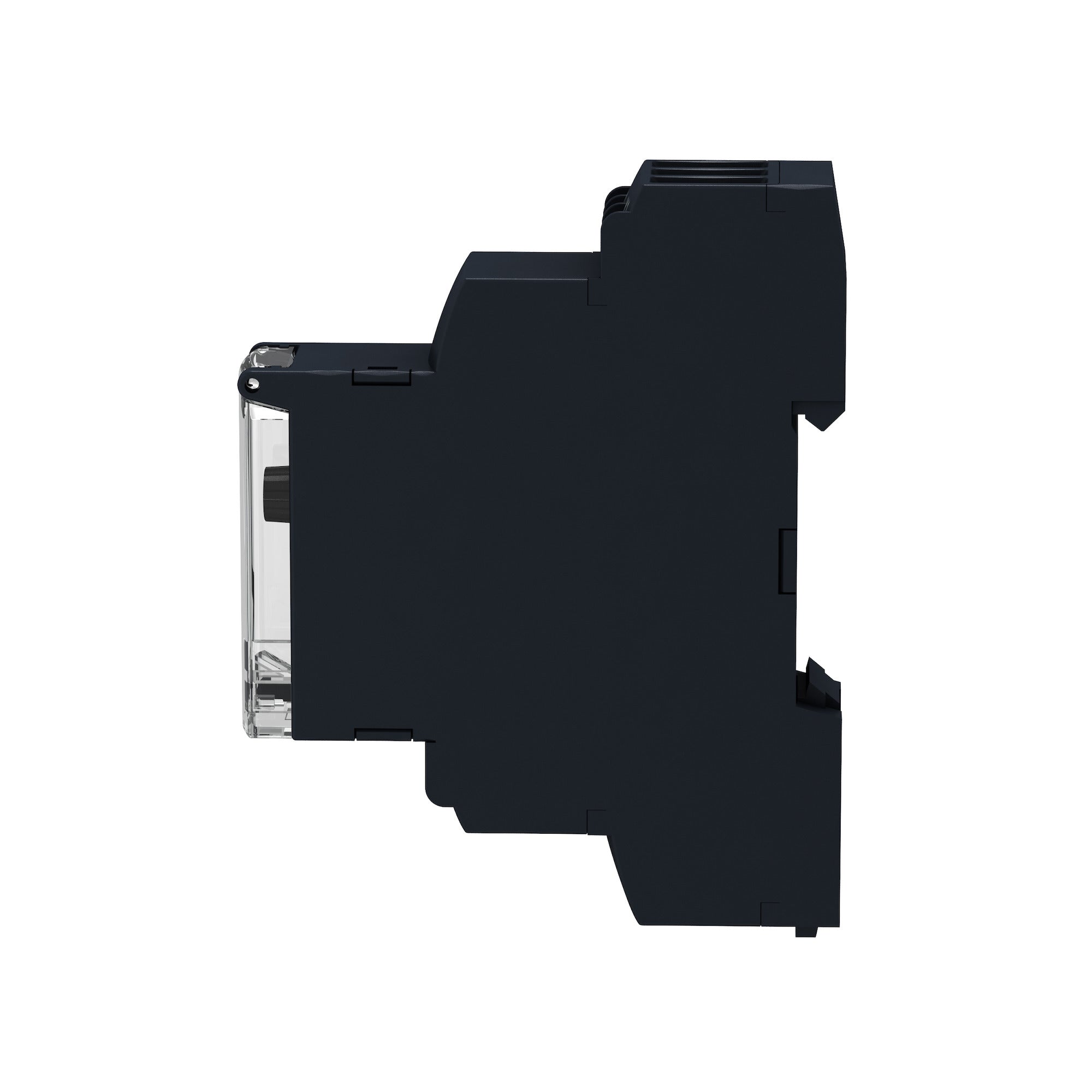

The RE17RMMU combines a slim form factor with a sealable cover and straightforward rotary trimmer settings. This design allows for simple integration into hard-wired installations, ideal for upgrades of older systems without needing a programmable logic controller.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: RE17RMMU

Technical Specifications

• Input Voltage: 24V to 240V AC, 24V DC
• Output Rating: 8 A
• Dimensions: 17.5 mm Width, 90 mm Height, 72 mm Depth
• Weight: 0.15 lb (0.07 kg)
• Contact Configuration: 1 C/O (Single Pole Double Throw)
• Operating Temperature: -20 to 60 degrees C
• Storage Temperature: -30 to 60 degrees C
• Country of Origin: Indonesia
