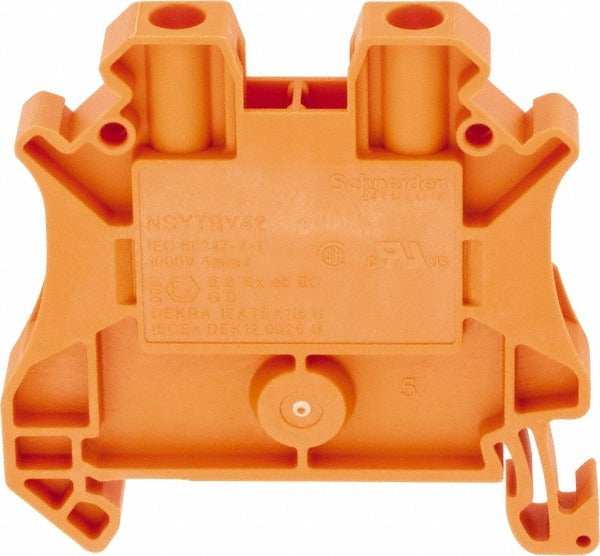

Schneider Electric NSYTRV42AR Passthrough Terminal Block

Product Description

The SCHNEIDER ELECTRIC NSYTRV42AR is a single-pole, passthrough terminal block rated for 1,000 volts and 32 amps, designed for DIN rail installation in industrial control panels and electrical enclosures. The block is constructed from polyamide, giving it strong resistance to heat and mechanical stress across an operating temperature range of -40 degrees F to 266 degrees F. It accepts wire sizes from 26 AWG down to 10 AWG (0.14 to 6 square millimeters), making it compatible with a wide range of conductor gauges used in control wiring applications. Licensed electricians and panel builders are the primary installers of this component.

The NSYTRV42AR is suited for use in industrial and commercial electrical panels, automation cabinets, and machine control enclosures where high-density DIN rail terminal blocks are required. Its orange color coding aids in circuit identification during installation and maintenance. The single-row, two-contact configuration keeps wiring organized and supports straightforward point-to-point connections in both new builds and retrofit projects. The block measures 47.5 mm high, 47.70 mm in length, and 6.20 mm wide, allowing tight packing on standard DIN rail.

Key Features

• Rated for 1,000 volts and 32 amps for use in high-voltage control panel applications
• Polyamide block material provides thermal and chemical resistance
• Accepts 26 AWG to 10 AWG wire (0.14 to 6 square mm) for broad conductor compatibility
• DIN rail mount design for fast, tool-efficient installation and removal
• Orange color coding supports circuit identification and panel organization
• Meets multiple international certifications including ATEX, CSA, cURus, IECEx, RoHS, VDE, and others

Compatibility

Designed as an OEM-style replacement or new-installation terminal block for standard DIN rail systems in industrial control panels and electrical enclosures requiring a single-pole passthrough configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local electrical codes. De-energize the panel and verify zero voltage at all terminals before handling or installing terminal blocks. Ensure the DIN rail is properly grounded and that conductor insulation is stripped to the manufacturer-recommended length before insertion. Do not exceed the rated voltage or amperage for this block.
