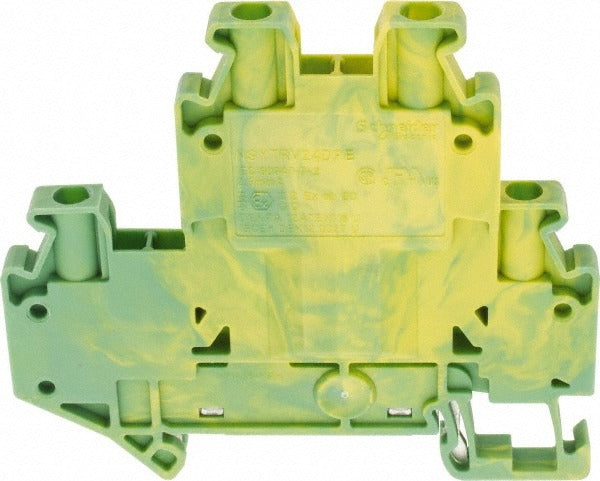

Schneider Electric NSYTRV24DPE Grounding Terminal Block

Product Description

The SCHNEIDER ELECTRIC NSYTRV24DPE is a single-pole grounding terminal block designed for DIN rail installation in industrial control panels and electrical enclosures. Built from polyamide, it handles up to 1,000 volts and accepts wire sizes ranging from 26 AWG to 12 AWG (0.14 to 4 square millimeters), giving installers flexibility across a wide range of conductor gauges. The green and yellow color coding identifies this block as a dedicated grounding device at a glance. Its compact profile and four-contact design make it well-suited for organized, high-density terminal strip assemblies. Licensed electricians and panel builders are the primary installers of this component.

The NSYTRV24DPE is used in residential, commercial, and industrial electrical panel builds wherever a dedicated grounding point is required on a DIN rail. It is rated for operation from -40 degrees F to 266 degrees F, making it appropriate for both indoor climate-controlled environments and harsher installation locations such as outdoor enclosures, marine applications, and industrial facilities. Its multi-certification profile supports use in projects requiring ATEX, IECEx, UL, CSA, DNV, GL, or RoHS compliance documentation.

Key Features

• Rated for 1,000 volts with a single-pole, single-row, four-contact configuration
• Accepts 26 AWG to 12 AWG conductors (0.14 to 4 square millimeters)
• Green and yellow polyamide body provides immediate visual identification as a grounding terminal
• DIN rail mount for fast, tool-minimized installation in standard panel assemblies
• Wide operating temperature range: -40 degrees F to 266 degrees F
• Certified to ATEX, IECEx, UL, CSA, DNV, GL, RoHS, and additional standards

Compatibility

Designed as an OEM-style grounding terminal block for use on standard DIN rail in electrical control panels and enclosures requiring a single-pole grounding termination point.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local codes. De-energize the panel and verify the absence of voltage before handling any terminal block. Snap the block firmly onto a compatible DIN rail and confirm seating before torquing conductors. Do not exceed the maximum rated wire size or voltage for this terminal.
