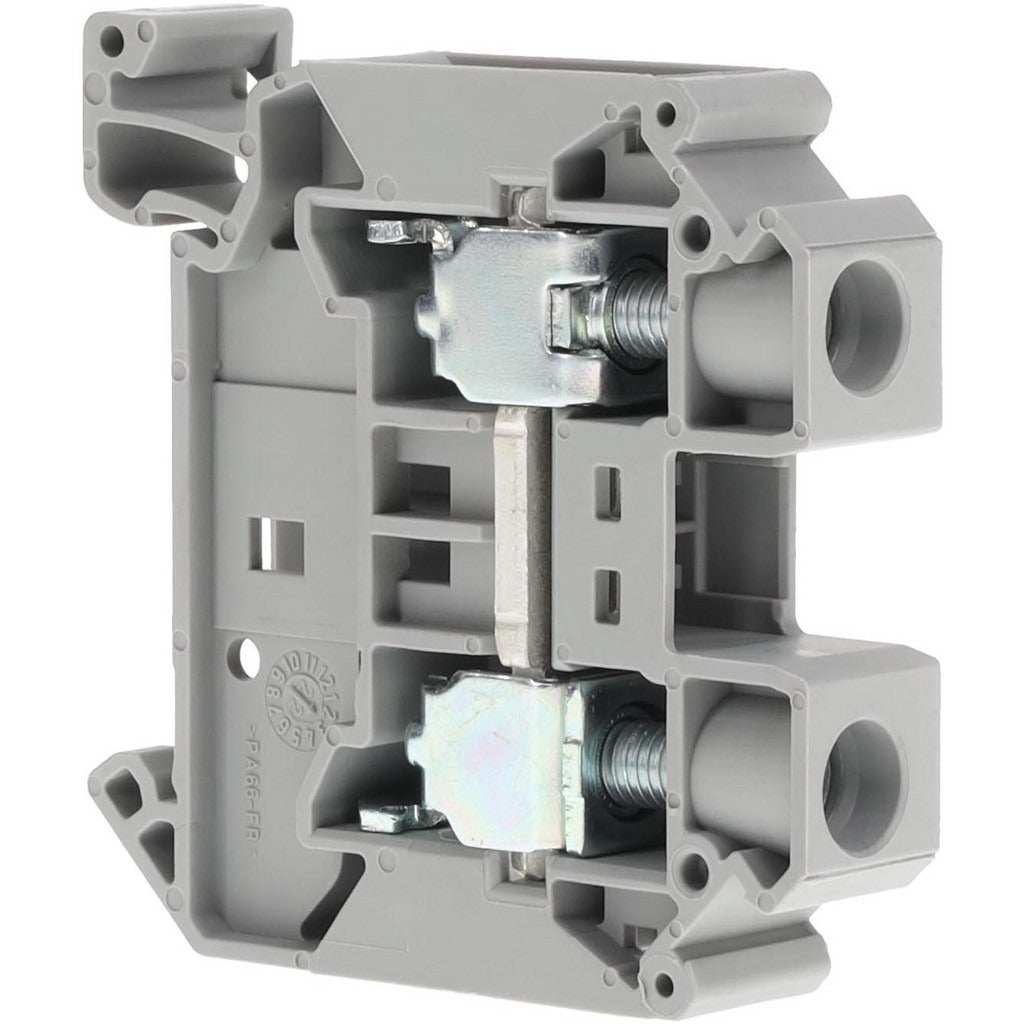

Schneider Electric NSYTRV162 Passthrough Terminal Block

Product Description

The SCHNEIDER ELECTRIC NSYTRV162 is a single-pole, passthrough terminal block rated for 1,000 volts and 101 amps, designed for DIN rail installation in industrial control panels and electrical enclosures. Constructed from gray polyamide, it accepts wire sizes from 16 AWG to 4 AWG (1.5 to 25 sq mm) and provides two contact points per block. The operating temperature range spans -40 degrees F to 266 degrees F, making it suitable for demanding environments. Licensed electricians and panel builders install this component when building or servicing terminal strip assemblies in switchgear, control panels, and automation enclosures.

The NSYTRV162 is used in single-row DIN rail terminal strip configurations across residential, commercial, and industrial panel builds. Its wide wire-size compatibility makes it a practical choice for both light-gauge control wiring and heavier power conductors within the same panel layout. The polyamide body meets multiple international standards, supporting installations in environments requiring ATEX, IECEx, UL, CSA, VDE, or RoHS compliance. This block suits applications where reliable passthrough connectivity, compact footprint, and broad certification coverage are required.

Key Features

• Rated 1,000 volts and 101 amps for high-capacity passthrough connections
• Accepts wire from 16 AWG to 4 AWG (1.5 to 25 sq mm)
• Single-pole, single-row design with 2 contacts per block
• Polyamide construction rated from -40 degrees F to 266 degrees F
• DIN rail mount for fast, tool-free installation into standard enclosures
• Certified to ATEX, CSA, DNV, GL, IEC 60216-1, IECEx, LR, RoHS, UL, and VDE

Compatibility

Designed for use with standard DIN rail terminal strip assemblies in industrial control panels, switchgear enclosures, and automation systems requiring single-pole passthrough blocks rated to 1,000 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and any local codes governing panel wiring. De-energize the panel and verify zero voltage before inserting or removing terminal blocks from the DIN rail. Confirm that conductor sizing and insulation ratings are compatible with the block's voltage and amperage ratings before terminating wires. Do not exceed the maximum wire size of 4 AWG or the rated current of 101 amps.
