Schneider Electric METSEPM5560 Power Meter PowerLo 2 Ethernet Up to 63rd Harmonic

Product Description

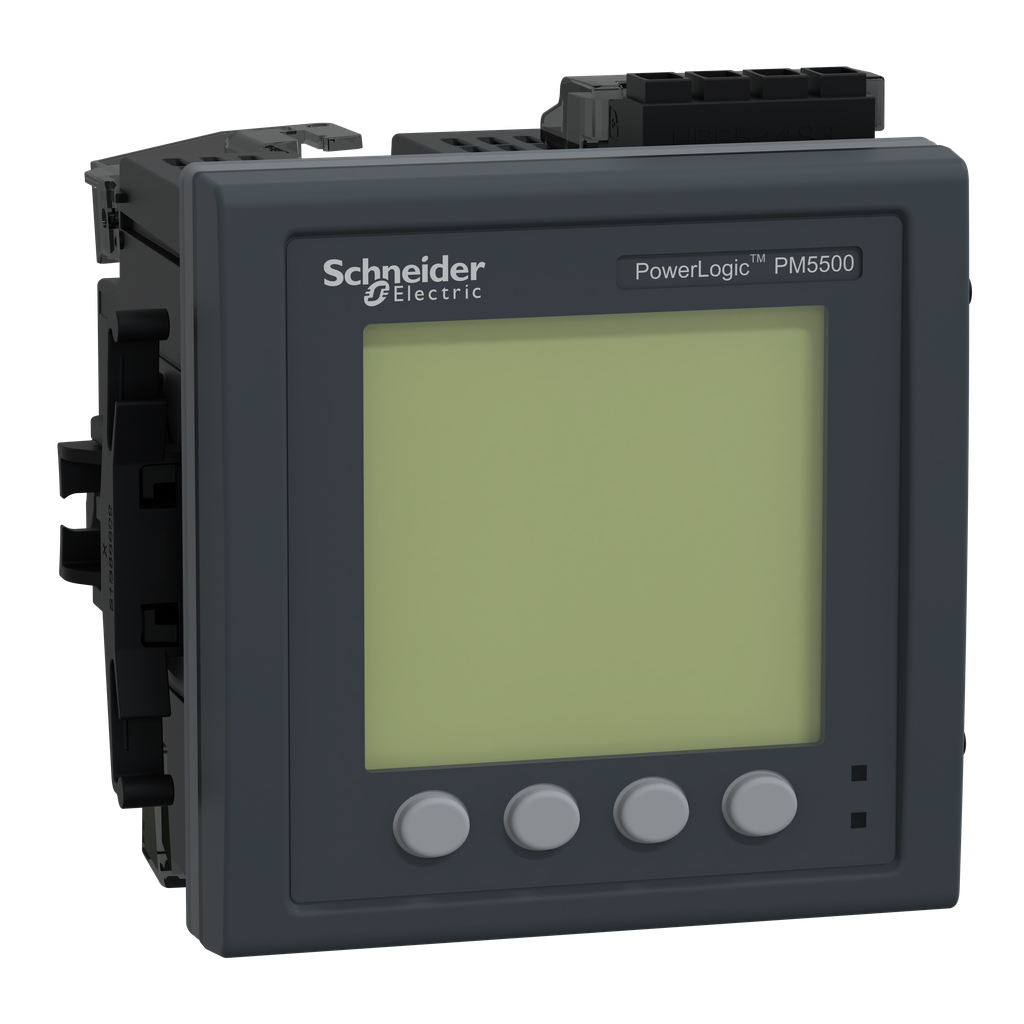

The Schneider Electric METSEPM5560 is a flush-mount energy meter featuring a backlit LCD display measuring ninety-six by ninety-six millimeters. It offers Class 0.2S accuracy as per IEC 62053-22 standard, capturing one hundred twenty-eight samples per cycle.

• Measures energy, active and reactive power, voltage, current, frequency, and power factor
• Supports communication protocols including Modbus RTU and TCP/IP
• Configurable parameters with built-in memory for up to fourteen settings

Product Highlights

This energy meter is designed for use in both fifty and sixty Hertz networks, accepting supply voltages ranging from one hundred to four hundred eighty volts AC and one hundred twenty-five to two hundred fifty volts DC. The device supports various configurations including single phase, three phase, and neutral setups, with a maximum measurement voltage between phases of twenty to six hundred ninety volts.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: METSEPM5560

Technical Specifications

• Catalog Number: METSEPM5560
• Country of Origin: United States
• Net Weight: 450 g
• Voltage Rating: 100 to 480 VAC / 125 to 250 VDC
• Frequency Rating: 50 to 60 Hz
• Mounting Type: Flush-Mounted
• Communication Protocols: Modbus RTU, TCP/IP, Ethernet/IP, BACnet/IP
• Memory: 1.1 MB
• Line Rated Current: 1 A or 5 A
• Accuracy: Class 0.2S according to IEC 62053-22
