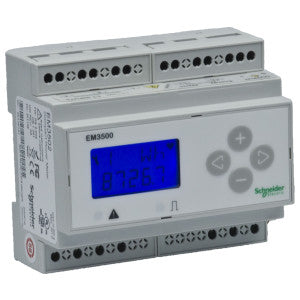

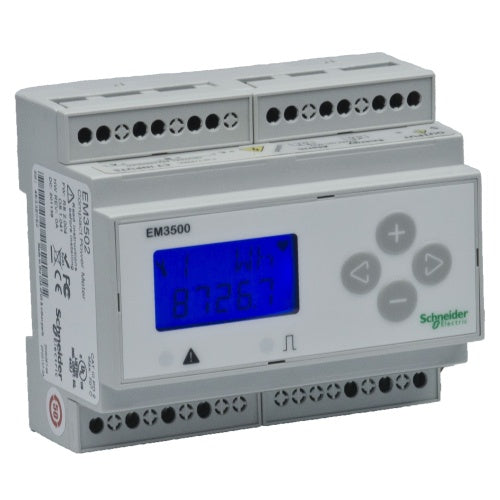

Schneider Electric METSEEM3561A PowerLogic EM3500 Energy Meter

Product Description

The Schneider Electric METSEEM3561A is part of the PowerLogic EM3500 series. This three-phase energy meter is designed for easy DIN rail installation. It is suitable for cost allocation and sub-metering applications. The meter works with Rogowski coil current transformers, handling current inputs from twenty amperes to five thousand amperes. It features BACnet communication and pulse inputs for integrating various sensors.

• Three-phase DIN rail mounted energy meter.
• Compatible with Rogowski coil current transformers (20A to 5000A).
• Supports BACnet communication and includes pulse inputs.

Product Highlights

The METSEEM3561A energy meter is ideal for monitoring energy use in industrial and large commercial buildings.

Product Information

Standard Information

• Brand: Schneider Electric
• Device Type: Energy Meter

Technical Specifications

• Current Inputs: 20A to 5000A
• Voltage Range: 90V AC to 300V AC
• Frequency: 50Hz or 60Hz
• Measurement Accuracy: Power +/- 0.5%; Energy +/- 0.5%
• Mounting: DIN Rail
• Display Type: Backlit LCD
• Communication Protocol: BACnet MS/TP
• Temperature Range: -30°C to 70°C
• Width: 4.21 inches
• Height: 3.58 inches
• Depth: 2.32 inches
