Schneider Electric METSECTR46500 SQUARED PowerLogic

Product Description

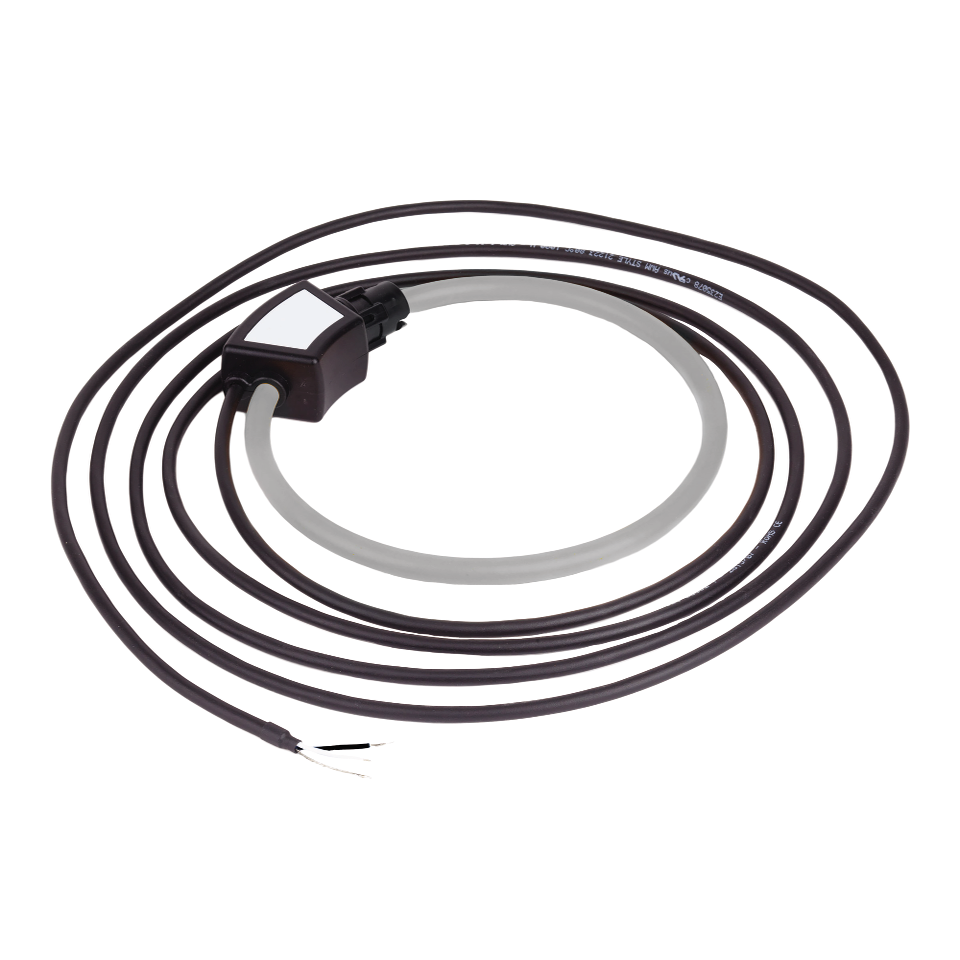

The Schneider Electric METSECTR46500 is a flexible core current transducer designed for retrofit installation. It measures line-rated currents from fifty amperes to five thousand amperes. The transducer's coil accommodates cables with an outer diameter of up to one hundred forty-six millimeters. Measurement accuracy is plus or minus one percent throughout its range of operation. It features a two point four-meter flying lead to connect the transducer to a meter.

• Flexible core for easy installation
• Accurate measurements from 50A to 5000A
• Compatible with standard cable diameters up to 146 mm

Product Highlights

This product is cURus certified and UL recognized.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Height: 460 mm
• Diameter: 146 mm
• Thickness: 8 mm
• Standards: ANSI/IEEE C57.13, EN 61010-1, EN 61010-2-032, UL 61010-1, UL 61010-2-032
• Certifications: CE, CURus, UL Recognized
• Storage Temperature: -40-70 degrees C
