Schneider Electric METSECTR30500 SQUARED PowerLogic -

Product Description

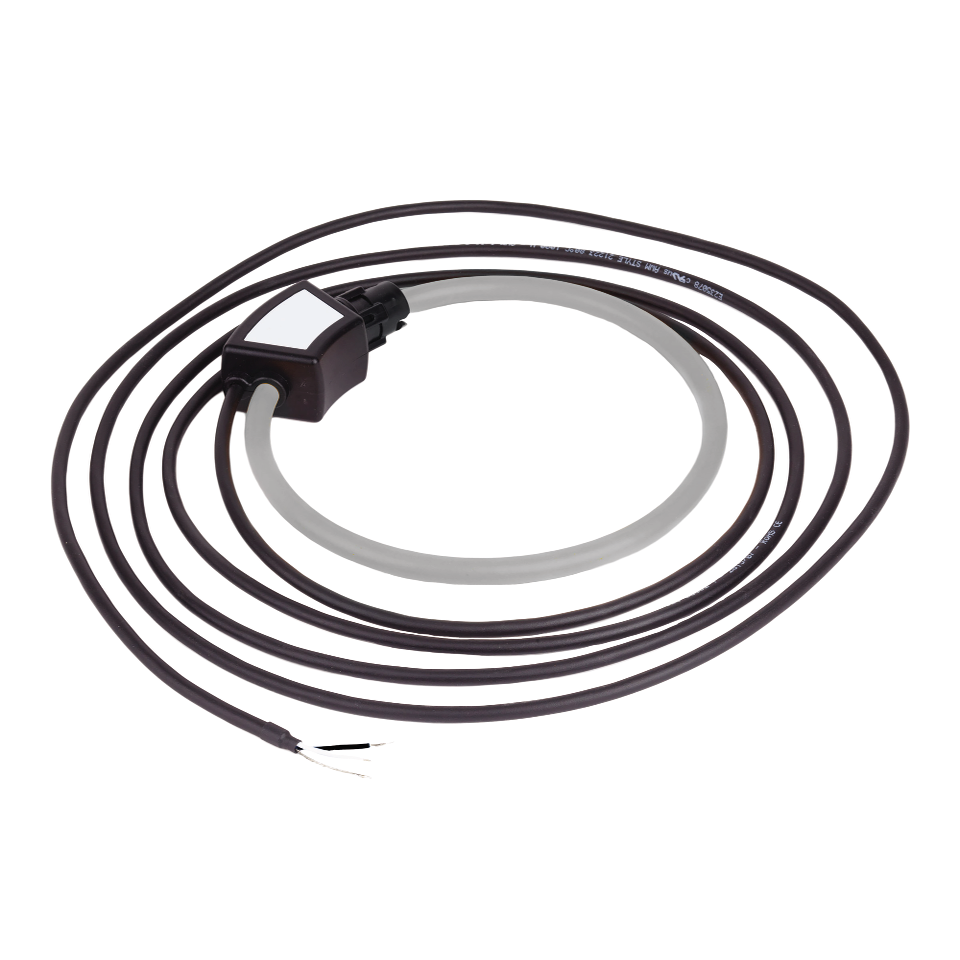

The Schneider Electric METSECTR30500 is a flexible core current transducer designed for retrofit installation. It accommodates a line rated current range from fifty amps to five thousand amps. The coil fits around cables with a maximum diameter of ninety-six millimeters. With a measurement accuracy of plus or minus one percent from fifty amps to five thousand amps, this device ensures reliable data. A flying lead of two point four meters connects the transducer to a meter for easy use. This product has received cURus certification and is recognized by UL.

• Flexible core design for easy installation
• Compatible with cable diameters up to ninety-six millimeters
• Measurement accuracy of ±1% from fifty amps to five thousand amps

Product Highlights

This current transducer offers precise measurement across a wide range, ideal for various applications in electrical systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Height: 300 mm
• Diameter: 96 mm
• Thickness: 8 mm
• Product UPC: 60648942142
• Certifications: CE, CURus, UL Recognized
• Storage Temperature: -40 to 70 degrees C
• Standard: ANSI/IEEE C57.13, EN 61010-1, EN 61010-2-032, UL 61010-1, UL 61010-2-032
• CA Prop65 Warning: WARNING: This product can expose you to chemicals including: Lead and lead compounds, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
