Schneider Electric METSECTLV2030U Split Core Current Transformer 300A 0.333V Output

Product Description

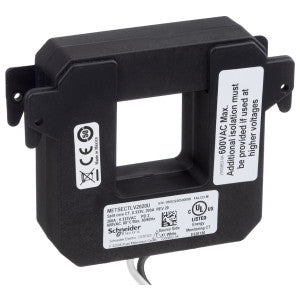

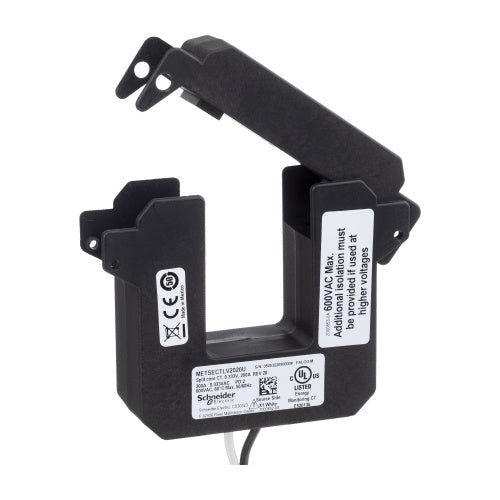

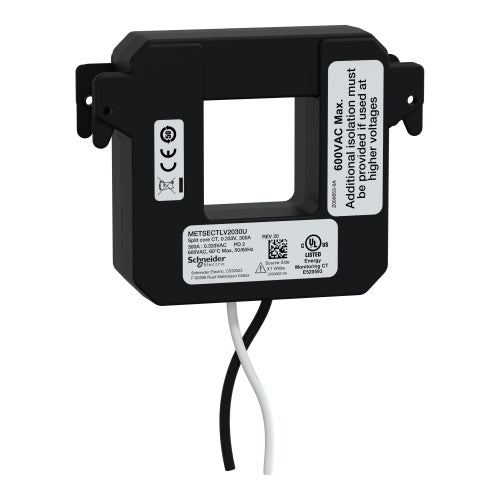

The Schneider Electric METSECTLV2030U is a split core current transformer designed for accurate current measurement up to three hundred amperes with a zero point three three three volt output. It features an eight-foot lead for ease of installation. This transformer complies with accuracy standards set by IEC 61869-2; Table 201; Class 1, ensuring reliable performance in various applications.

• Split core design for easy installation
• Maximum current of 300A and output of 0.333V
• Meets IEC 61869-2 accuracy standards

Product Highlights

Suitable for electrical monitoring systems, the METSECTLV2030U provides precise current readings essential for energy tracking and management.

Product Information

Standard Information

• Catalog Number: METSECTLV2030U
• Manufacturer: Schneider Electric

Technical Specifications

• Output Voltage: 0.333 V
• Primary Amperage: 300A
• Current Core: Split Core
• Current Measurement Range: 0 - 300 A
• Dimensions: 4.12 inches W x 3.25 inches L x 1.12 inches H
• Environmental Conditions: Humidity Range: 0 to 95% Non-Condensing; Storage Temperature: -40 to 158 °F
• Frequency Rating: 50 - 60 Hz
• Operating Temperature: 5 - 140 °F
• Product Type: Current Transducer
