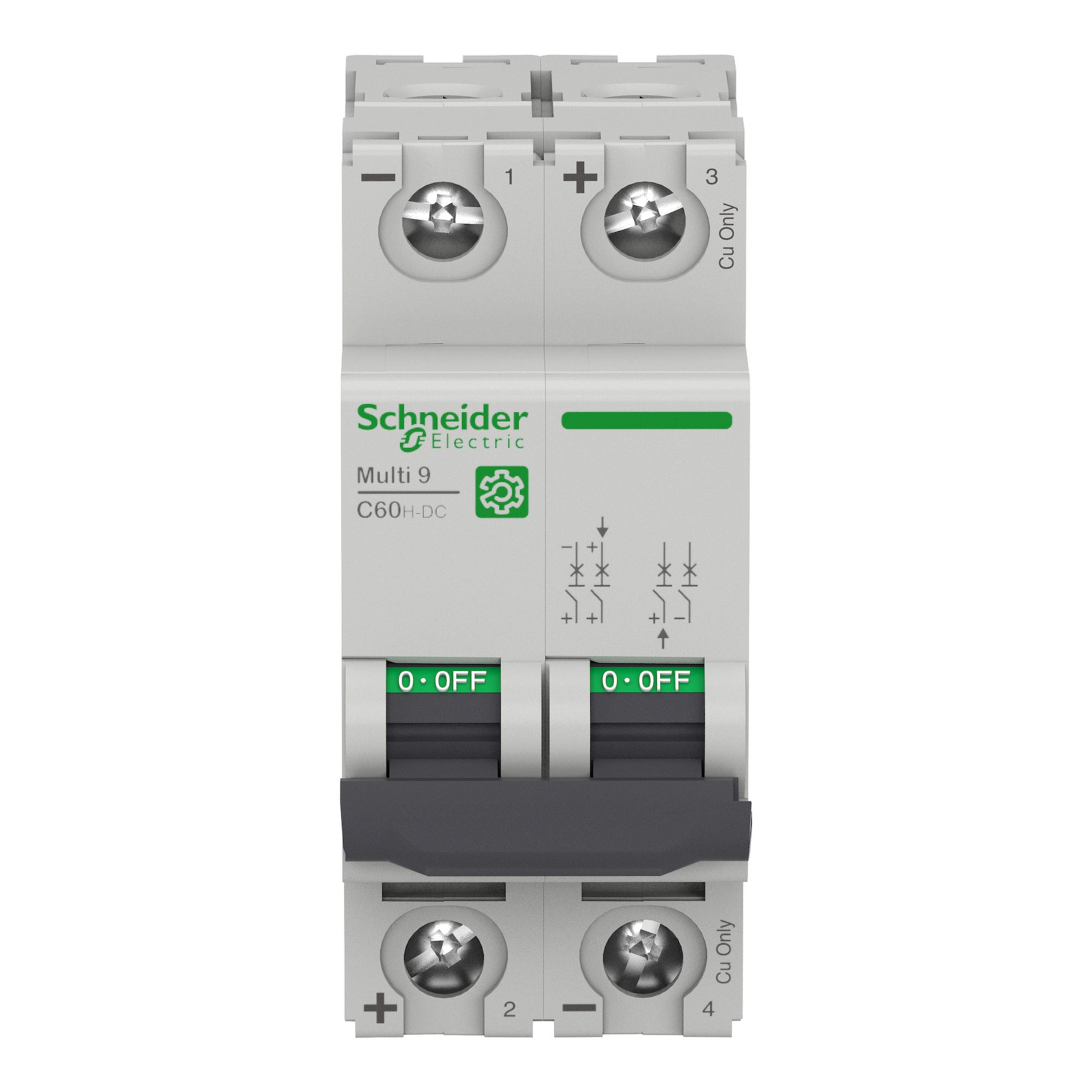

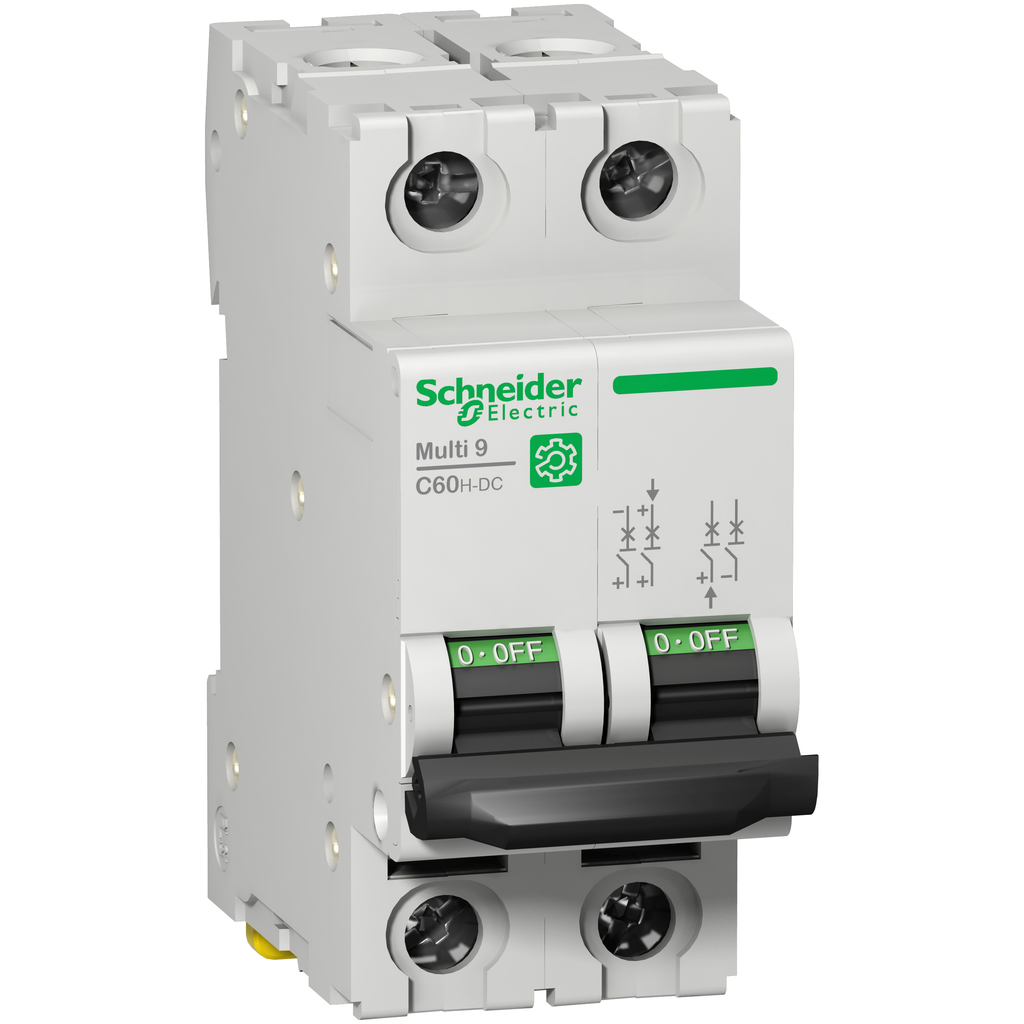

Schneider Electric M9U21210 Miniature Circuit Breaker 10A 2P C Curve 5kA

Product Description

The Schneider Electric M9U21210 is a low voltage miniature circuit breaker designed for direct current applications. This 2P circuit breaker provides protection for two poles with a rated current of ten amps and features a C tripping curve. It can handle a short circuit breaking capacity of up to twenty kiloamperes at two hundred twenty volts DC, compliant with EN/IEC 60947-2 standards. This circuit breaker is suitable for both residential and industrial use, offering protection against overload, earth leakage, and short circuits.

• Rated for ten amps and features a C tripping curve
• Complies with industrial standard EN/IEC 60898-1
• Can withstand short circuits up to twenty kiloamperes

Product Highlights

This circuit breaker is ideal for original equipment manufacturers and control panel builders. It features an electrical endurance of up to three thousand cycles and a mechanical endurance of up to twenty thousand cycles. The product is designed for easy installation on a DIN rail, with a width of four pitches of nine millimeters.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: China

Technical Specifications

• Catalog Number: M9U21210
• Insulation Voltage: 500 VDC
• Impulse Withstand Voltage: 6 kV
• Operating Temperature: -25C to 70C
• Storage Temperature: -40C to 85C
• Dimensions: Width 36 mm, Height 81 mm, Depth 73 mm
• Weight: 0.128 kg
• Protection Degree: IP20
