Schneider Electric LXD1T7 Contactor Replacement Coil

Product Description

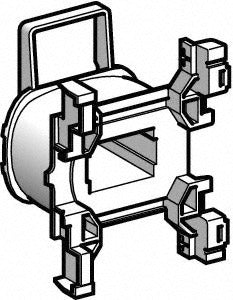

The SCHNEIDER ELECTRIC LXD1T7 is a replacement contactor coil designed for use in industrial and commercial motor control applications. This coil serves as the electromagnetic drive component inside a contactor, pulling in the armature to close the power contacts when energized. It is a direct accessory replacement part, allowing technicians to restore a worn or failed contactor to service without replacing the entire contactor body. The coil is rated for use across a 9 to 38 amp range, making it applicable to a broad range of load sizes within the TeSys D contactor family. At 0.15 pounds, it is a compact, lightweight component sized for straightforward field or bench replacement.

This coil is intended for use in industrial control panels, motor starters, and related motor control center (MCC) equipment. It is suited for both new assembly and field repair scenarios where the coil has failed due to overvoltage, excessive cycling, or heat exposure. Electricians and industrial controls technicians performing preventive maintenance or emergency repairs on TeSys D contactors will find this a direct-fit accessory replacement.

Key Features

• Rated for contactor frame sizes covering 9 to 38 amp load range
• Direct replacement coil accessory for TeSys D series contactors
• Compact form factor at 2.5 inches height, 1.6 inches width, and 1.6 inches length
• Lightweight at 0.15 pounds for easy handling during bench or panel service
• OEM accessory part — no field modification required for installation

Compatibility

Compatible with SCHNEIDER ELECTRIC contactors LC1D09 through LC1D38, LC1DT20 through LC1DT40, and the TeSys D contactor series as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and the manufacturer's instructions. De-energize and lock out the contactor and all associated control circuits before removing the existing coil. Verify that the replacement coil voltage rating matches the control circuit voltage before energizing. Avoid applying mechanical force to the coil terminals during installation to prevent damage.
