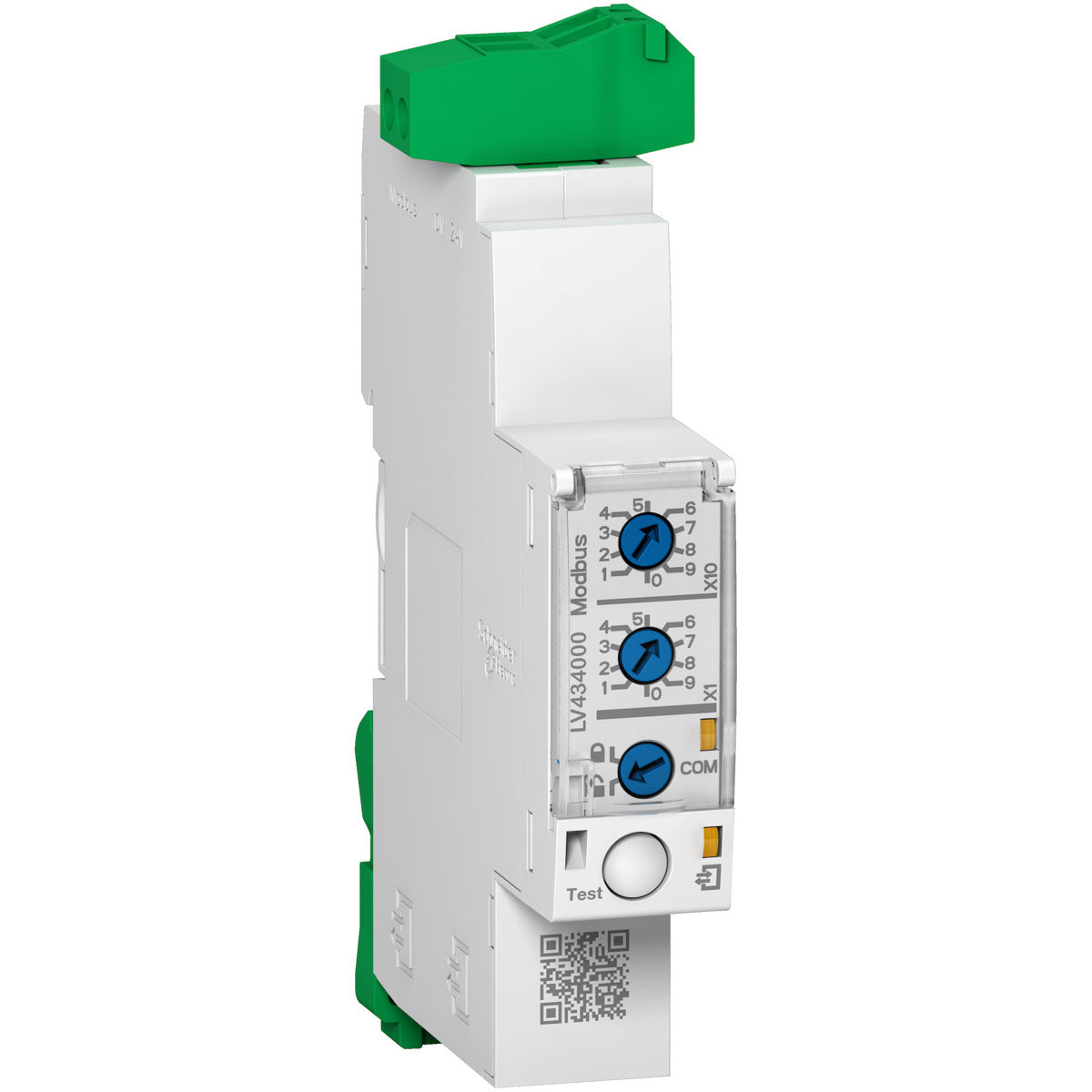

Schneider Electric LV434000 IFM Modbus SL Interface Module Clip Mounting 18 Months Warranty

Product Description

The Schneider Electric LV434000 IFM Modbus SL Interface Module is an essential component for integrating Masterpact, Compact, and PowerPact circuit breakers into a Modbus Serial Line network. Acting as a slave unit under a Modbus master, this interface facilitates efficient communication and management within power distribution systems.

• Easy configuration via front-mounted rotary switches.
• Includes multiple connection ports for comprehensive networking.
• Supports firmware updates through EcoStruxure Power Commission software.

Product Highlights

Designed for DIN rail mounting, the LV434000 measures 18 mm by 72 mm by 96 mm. It features a robust construction with IP4x protection on the front and IP2x on connectors, ensuring durability and reliability in various environments. This interface is fully integrated into the EcoStruxure Power architecture, enhancing operational efficiency and system interoperability.

Product Information

Standard Information

• Mount Type: Clip
• Warranty: 18 months contractual warranty

Technical Specifications

• Dimensions: Width: 18 mm, Depth: 72 mm, Height: 96 mm
• Weight: 4.23 oz (120 g)
• Current Rating: 24 V
• IP Ratings: IP4x (front), IP2x (connectors)
• Standards: CISPR 11, CISPR 22, CISPR 24, IACS E10, IEC 60950, UL 60950, UL 61010
• Connections: 1x 24VDC screw clamp terminal block, 3x RJ45 sockets
