Schneider Electric LUCD1XFU Starter Control Unit

Product Description

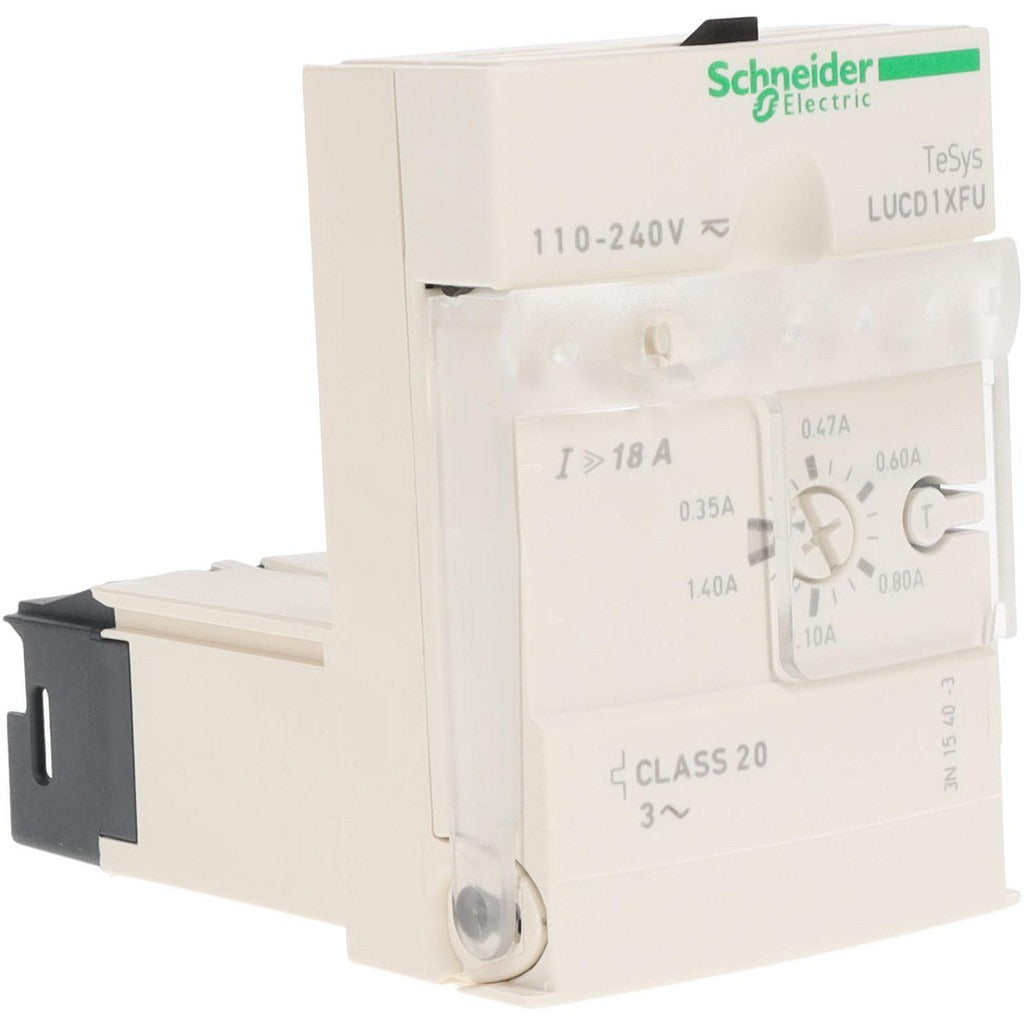

The SCHNEIDER ELECTRIC LUCD1XFU is a starter control unit designed to interface with compatible motor starter communication and control modules. It serves as the command and signal interface layer within a motor starter assembly, allowing control signals to be routed to the starter module for motor management applications. The LUCD1XFU weighs 0.32 pounds and measures 3.3 inches in length, 2.1 inches in width, and 4.1 inches in height, making it a compact component suited for panel and enclosure installations. Licensed electricians and industrial automation technicians are the primary installers of this unit.

The LUCD1XFU is intended for use in industrial and commercial motor control applications where a dedicated control unit is required to work alongside a compatible communication or function module. It is designed for panel-mount installations in motor control centers and enclosures. This unit is explicitly listed for use with the LUFC00, LUFDA01, LUFDA10, LUFDH11, LUFN, LUFV2, and LUFW10 modules, covering a range of communication and control configurations within the Schneider Electric LUF module family.

Key Features

• Compact form factor at 3.3 x 2.1 x 4.1 inches for space-constrained panel installations
• Lightweight construction at 0.32 pounds
• Compatible with multiple LUF-series communication and function modules
• Sold as an individual unit with a package quantity of one
• UNSPSC Code 39121521 for procurement classification

Compatibility

The LUCD1XFU is listed for use with the following Schneider Electric modules: LUFC00, LUFDA01, LUFDA10, LUFDH11, LUFN, LUFV2, and LUFW10.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and the manufacturer's wiring diagrams. De-energize and lock out the motor control circuit before handling or installing this control unit. Verify module compatibility against the specific LUF module in the assembly before installation. Do not force-mate connectors or modify the unit housing.
