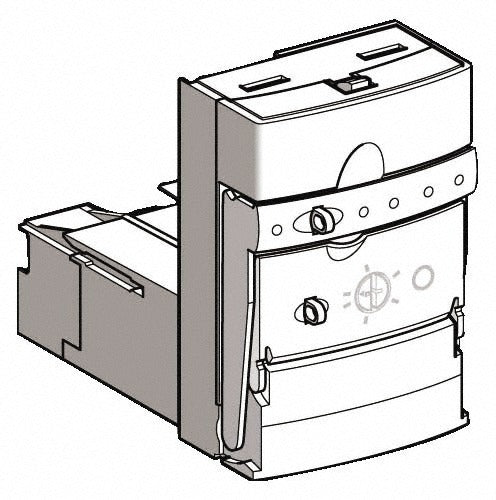

Schneider Electric LUCC32BL Starter Control Unit

Product Description

The SCHNEIDER ELECTRIC LUCC32BL is a starter control unit designed for use in motor starter assemblies. It serves as a control interface component within a modular starter system, allowing technicians to configure and manage motor starting functions at the control level. The LUCC32BL weighs 0.27 pounds and measures 2 inches in height, 3.2 inches in width, and 3.4 inches in length. Installation is performed by licensed electricians or industrial control technicians working on motor control center builds, panel upgrades, or field replacements.

This control unit is suited for industrial and commercial electrical applications where modular motor starters are deployed. It fits into assemblies requiring a dedicated control unit module, typically found in motor control centers, machine panels, and automated process equipment. The LUCC32BL is compatible with a defined set of Schneider Electric communication and function modules as listed under the compatibility section below.

Key Features

• Modular design integrates directly into compatible Schneider Electric starter assemblies
• Compact form factor at 2 inches height, 3.2 inches width, and 3.4 inches length
• Lightweight construction at 0.27 pounds for easy handling during panel builds
• Sold as a single unit per package with a minimum order quantity of 1

Compatibility

The LUCC32BL is for use with the following modules and accessories: ASILUFC5, ASILUFC51, LUFC00, LUFDA01, LUFDA10, LUFDH11, LUFN, LUFV2, LUFW10, LULC031, LULC033, LULC07, LULC08, LULC09, and LULC15.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and the manufacturer's wiring diagrams. De-energize the motor control circuit and verify zero voltage at the starter assembly before handling or inserting the control unit. Confirm module seating and mechanical lock engagement before restoring power. Do not force the module into position, as improper alignment can damage connector pins.
