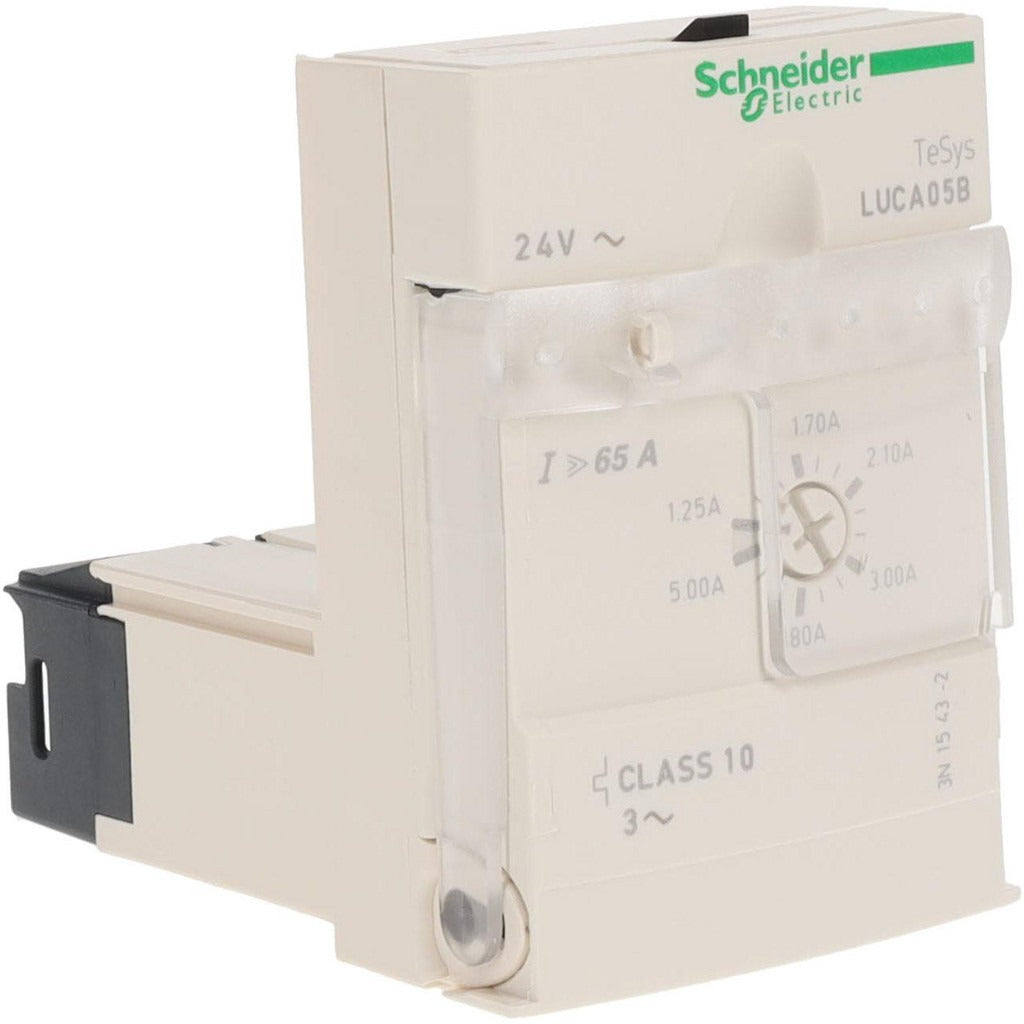

Schneider Electric LUCA05B Starter Control Unit

Product Description

The SCHNEIDER ELECTRIC LUCA05B is a starter control unit designed for use in motor control applications. It provides the control logic and switching interface needed to operate motor starters in industrial and commercial electrical systems. Licensed electricians and controls technicians install this unit as part of a larger starter assembly. The LUCA05B measures 4.1 inches in height, 2.2 inches in width, and 3.1 inches in length, making it a compact component suited for panel and enclosure mounting. At 0.28 pounds, it is lightweight and easy to handle during installation.

This starter control unit is intended for use with LUFC00 and LUFN accessories as part of a modular motor starter system. It is typically found in commercial and light industrial applications where motor control, overload protection, and circuit switching are required. Electricians and controls installers integrate this unit into starter assemblies during new installations or when replacing a failed control component in an existing panel.

Key Features

• Designed for direct use with LUFC00 and LUFN starter accessories
• Compact form factor at 4.1 x 2.2 x 3.1 inches for panel-friendly installation
• Lightweight at 0.28 pounds for easy handling in tight enclosures
• Modular starter accessory design allows targeted component replacement
• UNSPSC Code 39121521 for procurement and catalog classification

Compatibility

Designed for use with LUFC00 and LUFN motor starter accessories as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the circuit and verify zero voltage at all terminals before handling or replacing the control unit. Follow the manufacturer assembly instructions when mating this unit with LUFC00 or LUFN components to ensure proper mechanical and electrical engagement. Do not power up the assembly until all connections are confirmed secure and covers are in place.
