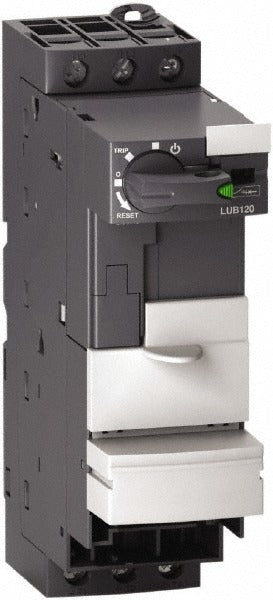

Schneider Electric LUB120 Starter Power Base Tesys U

Product Description

The SCHNEIDER ELECTRIC LUB120 is a starter power base designed for use with TeSys U motor starters. It provides the mechanical and electrical foundation that the TeSys U control unit mounts onto, forming a complete motor starter assembly. The power base handles the power circuit side of the starter, carrying load current through the motor circuit while the control unit manages switching and protection functions. Licensed electricians and industrial maintenance technicians install this component in motor control centers, control panels, and machine control enclosures.

The LUB120 is intended for use with TeSys U motor starters in industrial and commercial applications. Typical installations include pump control panels, conveyor drive circuits, and HVAC fan motor starters where a modular, compact motor starter solution is required. The power base is a core structural component that must be matched to the correct TeSys U control unit to complete a functional starter assembly.

Key Features

• Power base configuration carries load current through the motor power circuit
• Modular design mates with TeSys U control units for a complete motor starter assembly
• Compact form factor suits panel and motor control center installations
• Package quantity of 1 unit per order

Compatibility

Designed for use with TeSys U motor starter systems. Specific control unit compatibility should be verified against the TeSys U product family selection guide before installation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and all applicable local codes. De-energize and lock out the panel before installing or removing the power base. Verify that the selected control unit is rated for the application load before assembly. Do not apply power to the assembly until all wiring connections are complete and inspected.
