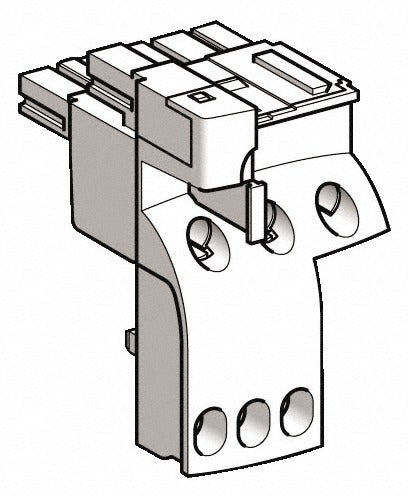

Schneider Electric LU9MR1C Starter Prewired Connector

Product Description

The SCHNEIDER ELECTRIC LU9MR1C is a prewired connector accessory designed for use with TeSys U motor starters. It provides a factory-wired termination point that simplifies field wiring connections during starter installation or replacement. This component is intended for industrial control panel environments where TeSys U starters are deployed in motor control circuits. Licensed electricians and industrial control technicians are the primary installers. At 0.13 pounds, the LU9MR1C is a compact, lightweight connector measuring 2.9 inches in length, 2.4 inches in width, and 1.8 inches in height.

The LU9MR1C is used in industrial and commercial motor control applications where TeSys U starters are specified. Typical installation scenarios include motor control centers, machine control panels, and automated equipment enclosures. The prewired design reduces field wiring time and minimizes the risk of wiring errors during starter commissioning or service. It is suited for both new panel builds and retrofit or replacement service work on existing TeSys U starter installations.

Key Features

• Prewired connector design reduces field wiring time and potential wiring errors
• Designed specifically as a TeSys U starter accessory for accurate fit and function
• Compact form factor at 2.9 x 2.4 x 1.8 inches suits tight panel installations
• Lightweight at 0.13 pounds for easy handling during installation
• Sold individually, suitable for single-unit replacement or repair applications

Compatibility

Designed for use with Schneider Electric TeSys U motor starters as a prewired connector accessory.

Installation Notes

Installation should be performed by a qualified electrician or industrial controls technician following applicable NEC requirements. De-energize and lock out the control panel before servicing any starter components. Verify that the connector is fully seated and secured before restoring power. Follow the TeSys U starter documentation for proper connector placement and torque requirements specific to the starter assembly.
