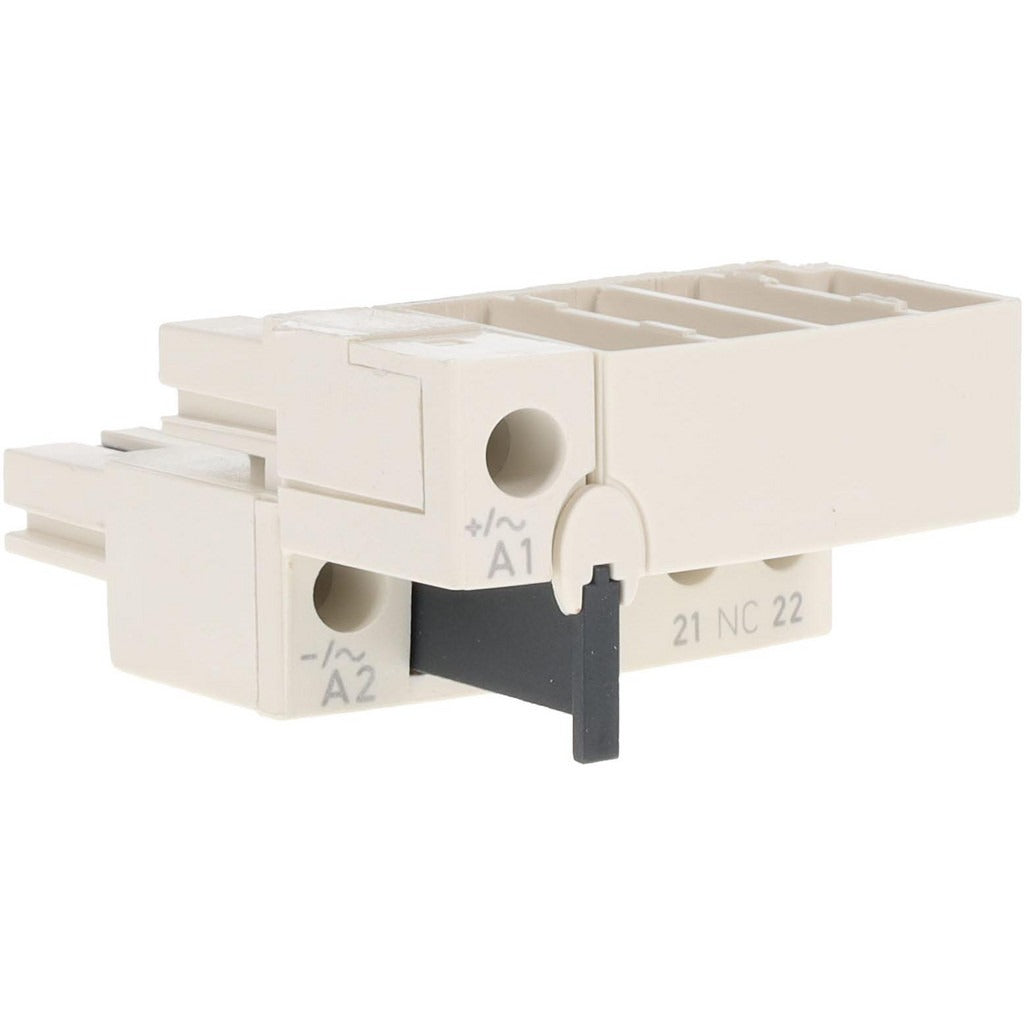

Schneider Electric LU9BN11 Starter Terminal Block

Product Description

The SCHNEIDER ELECTRIC LU9BN11 is a starter terminal block accessory designed for use with TeSys U motor starters and related starter assemblies. It provides a dedicated terminal connection point that integrates directly into the starter assembly, supporting reliable electrical termination in motor control applications. Measuring 2.4 inches in length, 2 inches in width, and 1.3 inches in height, the LU9BN11 is a compact component suited for panel-mounted motor starter installations. Electricians and industrial controls technicians typically install this part during new starter builds or field service calls where terminal block replacement is required.

The LU9BN11 is intended for use with the LUB120 and LUB320 base controller units and the broader TeSys U product family. It fits into industrial and commercial motor control panel applications where TeSys U starters manage load switching and motor protection. This terminal block is a factory-style replacement or supplemental accessory for existing TeSys U installations requiring correct termination hardware.

Key Features

• Compatible starter accessory type: terminal block for direct integration with TeSys U starters
• Compact dimensions: 2.4 inches long, 2 inches wide, 1.3 inches tall
• Lightweight at 0.08 pounds for easy handling during panel assembly
• Sold individually, allowing single-unit replacement without excess inventory
• UNSPSC Code 39121521 for procurement and catalog classification

Compatibility

The LU9BN11 is designed for use with the SCHNEIDER ELECTRIC LUB120, LUB320, and TeSys U motor starter platform.

Installation Notes

This terminal block is installed by a licensed electrician or qualified industrial controls technician. De-energize and lock out the motor control panel per NFPA 70E and applicable OSHA lockout/tagout procedures before beginning any work on the starter assembly. Verify that the terminal block seating and mechanical retention are secure before restoring power. Do not force the component into position, as improper seating can compromise the electrical connection.
