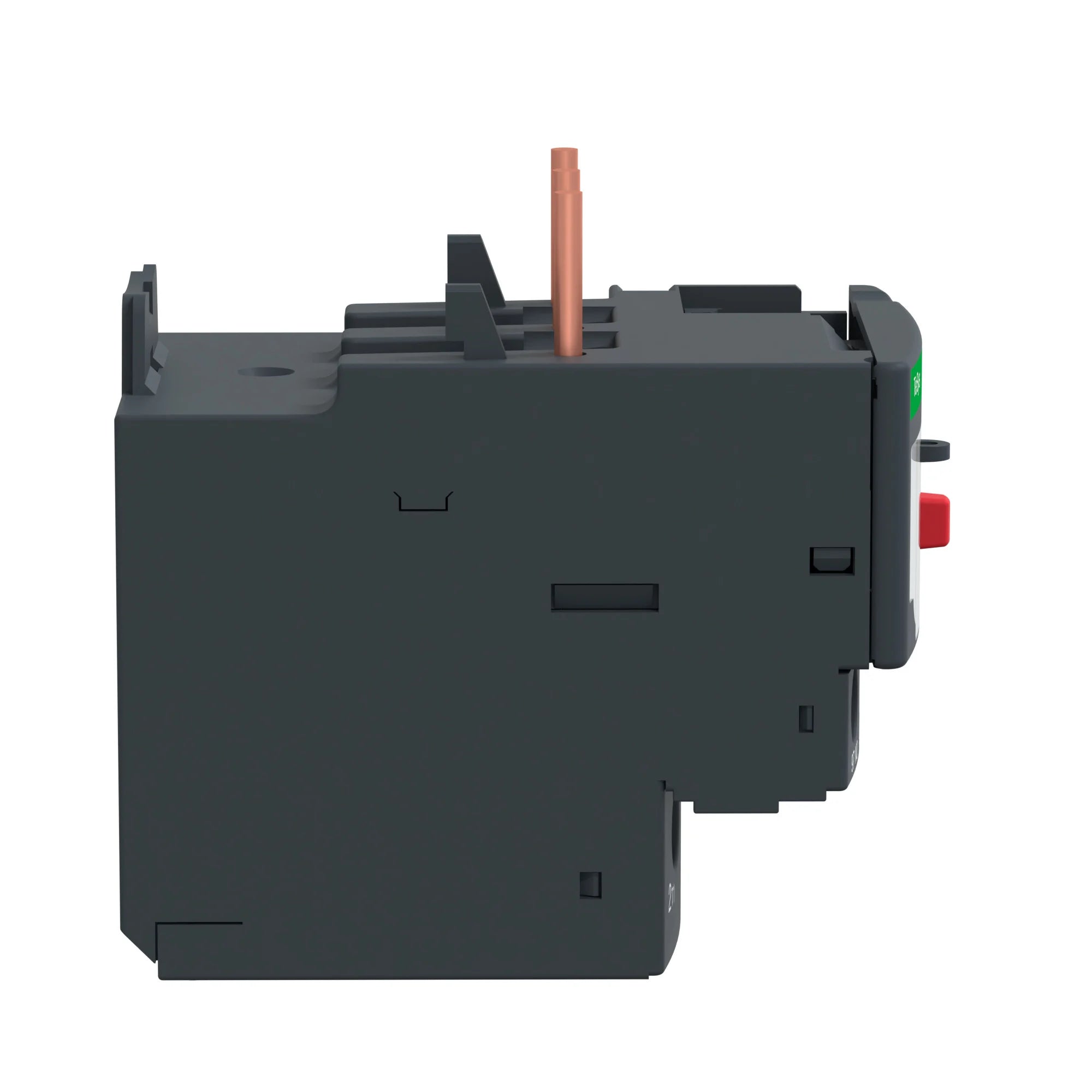

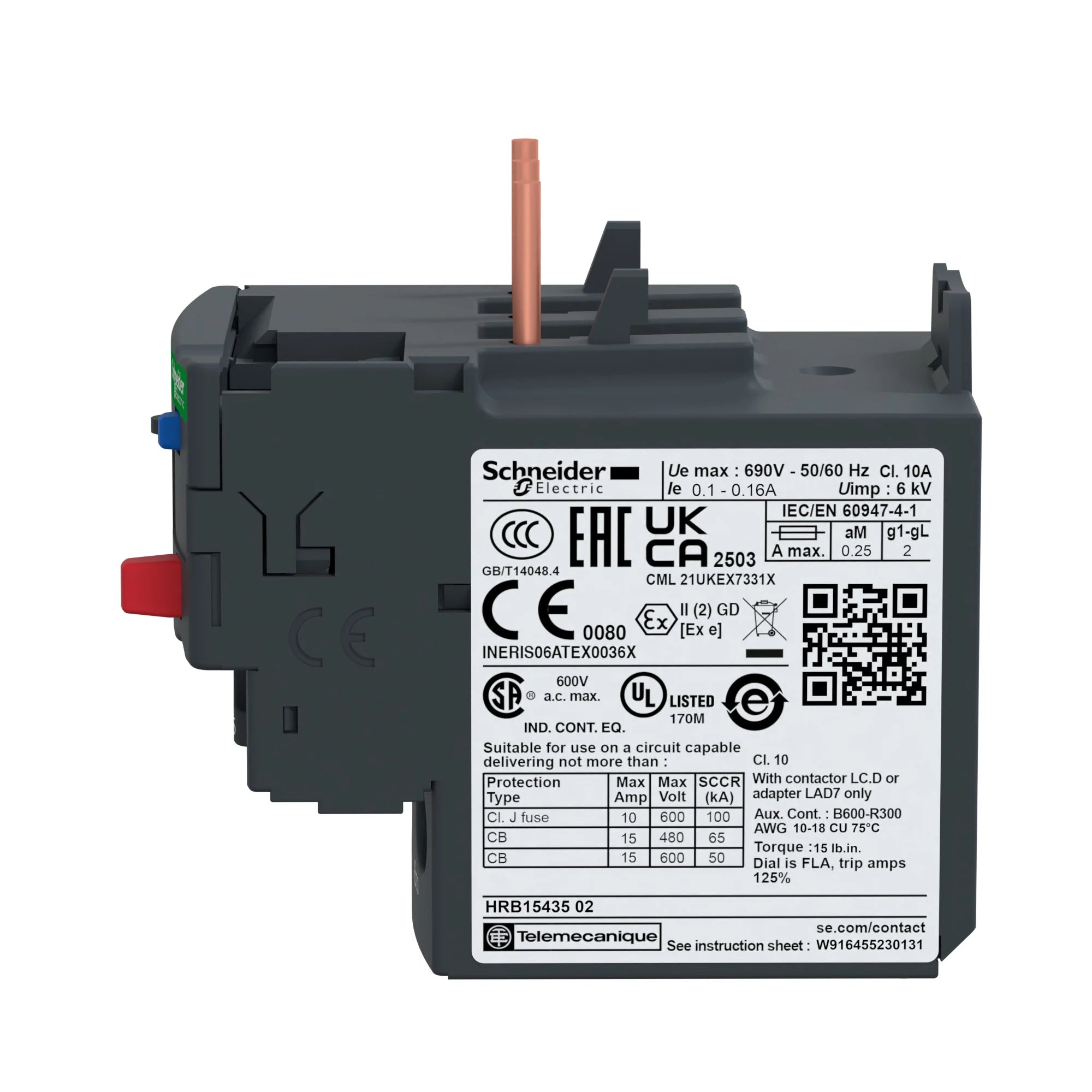

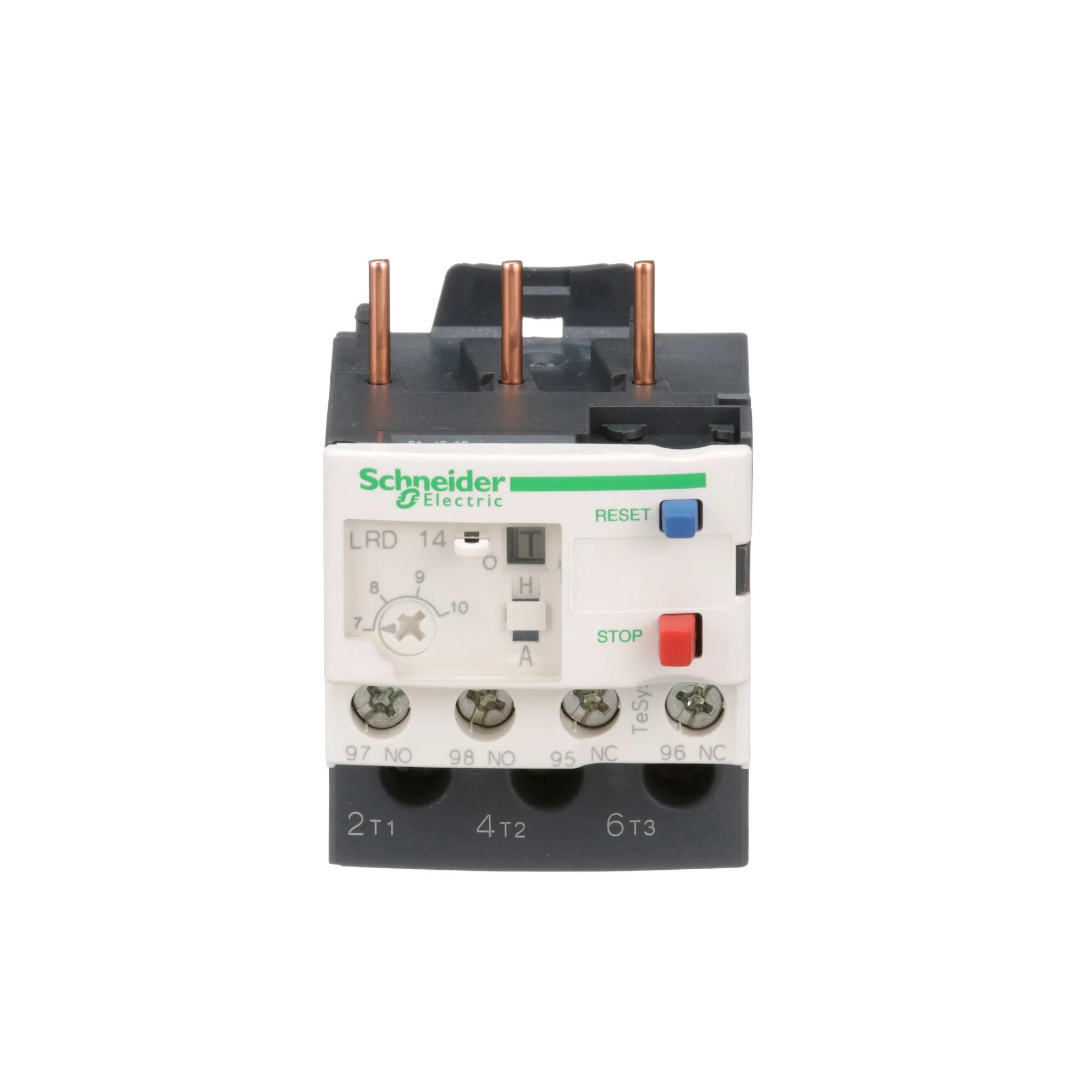

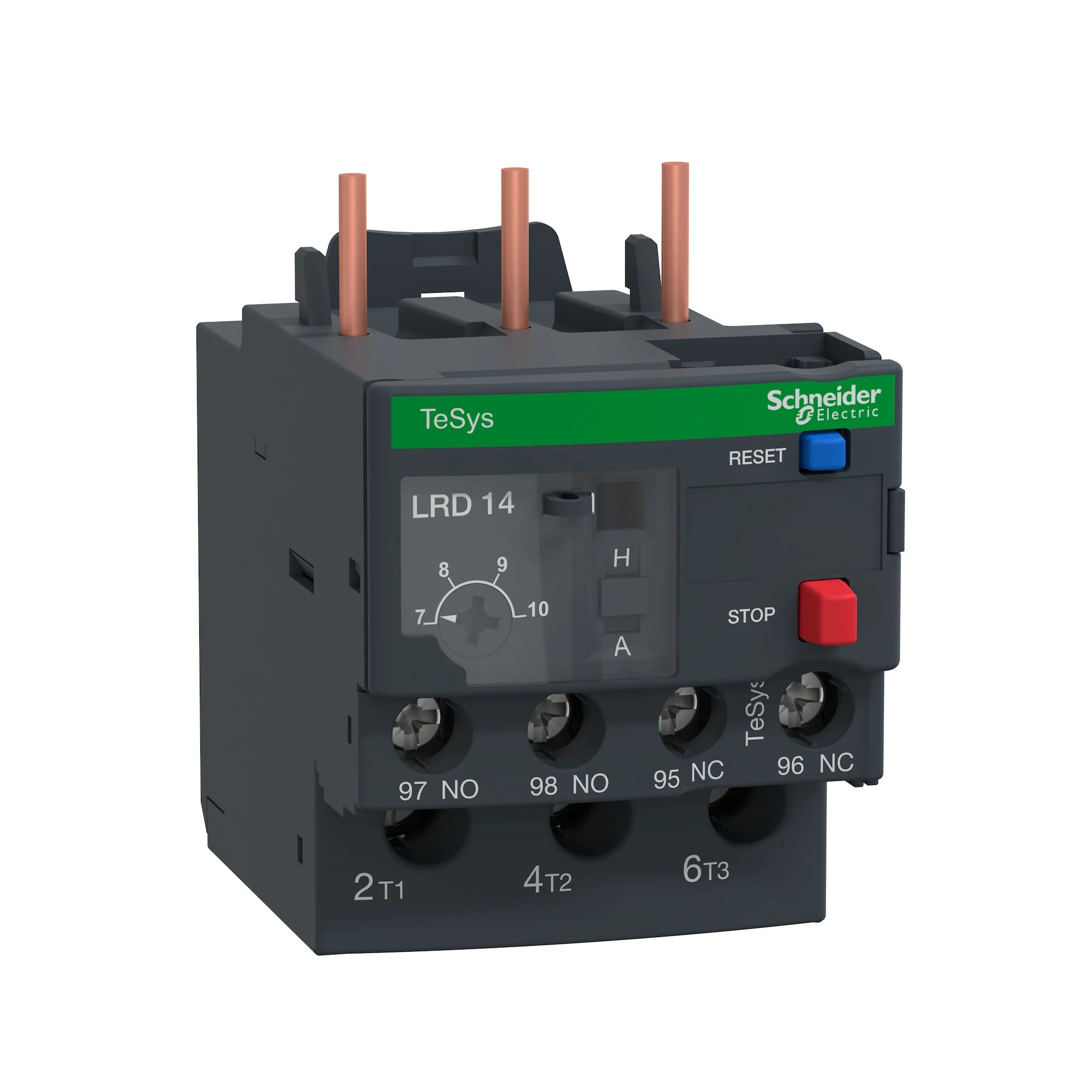

Schneider Electric LRD14 Square D Overload Relay 600 Volt 7.0-10.0 Amps LRD14

Product Description

The Schneider Electric LRD14 is a thermal overload relay designed to protect motors from potential damage due to overloads, jams, and single-phase operation. This relay works with TeSys D contactors and accommodates a current range from seven to ten amperes. The LRD14 is suitable for a variety of applications including industrial, commercial, and residential settings, especially for pumps, fans, and other motor-operated equipment.

• Adjustable trip current settings from seven to ten amperes
• Supports operating voltage of up to six hundred ninety volts
• DIN rail mountable for efficient space utilization

Product Highlights

This overload relay includes thermal protection, a manual reset button, and an ambient temperature compensation feature for reliable operation across various conditions.

Product Information

Standard Information

• Product Type: Overload Relay
• Manufacturer: Schneider Electric (Square D)

Technical Specifications

• Catalog Number: LRD14
• Width: one point seventy-seven inches
• Height: three point sixty-two inches
• Depth: two point seventy-five inches
• Weight: zero point twenty-seven pounds
• Voltage Rating: six hundred ninety volts
• Trip Class: Class 10
• Number of Poles: three
