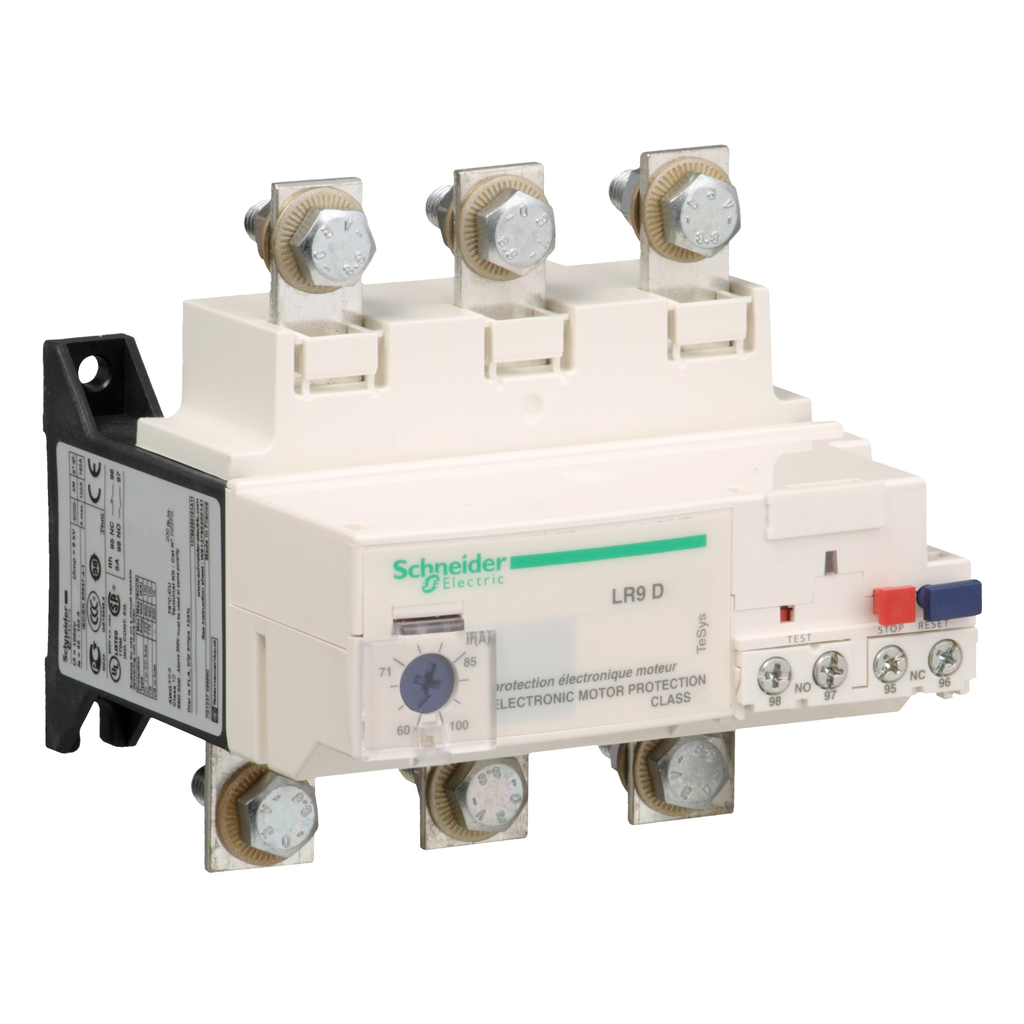

Schneider Electric LR9D5567 Square D 600 Volt 100 Amp 3-Pole Screw Clamp Terminal Solid State Thermal Overload Relay

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: LR9D5567
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Schneider Electric LR9D5567 is an electronic overload relay designed to work with TeSys D contactors. This relay offers a thermal setting range from sixty to one hundred amps and features a tripping class of twenty along with phase unbalance protection. It safeguards motors rated between thirty-seven and forty-five kilowatts when operating at four hundred volts.

  • Manual test and reset buttons for convenience
  • Automatic reset capability
  • Multi-standard certifications including IEC, UL, and CSA

Product Highlights

LR9D5567 provides robust thermal overload protection in a compact design. It is recommended for use with TeSys LC1D115 to LC1D150 contactors.

Product Information

Standard Information

  • Catalog Number: LR9D5567
  • Brand: Schneider Electric
Technical Specifications
Type
Electronic thermal overload relay
Voltage
690 Volt
Weight
1.95 lb
Depth
125 mm
Width
115 mm
Height
118 mm
Trip Type
Thermal - Solid State/Electronic Class 20
Country of Origin
France
