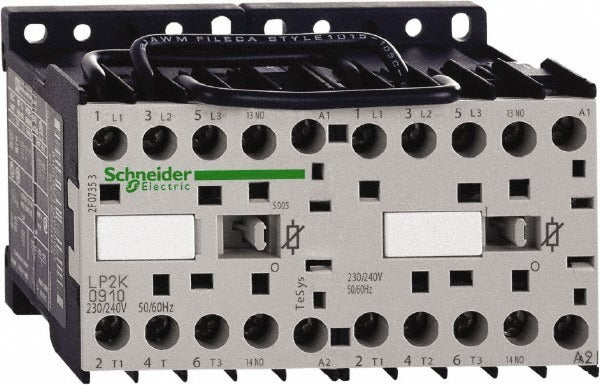

Schneider Electric LP2K0610BD Iec Contactor 3P 6A 24VDC

Product Description

The SCHNEIDER ELECTRIC LP2K0610BD is a 3-pole IEC contactor rated at 6 amps at 440 volts AC with a 24-volt DC coil. It is designed for reversible motor control applications in industrial and commercial electrical systems. The contactor features a normally open (NO) auxiliary contact configuration and is built to IEC 60947 and UL Listed standards. Licensed electricians and industrial maintenance technicians install this device as part of motor starter or reversing starter assemblies in panel boards and motor control centers. Its compact form factor fits standard DIN rail or panel enclosures.

The LP2K0610BD is suited for reversible three-phase motor control circuits in light industrial, commercial HVAC, and process automation applications. It operates on a 24 VDC control voltage, making it compatible with low-voltage PLC outputs and standard control transformer secondary circuits. The reversible configuration supports forward-and-reverse motor operation without additional interlock contactors. Typical installations include pump controls, conveyor systems, and fan motor starters where directional motor control is required.

Key Features

• 3-pole design rated at 6 amps at 440 volts AC for three-phase motor load switching
• 24 VDC coil voltage compatible with PLC and low-voltage control circuits
• Reversible configuration supports forward and reverse motor operation
• Normally open (NO) auxiliary contact included for control circuit feedback or interlocking
• Meets IEC 60947, UL Listed, CSA, RoHS, VDE 0660, BS 5424, and NF C 63-110 standards
• Compact body at 2.3 inches height, 3.6 inches length, and 2.5 inches width

Compatibility

Designed as an OEM-style replacement IEC contactor for reversible 3-pole motor starter assemblies in industrial and commercial electrical control panels where a 24 VDC coil and NO auxiliary contact configuration are required.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the panel or motor control center before installing or replacing this contactor. Verify that the control circuit voltage matches the 24 VDC coil rating before energizing. In reversing applications, confirm that mechanical and electrical interlocking between forward and reverse contactors is properly configured before commissioning.
