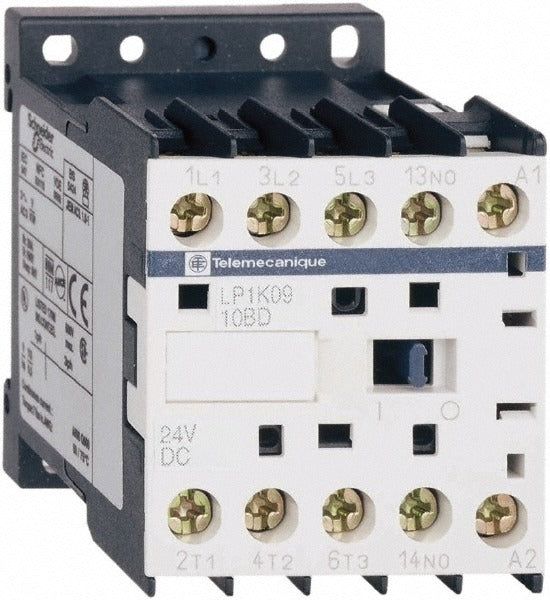

Schneider Electric LP1K0910BD Iec Contactor 3 Pole 24VDC

Product Description

The SCHNEIDER ELECTRIC LP1K0910BD is a 3-pole IEC contactor designed for non-reversible motor control and load switching applications. It operates on a 24 VDC coil voltage and features a normally open (NO) auxiliary contact configuration. Rated to IEC 60947 and UL Listed, this contactor is built for reliable performance in industrial and commercial control panels. Licensed electricians and control panel builders install this device to switch three-phase or single-phase loads under the command of a low-voltage DC control signal. It weighs 0.49 pounds and has an overall footprint of 45.00 mm wide by 57.00 mm deep by 58.00 mm tall.

This contactor is suited for use in motor starters, machine control circuits, and power distribution panels where a non-reversible switching configuration is required. Its compact IEC form factor makes it appropriate for Din-rail or panel-mount assemblies in both commercial building automation and light industrial machinery. Applications include conveyor drives, pump motor control, compressor circuits, and HVAC fan motor control where a 24 VDC control bus is present. The normally open contact arrangement means the load circuit is open when the coil is de-energized, which is standard practice for fail-safe motor control design.

Key Features

• 3-pole, non-reversible configuration for straightforward motor and load switching
• 24 VDC coil voltage compatible with low-voltage DC control circuits
• Normally open (NO) auxiliary contact configuration
• UL Listed and IEC 60947 rated for use in North American and international panel builds
• RoHS compliant construction
• Compact IEC form factor: 45.00 mm wide, 57.00 mm deep, 58.00 mm tall

Compatibility

Designed as an OEM-style IEC contactor replacement for 3-pole, non-reversible motor control applications requiring a 24 VDC coil. Suitable for panel builds and control systems conforming to IEC 60947, UL, CSA, VDE 0660, BS 5424, and NF C 63-110 standards.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before removing or installing the contactor. Verify coil voltage at the control circuit terminals matches the 24 VDC rating of this device before energizing. Confirm all line and load terminal connections are secure and torqued to panel or terminal block manufacturer specifications before restoring power.
