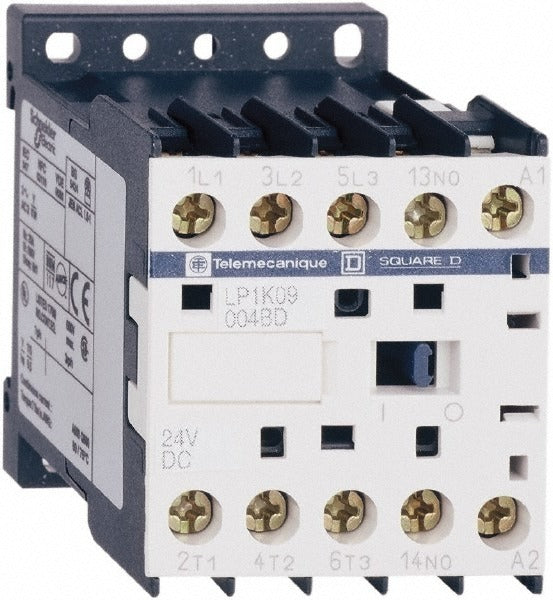

Schneider Electric LP1K09008BD Iec Contactor 4 Pole 24VDC

Product Description

The SCHNEIDER ELECTRIC LP1K09008BD is a 4-pole, non-reversible IEC contactor with a 24V DC coil, designed for switching and controlling electrical loads in industrial and commercial control panel applications. Operating on a 24 VDC coil voltage, this contactor provides reliable load switching across four poles without reversing capability. It measures 2.5 inches in height, 2.8 inches in width, and 1.8 inches in length, making it a compact fit for tight enclosures. Licensed electricians and control panel builders typically specify this device for motor control, lighting, and load-switching circuits where IEC-standard hardware is required.

This contactor is suited for commercial and industrial installations where IEC 60947-compliant switching devices are specified. Typical applications include motor starters, HVAC packaged unit controls, pump control panels, and other 4-pole load circuits requiring a compact DIN-rail or panel-mount contactor with a low-voltage DC coil. Its non-reversible configuration makes it appropriate for single-direction motor loads and general-purpose switching tasks.

Key Features

• 4-pole, non-reversible configuration for single-direction load control
• 24V DC coil voltage suits low-voltage control circuit architectures
• Compact footprint at 2.5 x 2.8 x 1.8 inches fits space-constrained enclosures
• Meets multiple international standards including IEC 60947, UL Listed, CSA, VDE 0660, and RoHS Compliant
• Lightweight at 0.5 pounds for easy panel integration

Compatibility

Designed as an OEM-style replacement or direct-fit IEC contactor for 4-pole, 24V DC coil applications in commercial and industrial control panels where IEC 60947-rated devices are specified.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing the contactor. Verify coil voltage and pole configuration match the circuit design before energizing. Secure all load and control wiring connections firmly to manufacturer torque ranges per the panel documentation.
