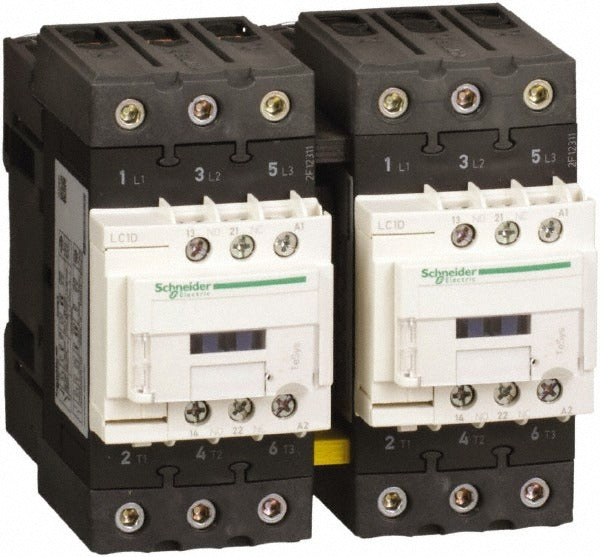

Schneider Electric LC2D50AG7 Iec Reversible Contactor

Product Description

The SCHNEIDER ELECTRIC LC2D50AG7 is a 3-pole IEC reversible contactor designed for motor control and load switching in industrial and commercial electrical systems. It operates on a 120-volt AC coil rated at 50/60 Hz and is rated at 500 amps at 440 volts AC, making it suitable for demanding motor starter applications. The contactor includes both a normally closed (NC) and normally open (NO) auxiliary contact configuration and supports reversible operation, allowing it to control motor direction without additional external switching components. Licensed electricians and industrial control technicians are the primary installers of this device.

The LC2D50AG7 is used in reversible motor starter assemblies, conveyor systems, pump controls, and industrial machinery where directional motor control is required. It fits into control panels following IEC 60947-4-1 standards and is suitable for both new installations and replacement applications in commercial and light industrial environments. Its multi-certification listing supports use across North American and international projects.

Key Features

• Reversible 3-pole configuration supports forward and reverse motor control in a single contactor
• 120-volt AC coil at 50/60 Hz for compatibility with standard North American control circuits
• 500-amp rating at 440 volts AC for high-load motor switching applications
• Integrated NC and NO auxiliary contacts for control circuit feedback and interlocking
• Multi-standard certified: UL 508, CSA C22.2 No. 14, EN/IEC 60947-4-1, EN/IEC 60947-5-1, CCC, GOST
• Compact form factor at 5.5 inches height, 6.4 inches width, and 7.8 inches depth

Compatibility

Designed as an OEM-style IEC reversible contactor replacement for 3-pole motor starter applications in control panels and industrial equipment meeting IEC 60947-4-1 requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing the contactor. Verify coil voltage matches the control circuit before energizing. Auxiliary contact wiring should be confirmed against the control schematic before restoring power.
