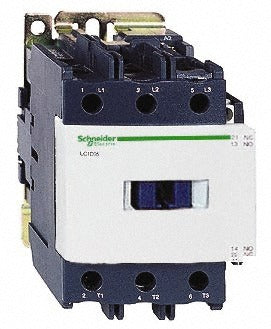

Schneider Electric LC1D80T6 Iec Contactor 80A 480VAC

Product Description

The SCHNEIDER ELECTRIC LC1D80T6 is a 3-pole, non-reversible IEC contactor rated for 80 amps at 440VAC, designed for motor control and power switching applications in industrial and commercial electrical systems. The coil operates at 480VAC, 60 Hz, making it a direct fit for standard North American distribution voltages. An integrated auxiliary contact block provides both a normally closed (NC) and normally open (NO) contact configuration for control circuit feedback. Licensed electricians and industrial maintenance technicians install this device in motor control centers, panel boards, and automated equipment enclosures.

This contactor is suited for non-reversible motor starter applications in commercial and industrial environments where IEC-rated components are specified. Typical installations include HVAC equipment, pump controls, conveyor systems, and compressor panels operating on 480VAC three-phase power. The 80-amp continuous rating supports a broad range of medium-duty motor loads. Its compact footprint allows installation in standard enclosures without requiring additional space provisions.

Key Features

• 80-amp rating at 440VAC for medium-duty motor control loads
• 480VAC coil voltage at 60 Hz matches standard North American supply
• Auxiliary contacts include one NC and one NO for control circuit integration
• Non-reversible design simplifies panel layout for single-direction motor applications
• Certified to multiple international standards including UL 508, CSA C22.2 No. 14, EN/IEC 60947-4-1, and RoHS Compliant

Compatibility

Designed as an OEM-style IEC contactor replacement for 3-pole, 80-amp motor control applications requiring a 480VAC coil in industrial and commercial electrical systems.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the panel or motor control center before removing or installing the contactor. Verify coil voltage and pole rating against the existing circuit before wiring. Do not exceed the rated amperage or apply reversing duty without a reversing-rated contactor assembly.
