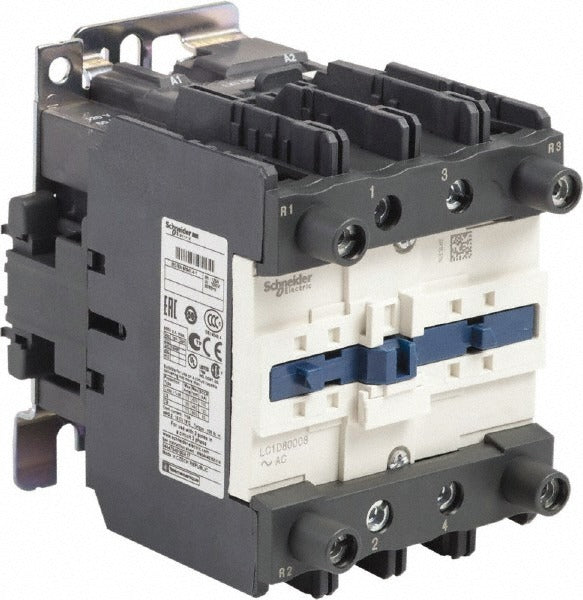

Schneider Electric LC1D80008G6 Iec Contactor 4 Pole 125A

Product Description

The SCHNEIDER ELECTRIC LC1D80008G6 is a 4-pole, non-reversible IEC contactor rated at 125 amps at 440VAC, designed for industrial and commercial power switching applications. The coil operates on 120VAC at 60 Hz, making it compatible with standard North American control circuits. This contactor is built to IEC and UL standards and is intended for use by licensed electricians and industrial maintenance technicians who need a reliable, code-compliant switching device for motor control, load management, or distribution panel applications. Its multi-standard certification set — including UL Listed, CSA, and RoHS Compliant — supports use across a wide range of regulated environments.

The LC1D80008G6 is suited for installation in motor control centers, industrial control panels, and heavy commercial electrical systems where 4-pole switching is required. Its non-reversible action makes it appropriate for single-direction motor loads and resistive or capacitive load circuits. With an overall footprint of 5 inches wide, 4.4 inches deep, and 5 inches tall (per package dimension references), this contactor fits standard DIN-rail and panel-mount enclosures used in industrial settings.

Key Features

• 4-pole, non-reversible configuration for single-direction load switching
• 125A rating at 440VAC for heavy-duty motor and load applications
• 120VAC coil at 60 Hz integrates directly with standard North American control voltage circuits
• Multi-standard certified: UL Listed, UL 508, CSA, CSA C22.2 No. 14, EN/IEC 60947-4-1, EN/IEC 60947-5-1, CCC, DNV, GL, GOST, LROS, RINA, Bureau Veritas, RoHS Compliant
• Compact panel-mount form factor suitable for motor control centers and industrial enclosures

Compatibility

Designed as an OEM-style IEC contactor replacement for 4-pole, non-reversible motor control and load-switching applications in industrial and heavy commercial electrical systems.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the circuit per LOTO procedures before mounting or wiring the contactor. Verify coil voltage and pole ampacity against the load requirements before energizing. Do not exceed the rated amperage of 125A at 440VAC for the installed circuit.
