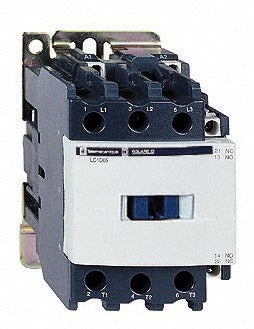

Schneider Electric LC1D65F7 Iec Contactor 3 Pole 110V Ac

Product Description

The SCHNEIDER ELECTRIC LC1D65F7 is a 3-pole, non-reversible IEC contactor designed for motor control and power switching applications in industrial and commercial electrical systems. It operates on a 110V AC coil voltage at 50/60 Hz and includes one normally closed (NC) and one normally open (NO) auxiliary contact configuration. A licensed electrician or industrial maintenance technician installs this contactor in motor control centers, panel boards, and machine control enclosures. The unit measures 5.0 inches in height, 2.95 inches in width, and 4.69 inches in depth, and weighs 3.18 pounds.

This contactor is suited for non-reversible motor starter applications in commercial and industrial settings. It is commonly installed in pump control panels, HVAC equipment, compressor starters, and conveyor systems where reliable 3-pole switching at 110V AC is required. The included NC and NO auxiliary contacts support control circuit interlocking and status signaling without additional add-on blocks. It is appropriate for both 50 Hz and 60 Hz power systems, making it usable in domestic and international equipment configurations.

Key Features

• 3-pole, non-reversible configuration for straightforward motor starting and power switching
• 110V AC coil voltage, compatible with both 50 Hz and 60 Hz systems
• Integrated NC and NO auxiliary contacts for control circuit logic and status indication
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, EN/IEC 60947-4-1, and RoHS Compliant
• Compact footprint suitable for panel installations with limited space
• Certified by Bureau Veritas, CCC, CSA, DNV, GL, GOST, LROS, and RINA for broad application compliance

Compatibility

Designed as an OEM-style replacement contactor for 3-pole, non-reversible IEC motor control applications operating on 110V AC coil voltage at 50/60 Hz.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the full panel or control circuit before removing or installing this contactor. Verify coil voltage and auxiliary contact configuration against the existing control schematic before wiring. Do not exceed the contactor rated load when sizing for motor or resistive applications.
