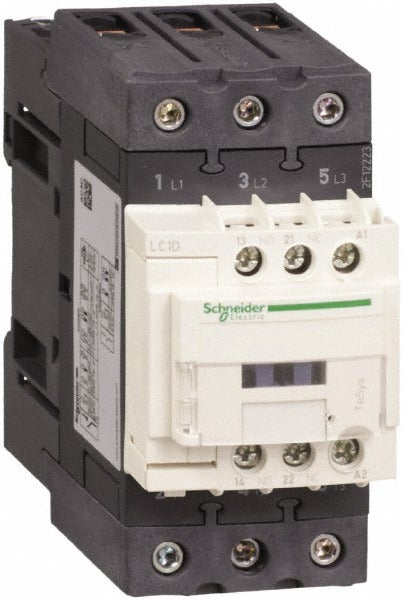

Schneider Electric LC1D65AM7 Iec Contactor 65A 220V

Product Description

The SCHNEIDER ELECTRIC LC1D65AM7 is a 3-pole IEC-rated contactor designed for motor control and power switching applications in industrial and commercial electrical systems. It operates on a 220V AC coil at 50/60 Hz and carries a current rating of 65 amps at 440V AC. The contactor includes both a normally closed (NC) and normally open (NO) auxiliary contact configuration, making it suitable for control circuit interlocking and status signaling. Non-reversible in action, the LC1D65AM7 is installed by licensed electricians and industrial maintenance technicians in motor control centers, panel boards, and automation enclosures.

This contactor is suited for three-phase load switching in residential, commercial, and light industrial settings. Typical applications include motor starters, HVAC compressor control circuits, pump control panels, and industrial machinery. It is rated for continuous duty and meets a broad set of international standards, making it appropriate for both domestic and export installations. The included NC and NO auxiliary contacts support interlock wiring and feedback signaling without requiring add-on contact blocks in basic configurations.

Key Features

• 3-pole configuration handles three-phase load switching up to 65 amps at 440V AC
• 220V AC coil voltage rated for both 50 Hz and 60 Hz power systems
• Integrated NC and NO auxiliary contacts for control circuit use
• Non-reversible design simplifies panel layout for single-direction motor loads
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-4-1, and EN/IEC 60947-5-1 among other standards
• RoHS compliant construction

Compatibility

Designed as an IEC-style power contactor for use in three-phase motor control and switching applications where a 220V AC coil and 65A load rating are required.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and any applicable local codes. De-energize and lockout/tagout the panel or motor control center before mounting or wiring the contactor. Verify coil voltage matches the control circuit supply before energizing. Auxiliary contact wiring should be routed and terminated according to the control schematic to avoid miswiring of interlock or status circuits.
