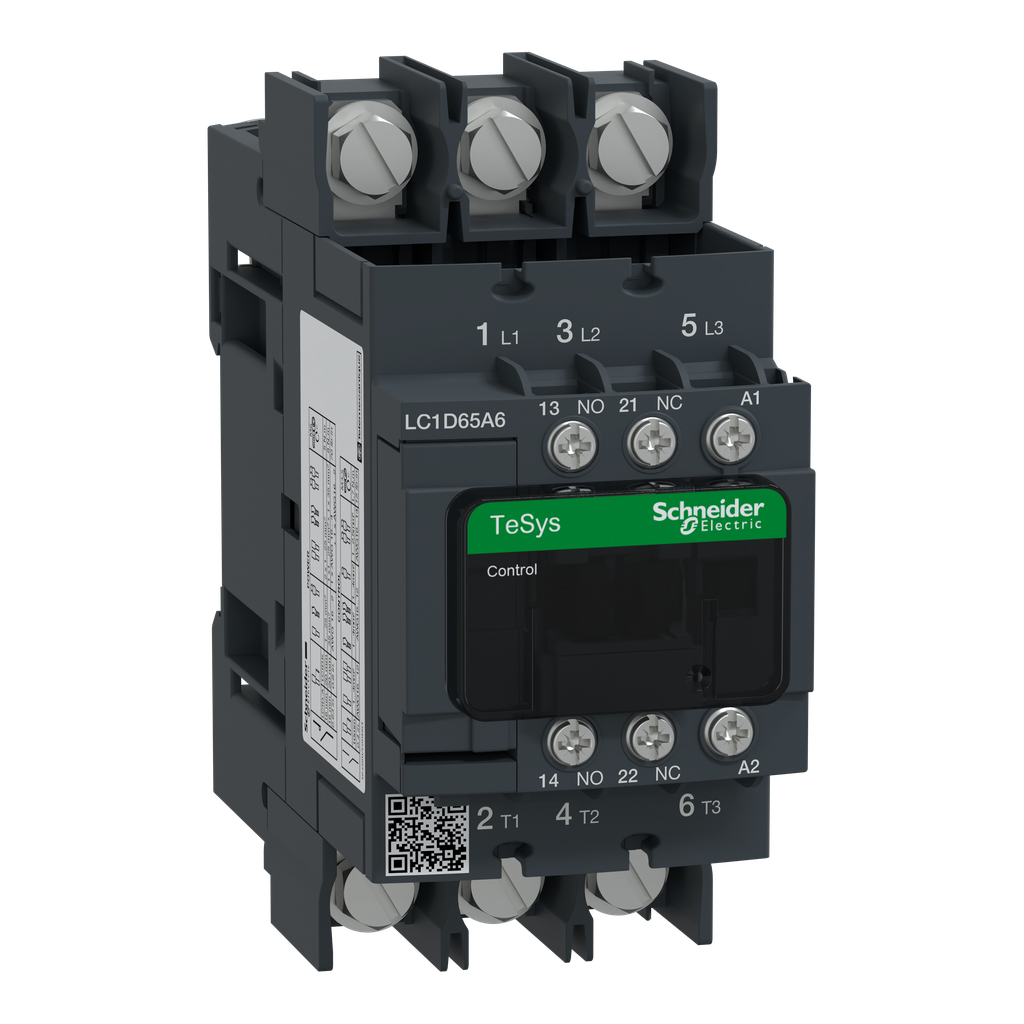

Schneider Electric LC1D65A6F7 SQUARED IEC Contactor T

Product Description

The Schneider Electric LC1D65A6F7 is a TeSys D IEC contactor designed for seamless integration within control systems. This contactor is suitable for creating motor starters for various applications. The LC1D65A6F7 supports inductive motor applications up to sixty-five full-load amps and resistive loads up to two hundred amps.

• Rated for 20HP at 200 to 208VAC, 20HP at 240VAC, 40HP at 480VAC, and 50HP at 600VAC.
• Includes one normally open and one normally closed auxiliary contact.
• Complies with multiple international standards, including UL and CSA.

Product Highlights

This contactor comes equipped with a coil rated for 110VAC, 50/60Hz. It has an extensive range of compatible accessories, which makes it ideal for various applications. The contactor measures four point eight inches tall by two point seventeen inches wide and four point seventy-two inches deep, with a weight of one point nine pounds.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Voltage: 300 Volt
• Depth: 4.72 inches
• Width: 2.17 inches
• Height: 4.80 inches
• Weight: 1.90 lbs
• Contact Configuration: 1 NO + 1 NC, 3 NO
• Operating Cycles: 3600 cyc/h at 140 F (60 C)
• Certifications: CCC, CSA, GOST, UL
