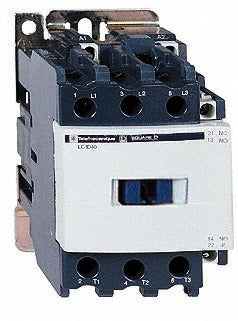

Schneider Electric LC1D40T6 Iec Contactor 3 Pole 480V

Product Description

The SCHNEIDER ELECTRIC LC1D40T6 is a 3-pole, non-reversible IEC contactor rated for 480 VAC at 60 Hz coil voltage, designed for motor control and load-switching applications in industrial and commercial electrical systems. It includes an auxiliary contact configuration of one normally closed (NC) and one normally open (NO) contact, providing built-in signaling and interlocking capability without additional add-on blocks. Licensed electricians and industrial controls technicians install this contactor in motor control centers, control panels, and machine control enclosures where IEC-standard components are specified. The unit carries multiple international certifications, making it suitable for projects requiring UL Listed, CSA, CCC, or marine-rated components.

This contactor is suited for use in residential, commercial, and light industrial motor control applications where a 480 VAC coil signal is available. Typical installations include HVAC compressor contactors, pump motor starters, conveyor drive panels, and other three-phase or single-phase load-switching circuits. The built-in NC and NO auxiliary contacts support control circuit feedback, pilot light indication, or interlocking logic without additional wiring accessories. Its compact footprint makes it a practical fit for space-constrained panel builds.

Key Features

• 3-pole configuration for three-phase or multi-phase load switching
• 480 VAC coil voltage at 60 Hz for direct line-voltage control circuits
• Non-reversible action — suitable for single-direction motor or load control
• Integrated NC and NO auxiliary contacts for signaling, feedback, or interlocking
• Meets IEC 60947-4-1 and IEC 60947-5-1 standards with UL 508 and CSA listings
• Multi-agency certified including Bureau Veritas, DNV, GL, GOST, LROS, RINA, and RoHS Compliant for international project requirements

Compatibility

Designed as an OEM-style IEC contactor for use in motor control and load-switching panels requiring a 3-pole, non-reversible contactor with a 480 VAC coil. No specific compatible model numbers were provided in the available product data.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and any applicable local codes. De-energize and lock out the panel or control circuit before mounting, wiring, or replacing the contactor. Verify coil voltage matches the control circuit supply — this unit requires 480 VAC at 60 Hz at the coil terminals. Confirm load-side wire sizing and terminal torque values against the panel schedule and manufacturer documentation before energizing.
