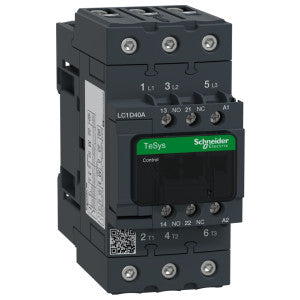

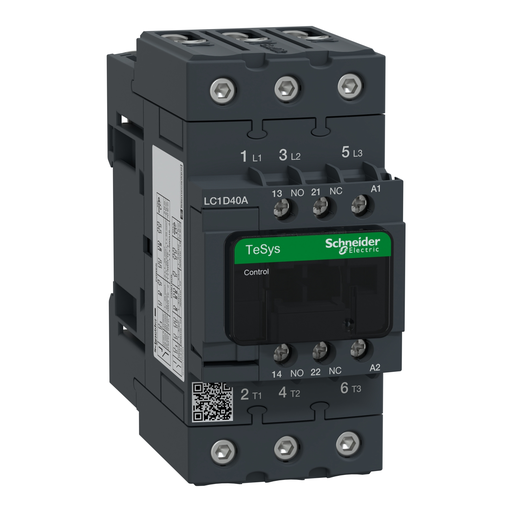

Schneider Electric LC1D40AB7 Contactor 24Vac Coil 3 Pole 40 Amps

Product Description

The Schneider Electric LC1D40AB7 is an electrical contactor designed for heavy-duty applications. This product operates on a twenty-four volt alternating current coil and features three poles with a rating of forty amps. It is ideal for controlling motors and resistive loads.

• Non-reversing contactor with screw terminals
• Includes Everlink power connection
• One normally closed and one normally open auxiliary contact

Product Highlights

This reliable contactor is suitable for various applications within commercial and industrial settings. It provides effective motor control, ensuring durability and safety in operations.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LC1D40AB7

Technical Specifications

• Control Circuit Type: AC 50/60 Hz standard
• Control Circuit Voltage: 24 V AC 50/60 Hz
• Maximum Horse Power Rating: 5 hp at 230/240 V AC
• Rated Operational Voltage: up to 690 V AC
• Number of Poles: 3
• Dimensions: Four point eight inches x two point seventeen inches x four point seventy-two inches
• Weight: Two point zero five pounds
• Electrical Durability: 1.4 million cycles
• IP Rating: IP20 front face
