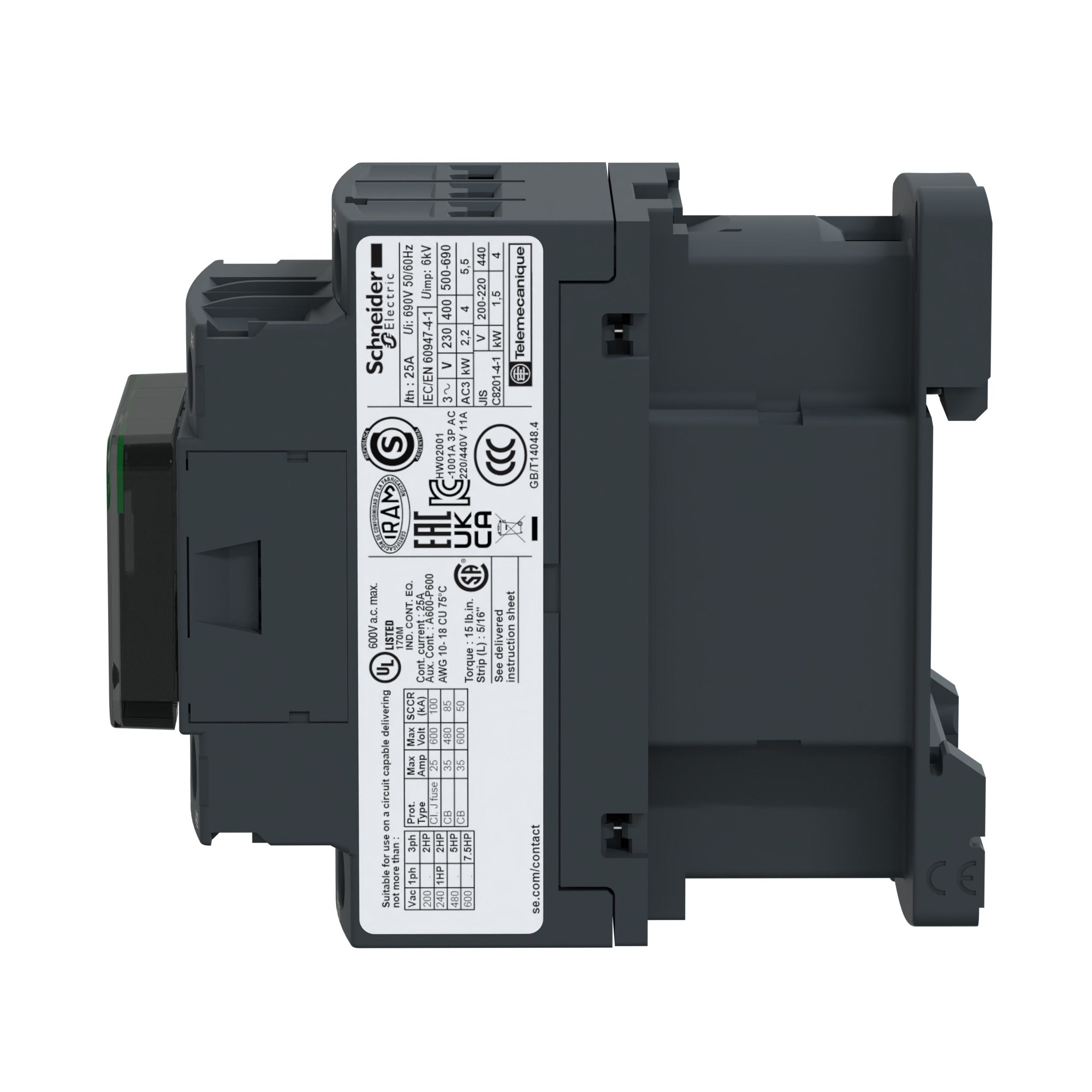

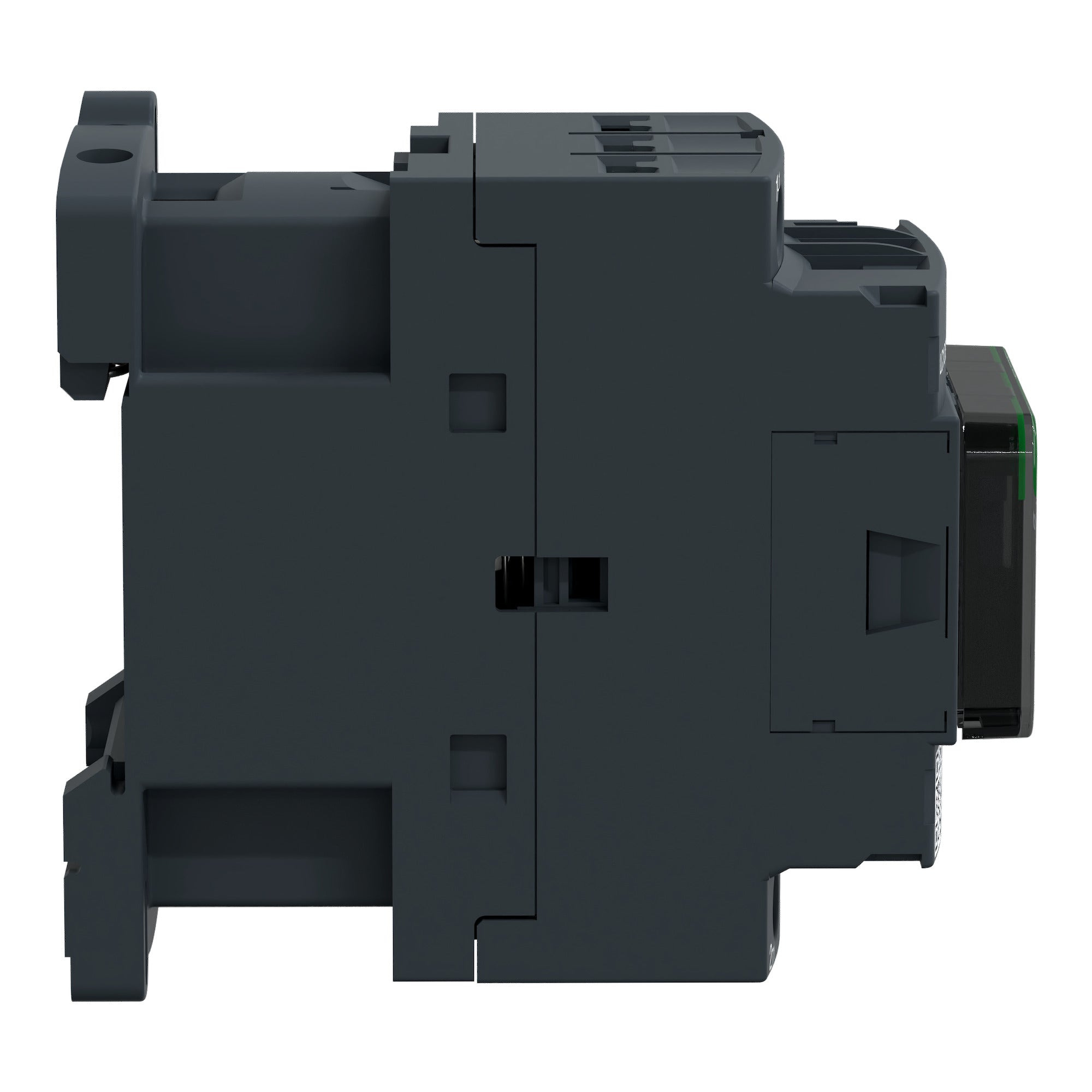

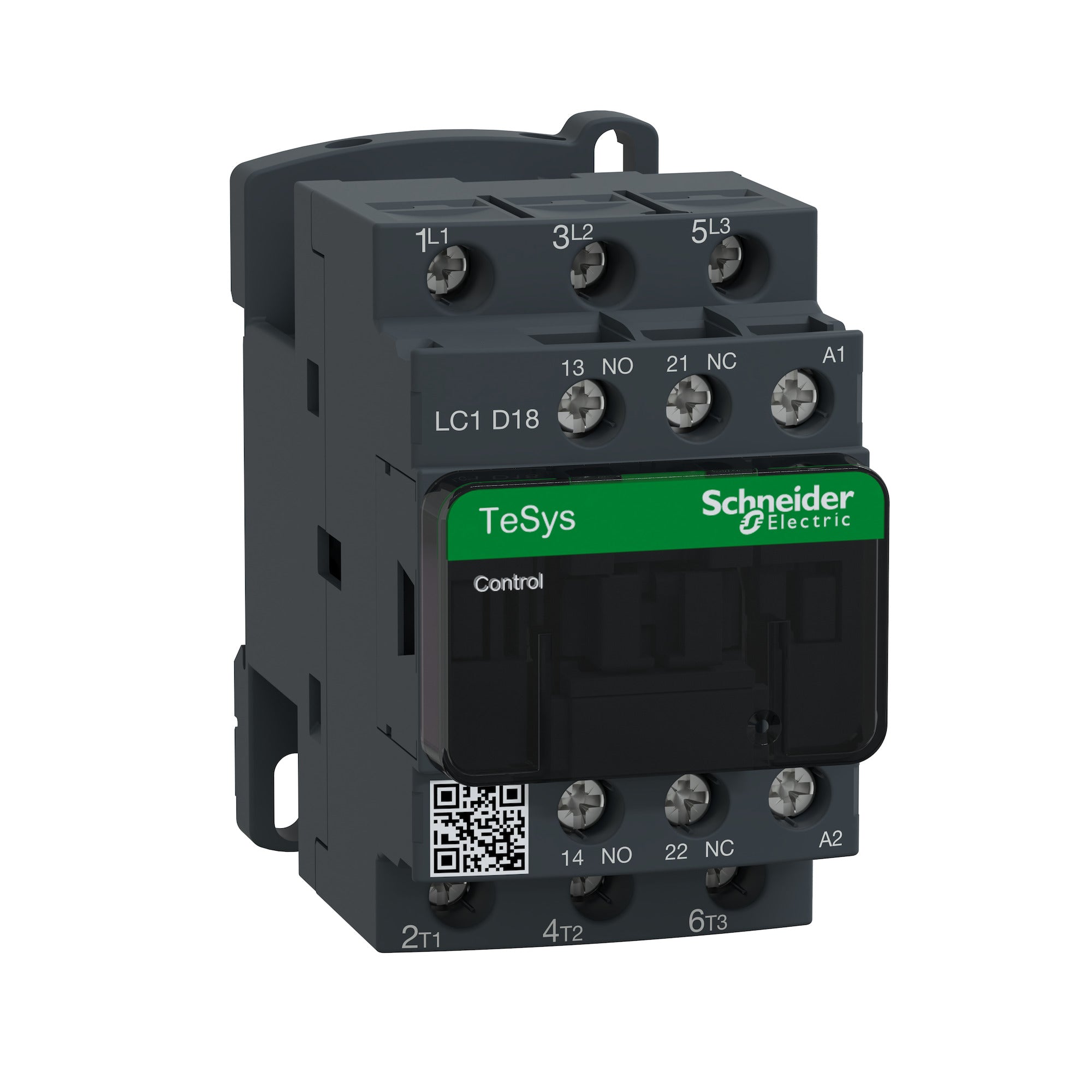

Schneider Electric LC1D18T7 TeSys D IEC Contactor 18A 480VAC

Product Description

The Schneider Electric LC1D18T7 TeSys D IEC Contactor is engineered for high-performance motor control and reliable operation, suitable for a variety of industrial applications. This 18A, 3-pole contactor features robust construction for durability and longevity in harsh environments.

• Compact design ensures easy integration into control systems.

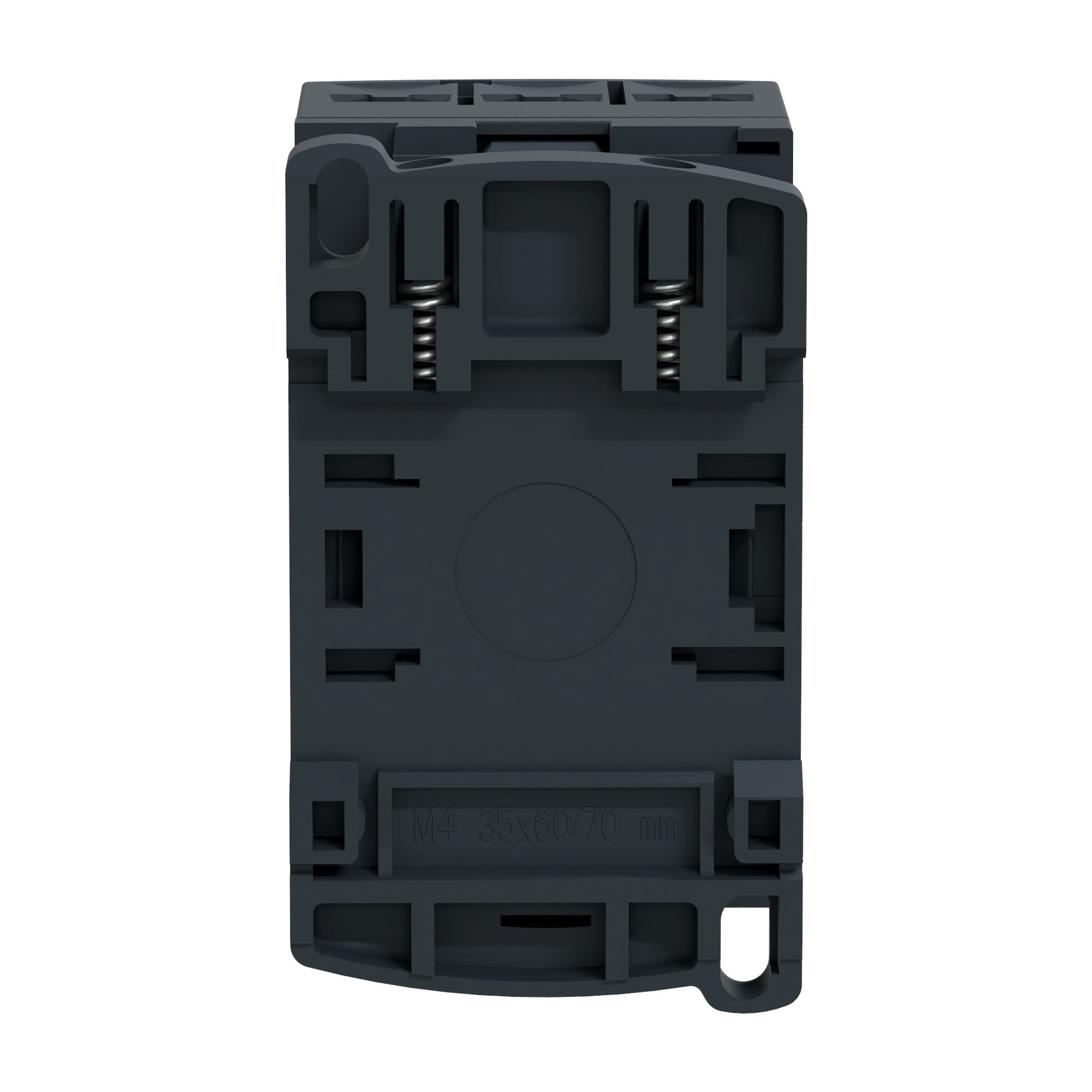

• Mountable on DIN rail or directly to the panel.
• Incorporates built-in auxiliary contacts and mirror-certified NC contact for enhanced functionality.

Product Highlights

This non-reversing contactor is designed to manage up to 18 full-load amps, capable of handling motor applications with ease. It operates with a 480VAC coil and offers a mechanical life of 15 million operations, ensuring reliability and efficiency.

Product Information

Standard Information

• Brand: Schneider Electric
• Mounting Type: Rail or Direct Panel

Technical Specifications

• MPN: LC1D18T7
• Connection Type: Screw Clamp Terminals
• Rated Current: 18A
• Coil Voltage: 480 VAC 50/60 Hz
• Operating Frequency: 25 to 400 Hz
• Contact Configuration: 1 NO + 1 NC; 3 NO
• Dimensions: 3.03 inches height x 1.77 inches width x 3.39 inches depth
• Weight: 0.73 lbs
• Standards: UL, CSA, IEC, CCC, EAC, Marine
