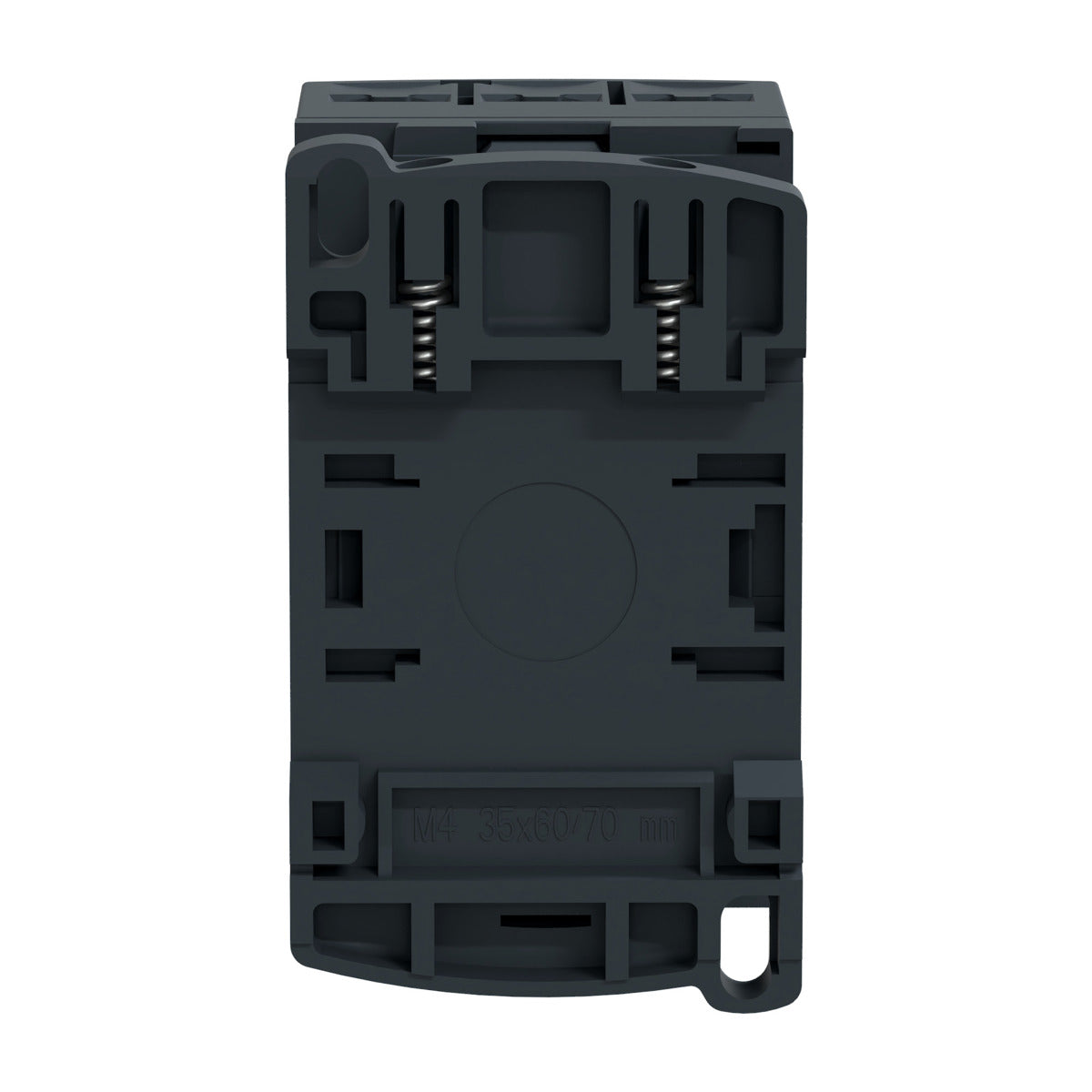

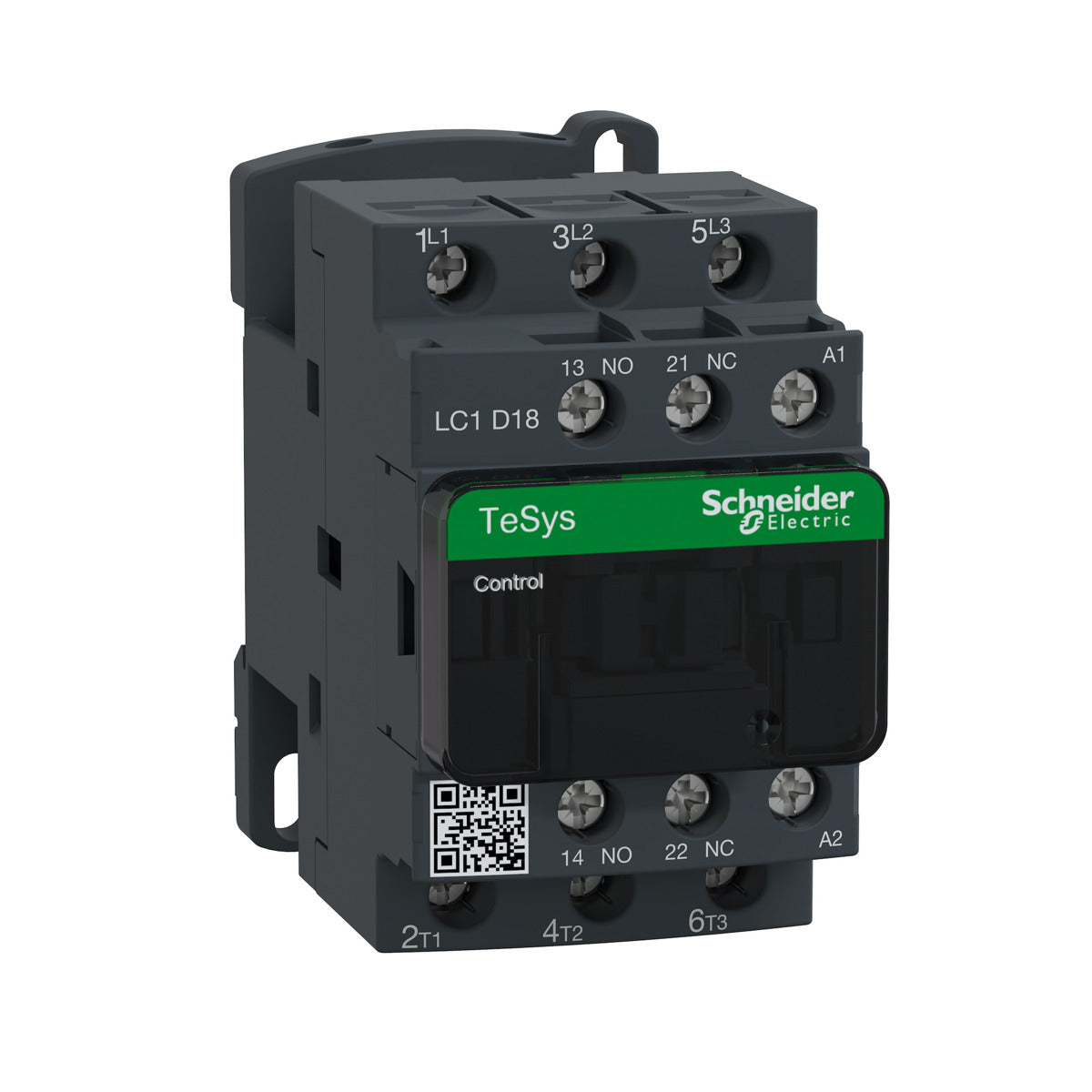

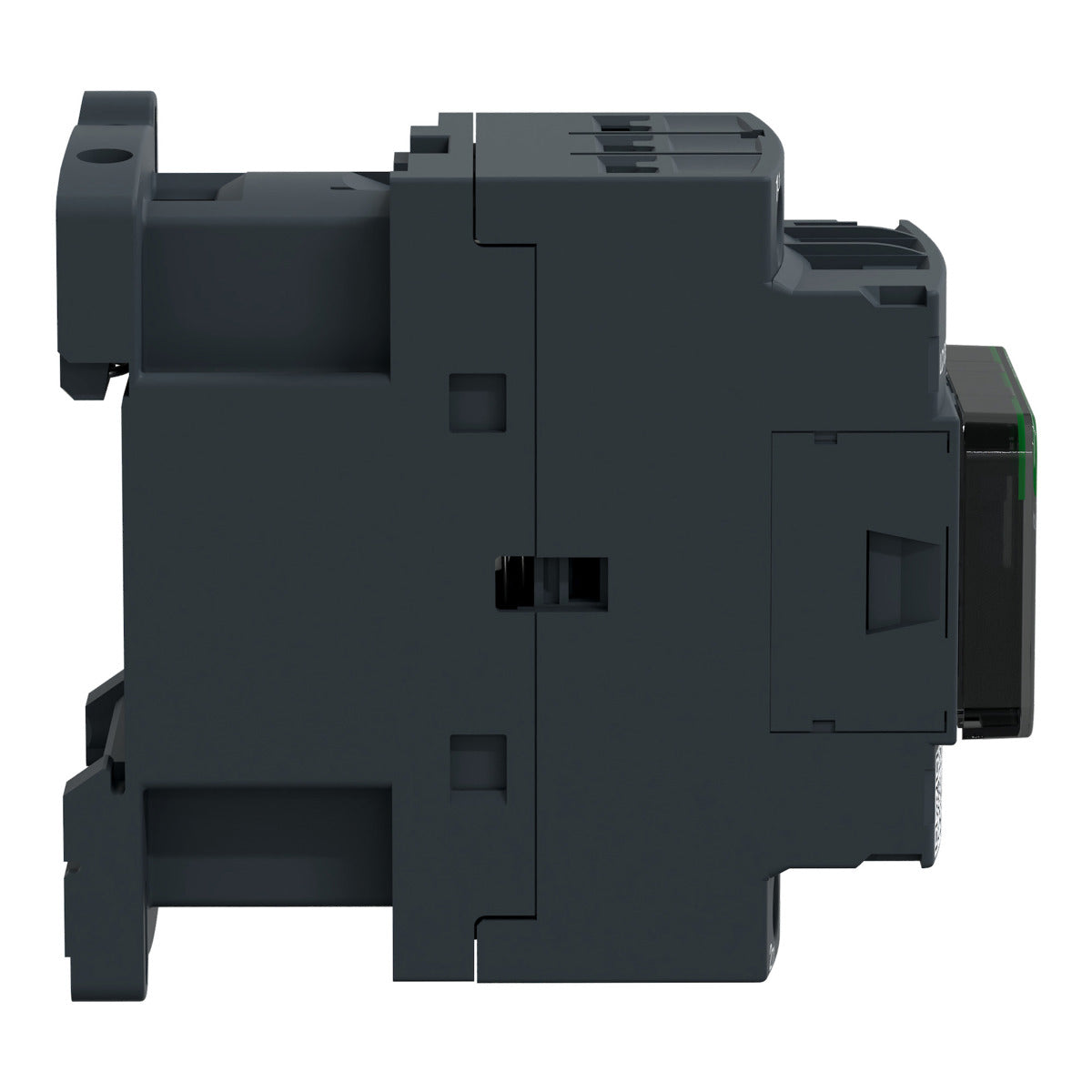

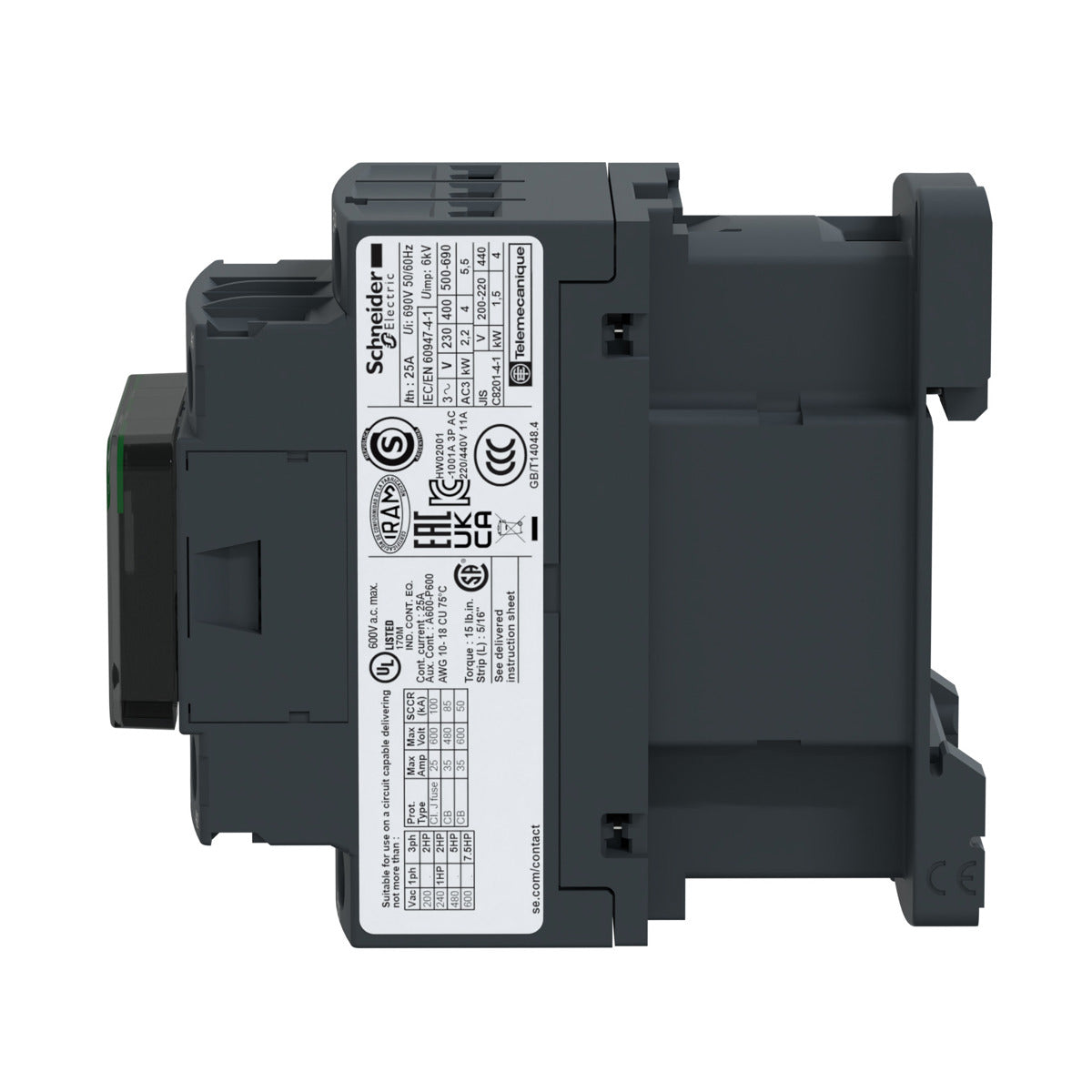

Schneider Electric LC1D18LE7 IEC Contactor 18A 208VAC

Product Description

The Schneider Electric LC1D18LE7 is a robust non-reversing IEC contactor designed to manage motor loads efficiently. Its reliable performance and modular design make it ideal for a wide range of industrial applications.

• Engineered for seamless integration into various control systems.
• Supports multiple contact configurations to accommodate diverse operational needs.
• Constructed with a durable plastic housing encasing copper and silver contacts for enhanced conductivity.

Product Highlights

This contactor offers a high SCCR up to 100kA with specific circuit breakers and is equipped with a 208VAC 50/60Hz coil for optimal performance. It features both a normally open and a normally closed auxiliary contact as standard, certified for quality and safety under multiple standards including UL and CSA.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric
• MPN: LC1D18LE7

Technical Specifications

• Control Voltage: 208 VAC 50/60 Hz
• HP Ratings: Up to 10HP at 480VAC, 15HP at 600VAC
• Mounting Type: DIN rail or panel mount
• Dimensions: Height: 1.77 inches, Width: 1.77 inches, Depth: 3.38 inches
• Certifications: UL, CSA, IEC, CCC, EAC, RoHS/REACh
• Contact Configuration: 1NO+1NC, 3NO
• Operating Cycles: Frequency 25...400Hz
