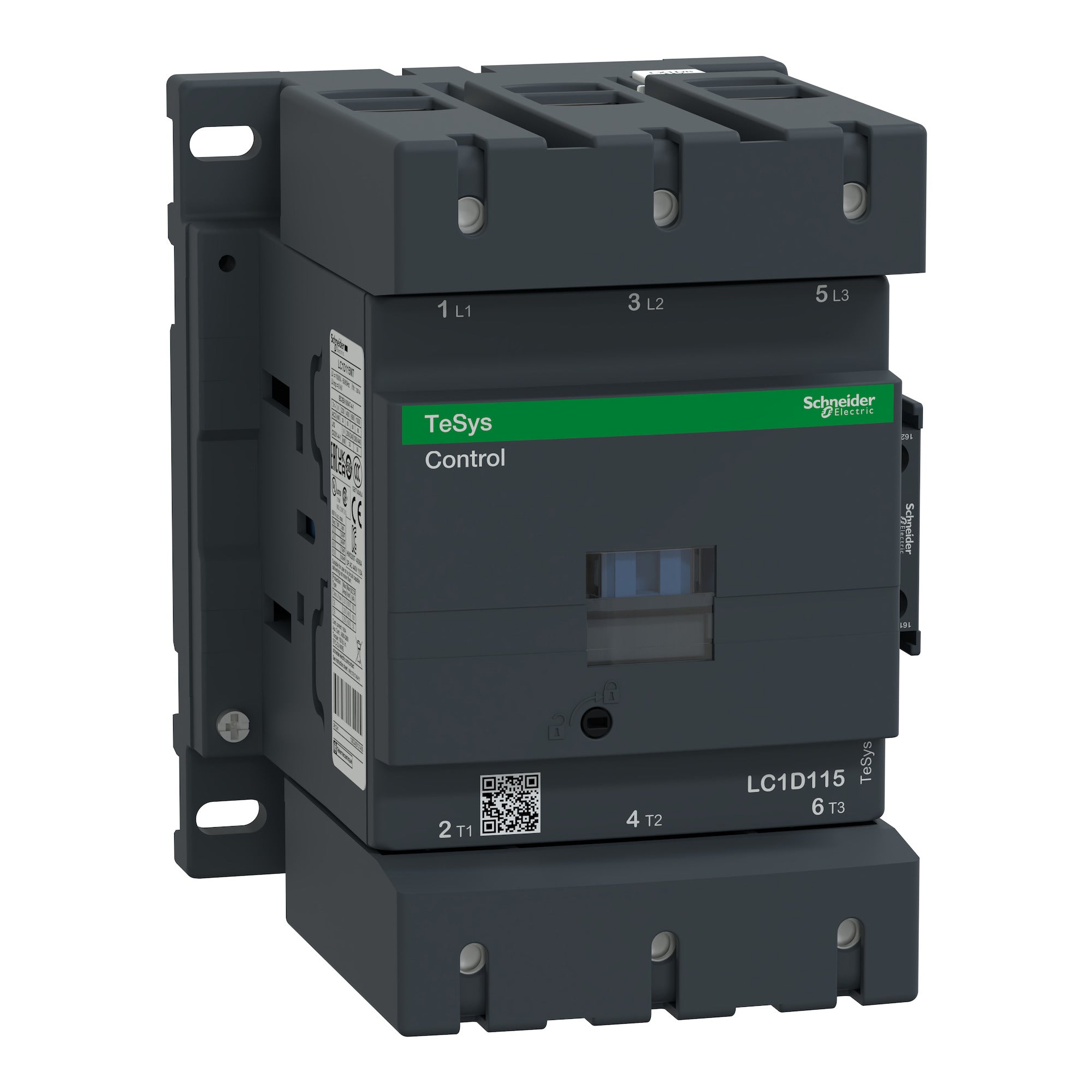

Schneider Electric LC1D115U7 IEC Contactor TeSys Deca 115A 75HP at 480VAC

Product Description

Schneider Electric LC1D115U7 is an IEC contactor designed for reliable use in control systems. This nonreversing contactor is rated for 115A and supports various motor applications up to 75HP at 480VAC. It can manage both the inductive and resistive loads effectively.

• Rated for 30HP at 200 to 208VAC
• Utilizes a coil voltage of 240VAC 50/60Hz
• Built-in peak limiting diode suppressor

Product Highlights

This contactor is ideal for motor starters and features a robust build, capable of being mounted on DIN rail or directly to a panel. It adheres to several safety standards and is compliant with RoHS requirements, making it suitable for diverse applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Part Number: LC1D115U7

Technical Specifications

• Applications: Motor control; resistive load
• Coil Voltage: 240 V AC 50/60 Hz
• Configuration: 1 NO + 1 NC; 3 NO
• Operating Cycles: 25...400 Hz
• Dimensions: 6.22 inches tall, 4.72 inches wide, 5.35 inches deep
• Weight: 5.51 lbs
• Mounting: Rail Plate
• Warranty: 18 months
