Schneider Electric LAD9R1V Square D Horizontal Mount Mechanical Reversing Contactor Kit

Product Description

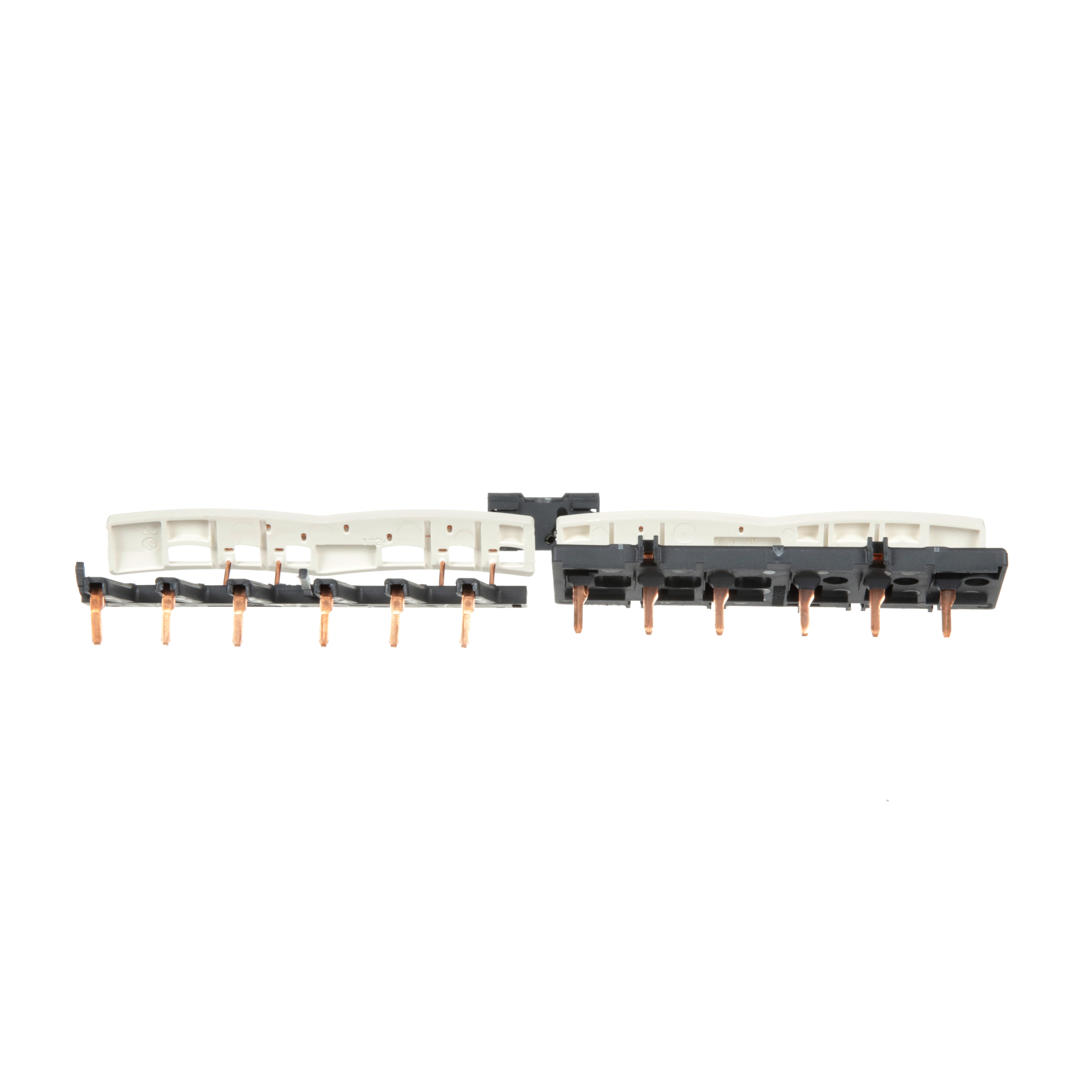

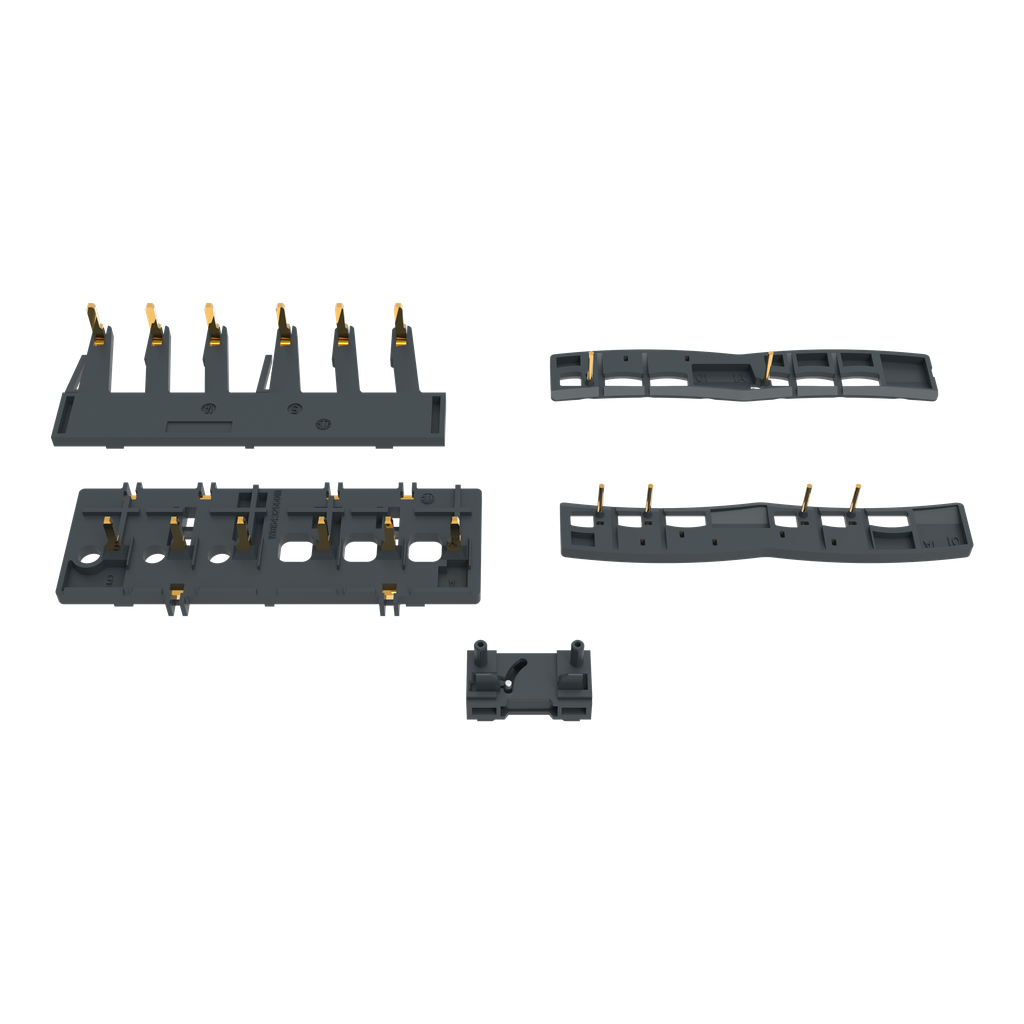

Schneider Electric LAD9R1V is designed for reversing contactor assembly. It is suitable for three-pole contactors including LC1D09 to LC1D38. This kit allows for horizontally mounting two identical contactors, ensuring secure connections through screw clamp terminals.

• Includes a mechanical interlock (LAD9V2) and an electrical interlock (LAD9V1).
• Provides three parallel bars (LAD9V5) and three reverser bars (LAD9V6) for enhanced functionality.
• Meets RoHS and REACh regulations for environmental standards.

Product Highlights

This reversing contactor kit is ideal for applications requiring a reliable interlock mechanism and is perfectly suited for control and automation tasks.

Product Information

Standard Information

• Catalog Number: LAD9R1V
• Manufacturer: Schneider Electric

Technical Specifications

• Weight: 0.10 lb
• Country of Origin: France
• Warranty Length: 18 months
• Operating Temperature: -5C to 55C
• GTIN: 03389110392869
• Contact Configuration: 2 N/C
• Connection Type: Screw Clamp
• Applications: LC1D09; LC1D12; LC1D18; LC1D25; LC1D32; LC1D38
