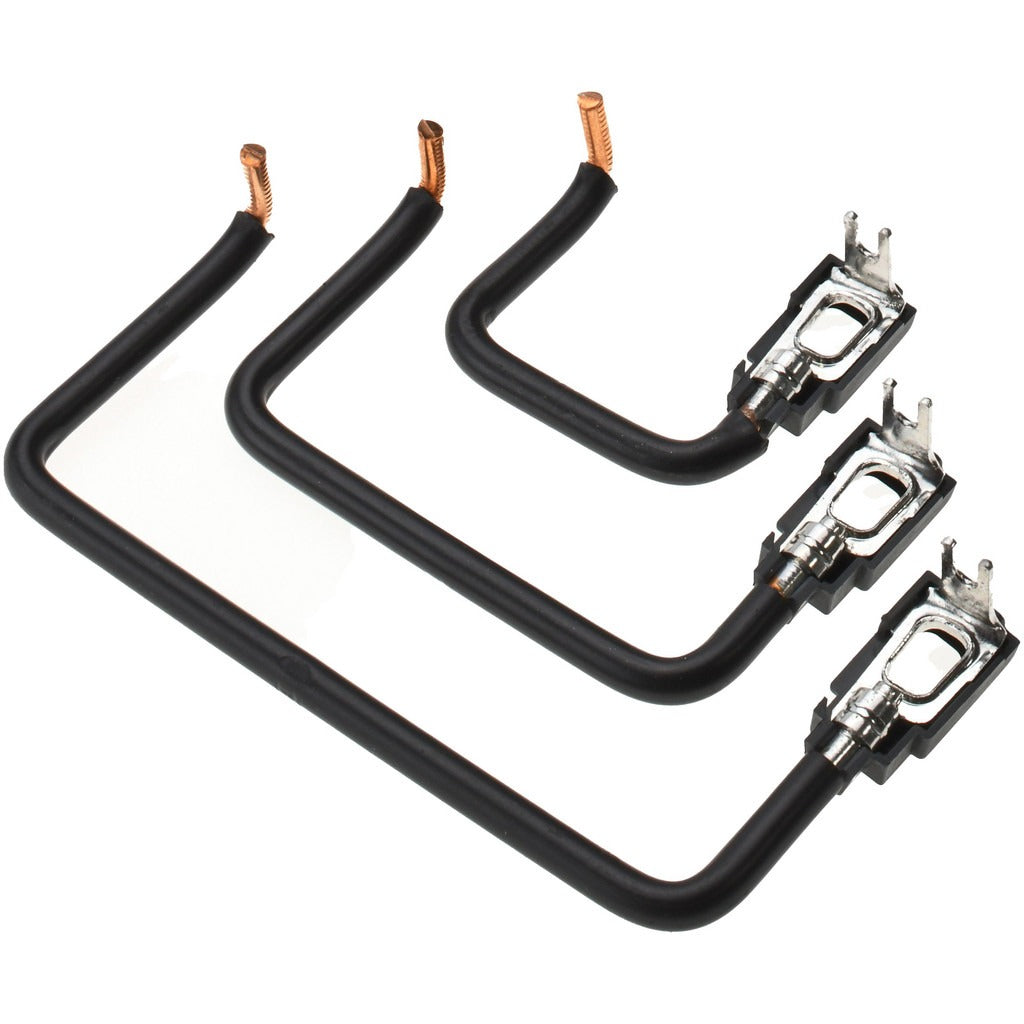

Schneider Electric LA9D6569 Contactor Terminal Block

Product Description

The SCHNEIDER ELECTRIC LA9D6569 is a contactor terminal block set designed as an accessory for TeSys D series contactors. It provides a secure, organized termination point for control and power wiring connections on compatible contactor assemblies. This component is installed by licensed electricians during panel builds, motor control center assembly, or field servicing of industrial control equipment. Key dimensional specs include a height of 3 inches, width of 5.8 inches, and length of 1.5 inches, making it a compact but purpose-built fit for its intended contactor series. The unit ships as a single package and weighs 0.51 pounds.

This terminal block set is intended for use in commercial and industrial electrical installations where TeSys D series contactors handle motor starting, switching, or load control duties. Typical install scenarios include motor control panels, HVAC equipment control panels, and industrial machinery where LC1D40-65 contactors are already in service. It is suited for both new panel builds and replacement service work where the original terminal block has been damaged or must be replaced to restore proper wiring termination.

Key Features

• Designed specifically as a contactor accessory for LC1D40-65 and TeSys D series contactors
• Compact form factor: 3 inches height, 5.8 inches width, 1.5 inches length
• Lightweight at 0.51 pounds for easy handling during panel installation
• Sold as a complete terminal block set in a single package quantity
• UNSPSC Code 39121529 for procurement system compatibility

Compatibility

Designed for use with LC1D40-65 contactors and the TeSys D contactor series as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician following applicable NEC requirements for motor control and industrial control wiring. De-energize and lock out the panel or control circuit before removing or installing any contactor accessory. Verify that the contactor is the correct TeSys D series model before installing this terminal block set. Do not force connections or modify the block to fit non-compatible contactor frames.
