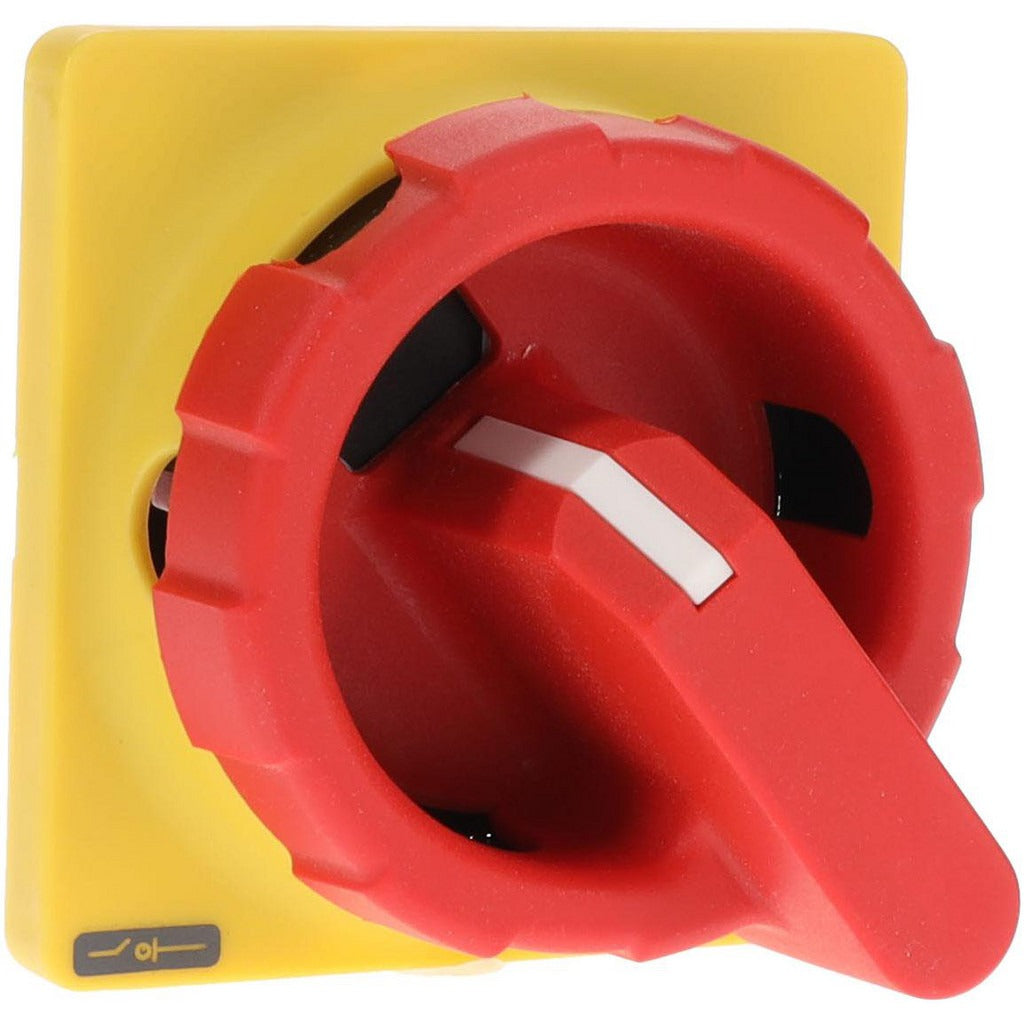

Schneider Electric KCD1YZ Padlockable Handle Disconnect Switch

Product Description

The SCHNEIDER ELECTRIC KCD1YZ is a padlockable handle accessory designed for use with cam-style manual motor control switches and disconnect switches. This handle replacement allows technicians to secure a switch in the open or locked-out position during maintenance or servicing, supporting lockout/tagout (LOTO) compliance requirements. The KCD1YZ measures 3.1 inches in length, 2.5 inches in width, and 2.6 inches in height, and weighs just 0.18 pounds. Electricians and industrial maintenance professionals install this component when a padlockable handle is missing, damaged, or required as part of an approved safety isolation procedure.

This padlockable handle is intended for use with manual motor control switches and disconnect switches in industrial and commercial electrical applications. Typical installation scenarios include motor control centers, machine tool panels, and distribution equipment where positive lockout capability is required by site safety programs or applicable electrical codes. It is packaged individually and sold in single-unit quantities.

Key Features

• Padlockable design supports lockout/tagout (LOTO) isolation procedures
• Compatible with cam-style manual motor control switches and disconnect switches
• Compact form factor: 3.1 x 2.5 x 2.6 inches
• Lightweight at 0.18 pounds for easy handling during installation
• Sold as a single replacement unit

Compatibility

Designed for use with manual motor control switches and disconnect switches as specified by the manufacturer. Confirm switch model compatibility against SCHNEIDER ELECTRIC documentation before ordering.

Installation Notes

Installation should be performed by a qualified electrician. De-energize and verify the absence of voltage on the associated circuit before removing or installing any switch handle components. Follow applicable NEC requirements and site-specific lockout/tagout procedures when working on motor control or disconnect equipment. Do not force the handle into position; verify correct alignment with the switch mechanism before applying any fasteners.
