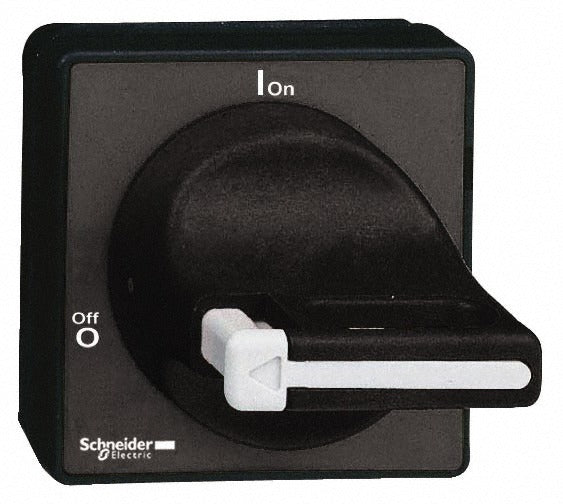

Schneider Electric KAF1PZ Safety Switch Handle Assembly

Product Description

The SCHNEIDER ELECTRIC KAF1PZ is a replacement handle assembly designed for use with safety disconnect switches. It serves as the external operating mechanism that allows a technician to open and close the switch without direct contact with internal live components. This accessory is a direct replacement component for damaged or missing handles on compatible switch enclosures. Licensed electricians and maintenance technicians typically install this part during routine servicing or repair of disconnect switch assemblies in electrical distribution systems.

This handle assembly is suited for use in residential, commercial, and light industrial electrical installations where safety disconnect switches require handle replacement or restoration. It is designed to fit V02, V2, VN12, and VN20 switch models. The part is packaged as a single unit and is a factory-specified replacement accessory for the listed switch families.

Key Features

• Direct replacement handle assembly for compatible Schneider Electric safety switches
• Compact form factor measuring 2.6 inches (H) by 3.1 inches (W) by 2.6 inches (L)
• Lightweight construction at 0.16 pounds
• Restores safe mechanical operation of disconnect switch enclosures
• Single-unit packaging for individual replacement needs

Compatibility

Designed for use with V02 Switch, V2 Switch, VN12, and VN20 Switch models from Schneider Electric.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit at the upstream overcurrent device before servicing the disconnect switch enclosure. Verify that the replacement handle assembly is fully seated and operates the switch mechanism smoothly before restoring power.
