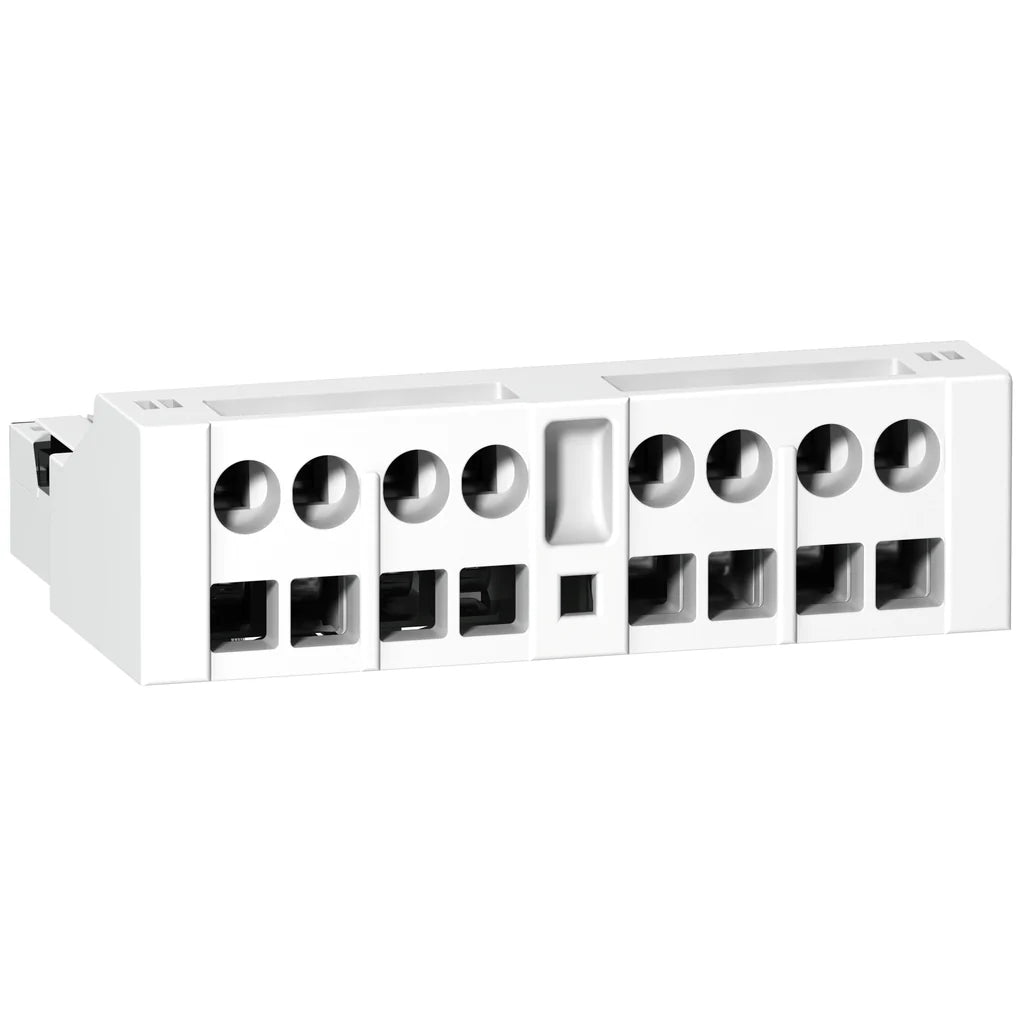

Schneider Electric GVAE203 TeSys Deca - auxili

Product Description

Schneider Electric GVAE203 is an auxiliary contact block designed for motor circuit breakers GV2 and GV3. It features two normally open (2NO) instantaneous auxiliary contacts and operates at a rating of up to two amps at 240 volts AC and one amp at 60 volts DC. The installation is straightforward, as it mounts on the front of the circuit breaker, with connections made using spring terminals. Each unit is sold in lots of ten. This device meets multiple safety standards, including IEC, UL, CSA, CCC, and EAC. It is also compliant with Green Premium (RoHS/REACh).

• Two instantaneous normally open contacts
• Compatible with motor circuit breakers GV2 and GV3
• Rated for operation up to 2A/240V AC and 1A/60V DC

Product Highlights

This auxiliary contact block is ideal for enhancing motor control functions.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider
• Catalog Number: GVAE203

Technical Specifications

• Type: Auxiliary contact block
• Voltage: 240 Volt
• Weight: 0.11 lb
• Depth: 31.5 mm
• Width: 44.5 mm
• Height: 13 mm
• Country of Origin: Czech Republic
• Operating Cycles: 100000 cycles
• Warranty Length: 18 months
